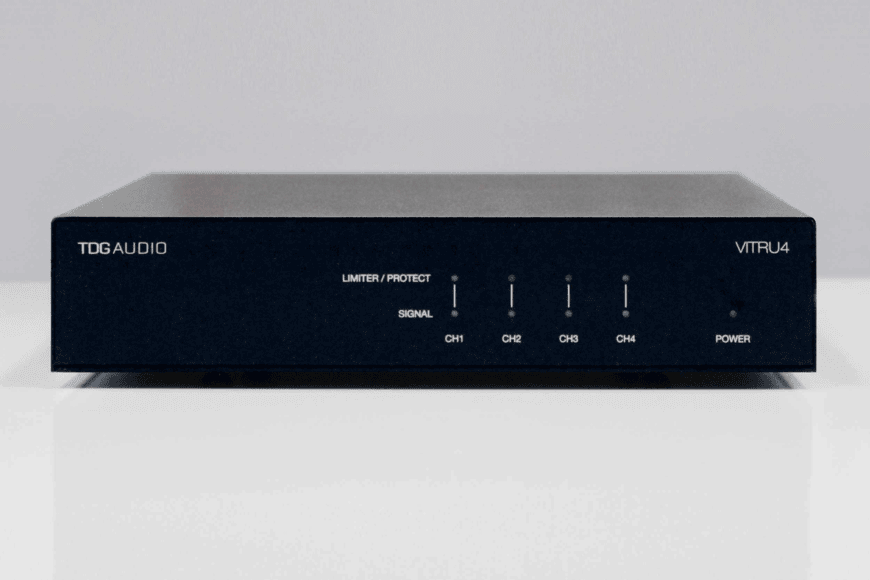

TGD Audio VITRU44 Channel x 120 Watt Amplifier

TDG Audio

A versatile 4-channel amplifier designed for both commercial and residential applications. Offers full DSP configuration, 70/100V support, network control, and quiet active cooling in a compact rack-mountable design.

$1,499

The VITRU4 Amplifier is a highly versatile and efficient audio solution with an impressive power output of 120 watts per channel into 4 ohms, 8 ohms or 70/100v. It features four balanced inputs and comes with RCA adapters, allowing for up to two stereo RCA inputs. Users will appreciate its standby options, including an automatic mode and a 12V trigger for manual control. Advanced control features, with drivers available for Control4 and URC in the TDG resource center, facilitate seamless integration with other systems, while LAN connectivity allows for remote configuration.

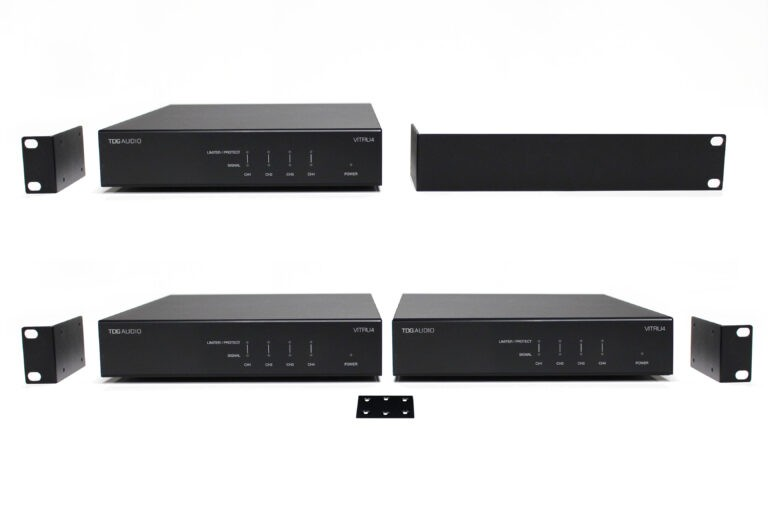

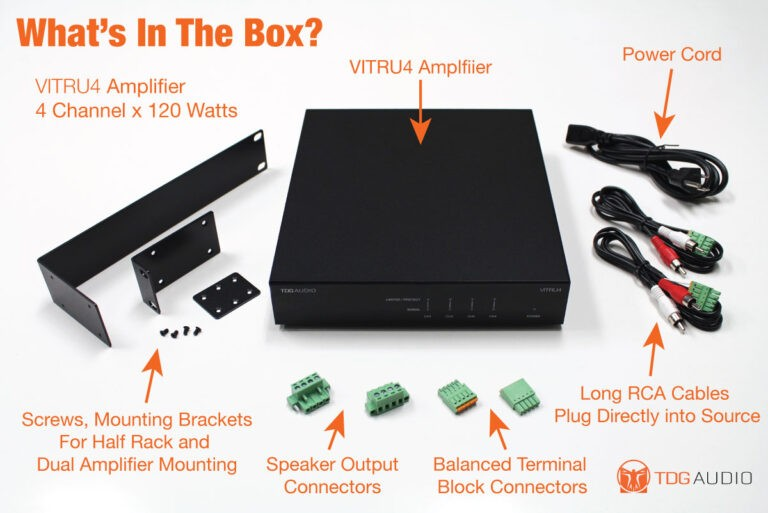

Its configuration interface is user-friendly, enabling fine-tuning of loudspeakers, including maximum power limit, DSP filter, and volume adjustments, as well as input-to-output channel assignment. Designed for convenient installation, the amplifier includes adapters for mounting in a 19″ rack and can accommodate one or two amplifiers per 1U of rack space.

The active cooling system ensures quiet operation, making it ideal for environments where noise reduction is essential. The digital overload protection feature adds to its reliability by preventing overload issues, enhancing operational safety. Users can also select from various presets for loudspeakers, optimizing sound quality in different rooms. Despite its robust features, the VITRU4 Amplifier boasts a compact design, making it a space-efficient choice for any setup.

SKU: VITRU-4 Category:
Weight4800 g
Dimensions220 × 430 × 44 mm
Brands

Specifications:

Power Output: 4x 120 watts into 4Ω / 8Ω / 70V / 100V

DSP Control: Adjustable output via dB settings (0dB = 120W, 3dB = 60W, 6dB = 30W, 9dB = 15W)

Output Configurations:

4x 120W @ 4Ω or 8Ω

2x 240W @ 8Ω (4Ω at user’s risk)

2x 240W @ 70V or 100V

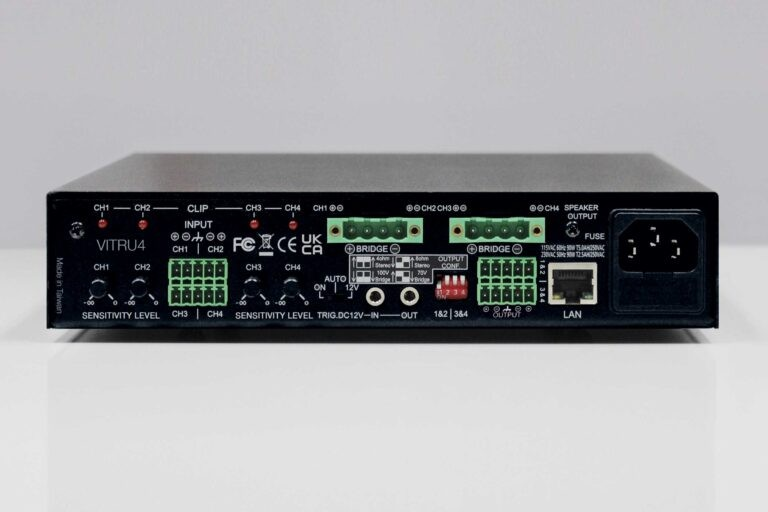

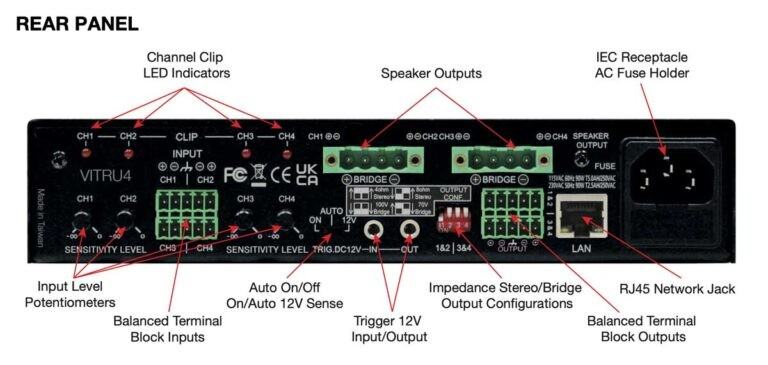

Inputs: 4 balanced inputs with RCA adapter support for 2 stereo RCA

Network Connectivity: LAN for remote configuration

Configuration Interface: DSP filter, volume, max power, channel assignments

Standby Options: Automatic standby or 12V trigger

Control Options: Third-party control via downloadable drivers

Cooling: Actively cooled, quiet operation

Rack Mountable: Fits 19” rack, 1U height (one or two units per space)

Digital Overload Protection

Preset Selection for Loudspeaker Optimization
