Subwoofers, SVS
SVS PB16-Ultra Subwoofer
SVS PB16-Ultra Subwoofer
One Subwoofer to Rule Them All. Introducing the PB16-Ultra.
An unrelenting passion for breathtaking bass performance and engineering perfection guided every aspect of the SVS PB16-Ultra subwoofer?s development. Groundbreaking technology, rigorous design and extreme testing in real-world and laboratory environments allowed SVS to achieve unmatched low-frequency extension and output capabilities all while keeping it amazingly detailed and articulate. The culmination of all SVS design advancements, SVS PB16-Ultra represents an incomparable bass experience. Nothing else comes close.
Price range: $6,799 through $6,999
SVS PB16-Ultra Subwoofer
One Subwoofer to Rule Them All. Introducing the PB16-Ultra.
An unrelenting passion for breathtaking bass performance and engineering perfection guided every aspect of the SVS PB16-Ultra subwoofer?s development. Groundbreaking technology, rigorous design and extreme testing in real-world and laboratory environments allowed SVS to achieve unmatched low-frequency extension and output capabilities all while keeping it amazingly detailed and articulate. The culmination of all SVS design advancements, SVS PB16-Ultra represents an incomparable bass experience. Nothing else comes close.
KEY FEATURES:
- 3 Game-Changing Subwoofer Innovations
- Massive New 16-inch SVS Ultra Driver with Unprecedented 8-inch Edge Wound Voice Coil
- Stunningly Powerful, New Sledge Amplifier with Fully Discrete MOSFET Output
- 1,500 Watts Continuous, 5,000+ Watts Peak Power

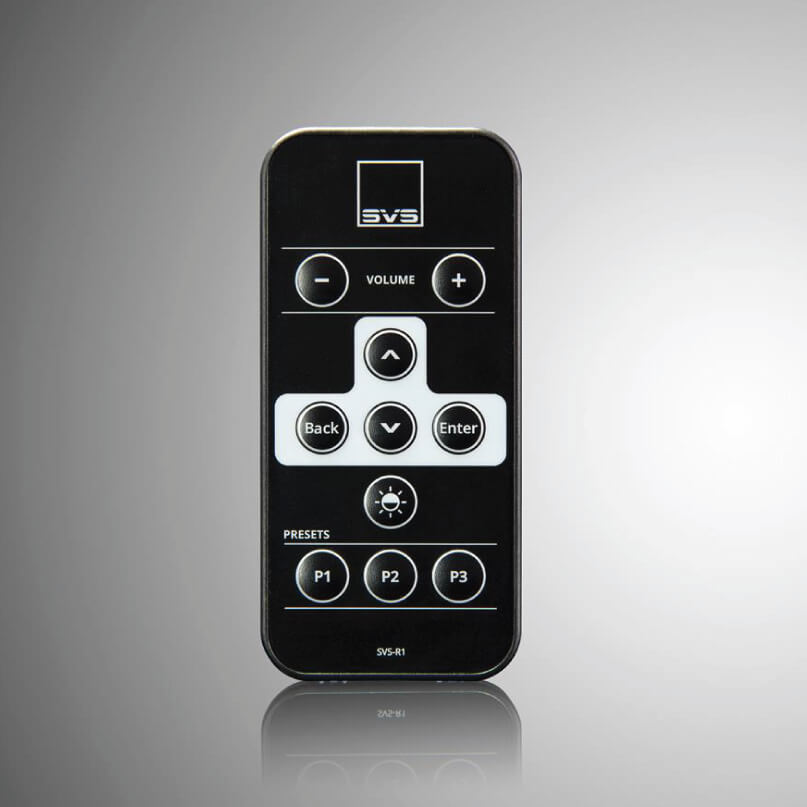

- Innovative New Smartphone App for Subwoofer DSP and Control

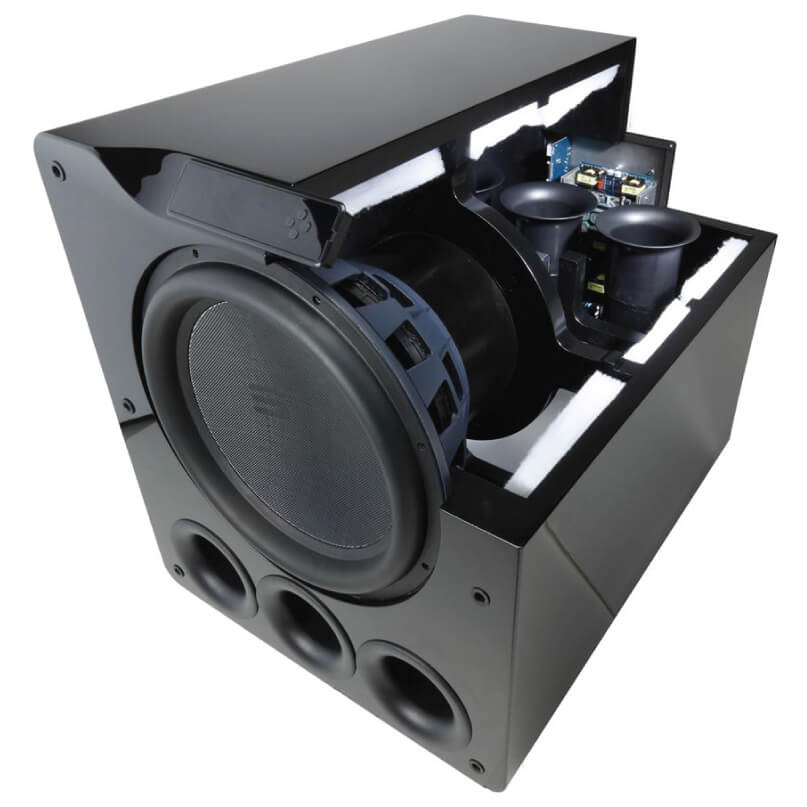

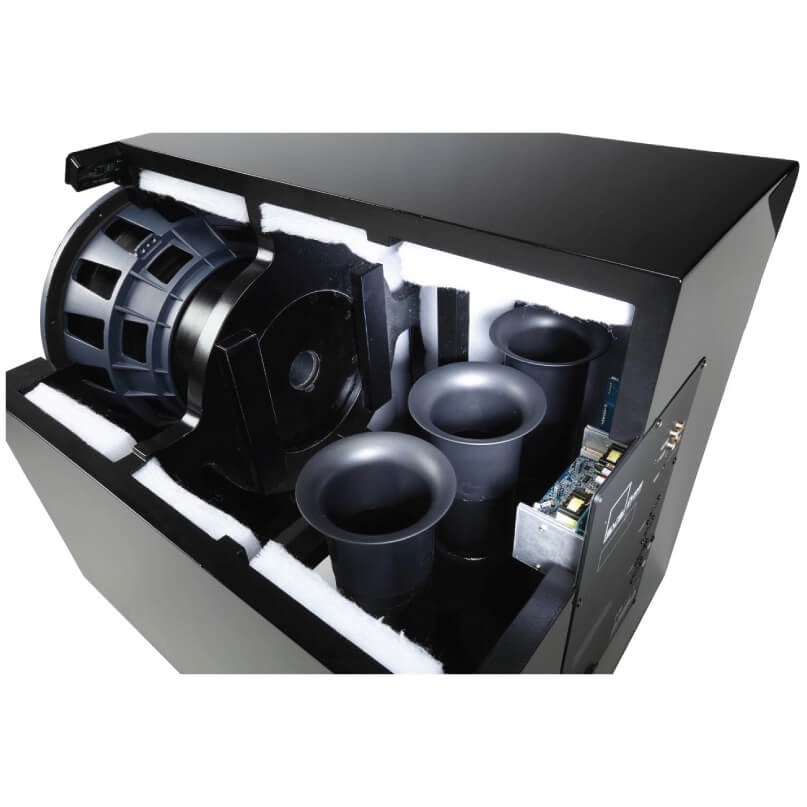

- Acoustically Inert, Rigidly Braced Cabinet
| Weight | 94030 g |
|---|---|
| Dimensions | 981 × 699 × 869 mm |
| Brands | |
| Color | Black Oak, Gloss Black |
| Frequency Response / Acoustic Data | 15-280 Hz +/- 3 dB (standard mode – all ports open) |
| 13-280 Hz +/- 3 dB (extended mode – 2 ports open) | |
| 14-360 Hz +/- 3 dB (sealed mode – all ports sealed) | |
| 2-meter ground plane away from reflective structures (quasi-anechoic) | |

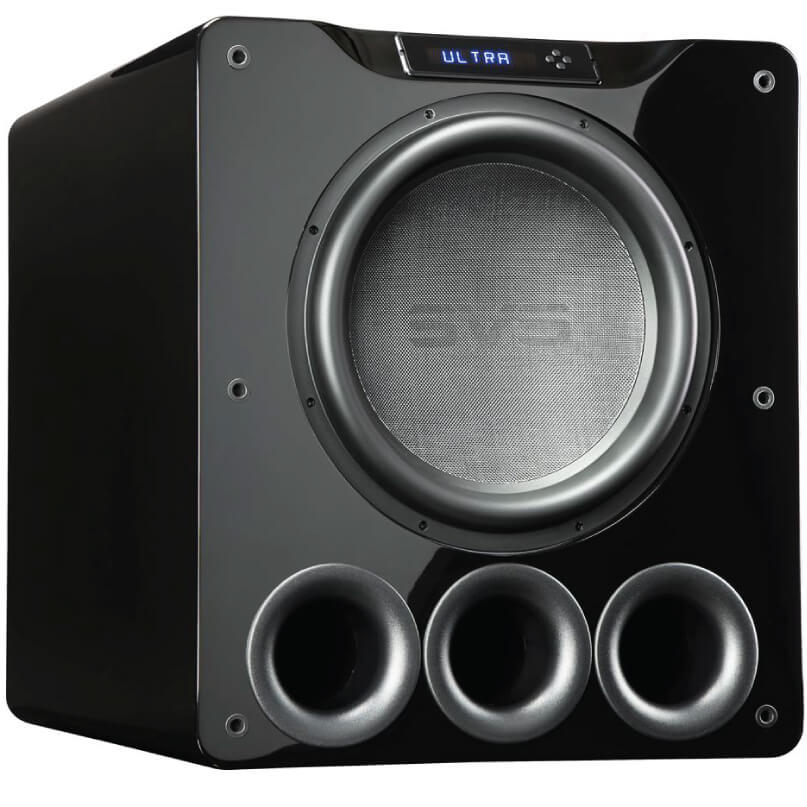

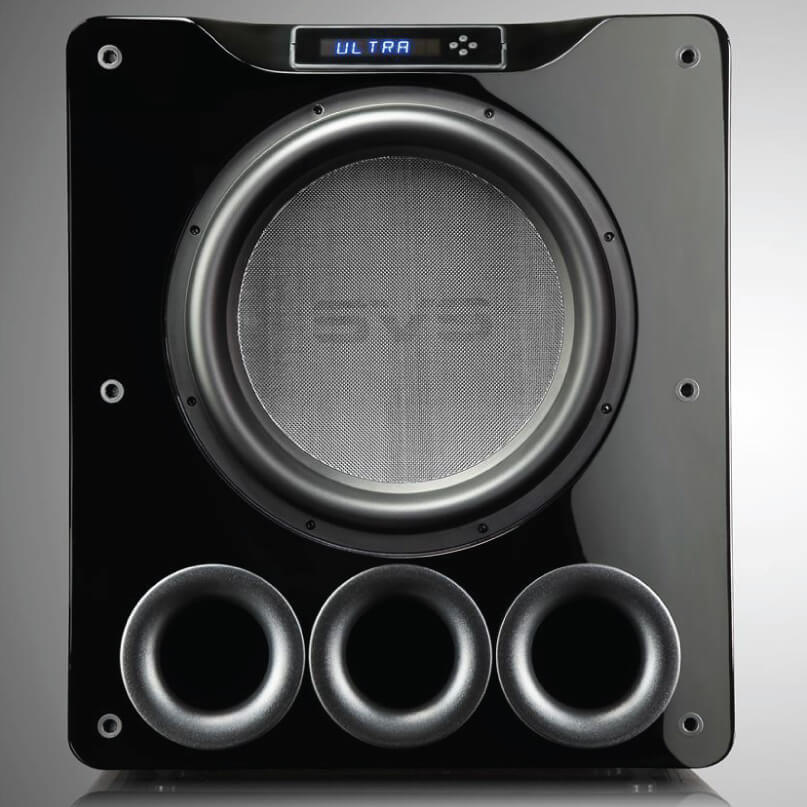

| Subwoofer | Front-firing 16″ driver |
| Rear-mounted amplifier | |
| Triple 3.5-inch ports | |
| Driver | SVS 16” Ultra-series driver |
| 8” diameter, high-power edge wound voice coil | |
| Powder-coated cast aluminum basket | |
| 95mm peak to peak Xmech excursion (82mm Xmax) | |

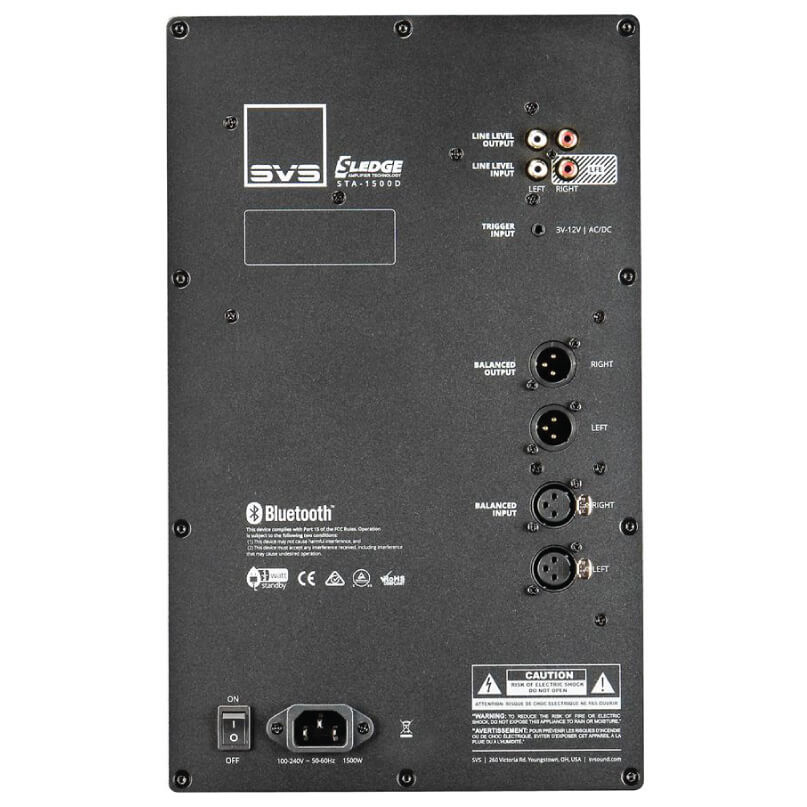

| Amplifier | Sledge STA-1500D DSP amplifier |
| 1,500 watts RMS continuous (5,000+ watts peak dynamic) | |
| High resolution 50Mhz Analog Devices Audio DSP | |
| Green standby mode with > 0.5 watts consumption | |
| Input impedance 22kohm (RCA)/ 22kohm (XLR) | |

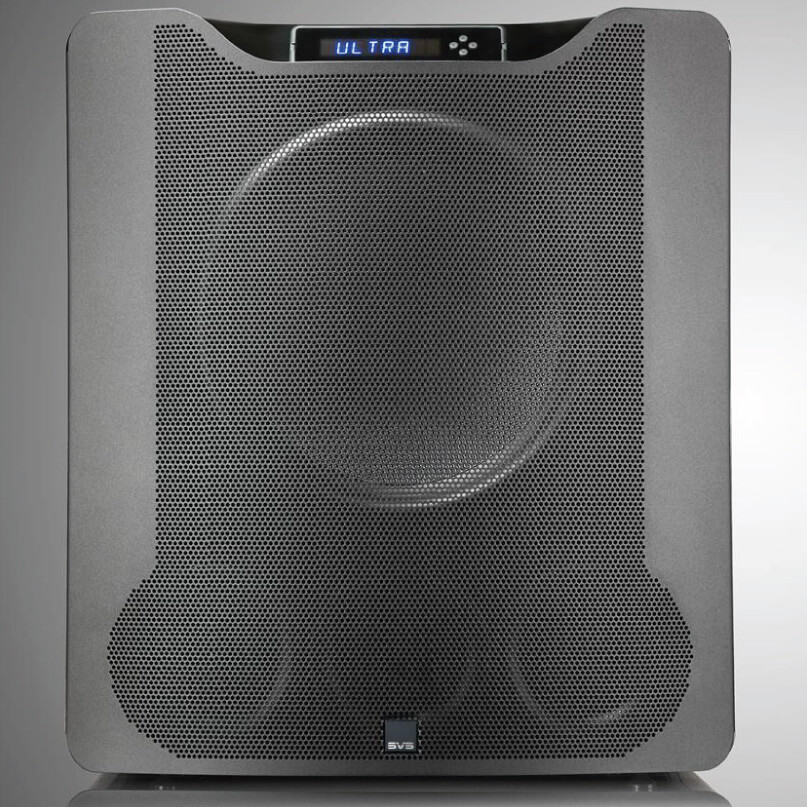

| Accessories | Protective non-resonant steel mesh grille |
| Iso-elastomer feet | |
| Extra heavy-duty, high current 6′ power cord | |
| 1 Foam port tuning plug | |
| PB16-Ultra Subwoofer Manual |
