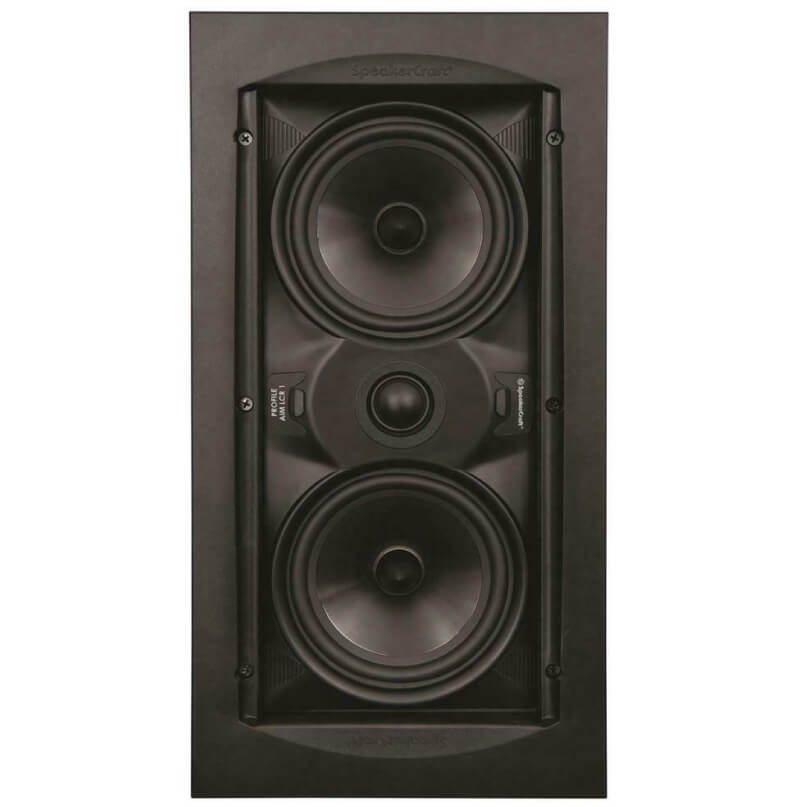

Speakercraft AIM-LCR1 In-Wall Woofer


  • Pivoting Woofer Baffle
  • Two 5 1/4″ Injection Molded Graphite Cone Woofers with Phasing Cones
  • Pivoting 1″ Silk Dome Tweeter
  • Timbre-Matched to All One Series Speakers


With a dual woofer and a single dome tweeter configuration, the In-wall AIM pivots side to side or up and down (depending on vertical or horizontal installation) by 17 degrees. The pivoting tweeters can be angled an additional 30 degrees. This allows physical tow-in or vertical adjustments while remaining completely flush in the wall. This proprietary feature sets the AIM LCR apart from all other in-wall offerings in the industry. The In-wall AIM LCR will be available in two models with the same driver configuration. The AIM LCR One features two 5 1/4 inch injection moulded graphite cone woofers with phasing plugs and a single 1 inch silk dome tweeter. The AIM LCR Three upgrades to dual 5 1/4 inch magnesium cone woofers with phasing plugs and a single magnesium dome tweeter. With the number of flat panel displays and full in-wall home theaters being installed today the In-wall AIM LCR is a perfect solution for the entire front sound stage left center and right.

Pivoting Woofers: The woofers in all AIM LCR models pivot independently of the tweeters meaning you can direct the low frequencies for a precise acoustical fit. It’s a feature you won’t find in ordinary in-wall speakers. The AIM LCR Series is your assurance of proper phase accurate frequency response and enhanced stereo imaging. And when placed as rear channels in a home theater configuration they can be directed away from the listener. This gives surround sound the critical degree of diffusion it needs.

Pivoting Tweeters: The tweeters in the AIM LCR models pivot independently from the woofers meaning you can direct the critical high frequencies precisely at the listening area.

Weight 4309 g
Dimensions 235 × 443 × 102 mm

Efficiency 89dB 1W/1m
Power Recommendations 5 – 80 Watts (Undistorted)
Impedance 8 Ohms
Frequency Response 55Hz – 20kHz 3dB
