Spacedec SD-SA-DW Wall Mount

Offers a wide range of movement via 2 pivot points
Ball joint mechanism allows 40? of display adjustment in any direction from the vertical plane
Portrait to landscape rotation
Display height adjustment range of 18″ (460mm)
Bolt-through and desk clamp mounting options included
Integrated cable management
Compatible with VESA 75 x 75 and 100 x 100mm mounting hole patterns
Suits both brick/concrete and timber stud walls

Wishlist

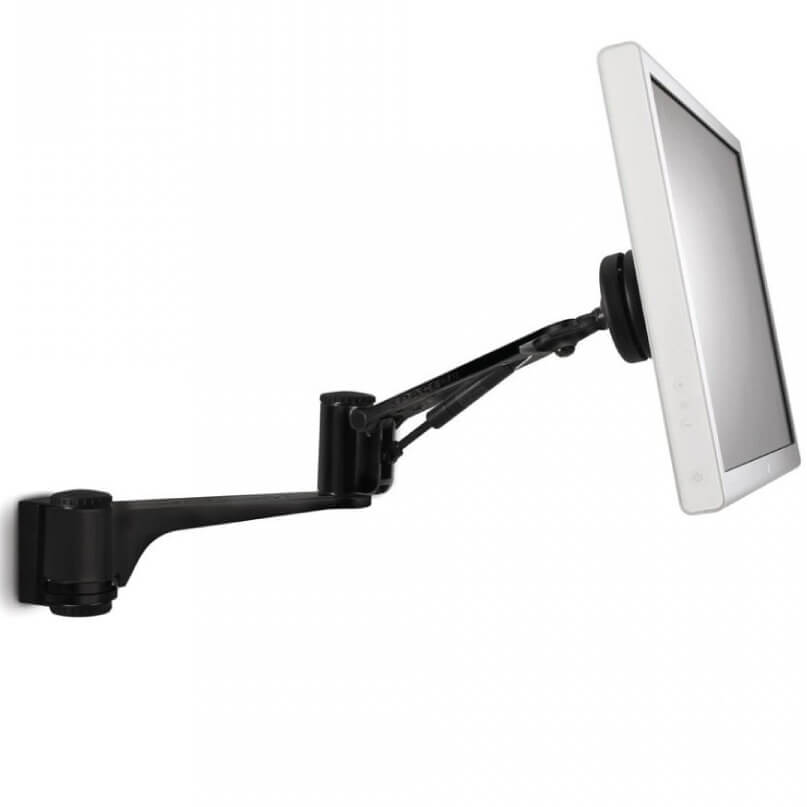

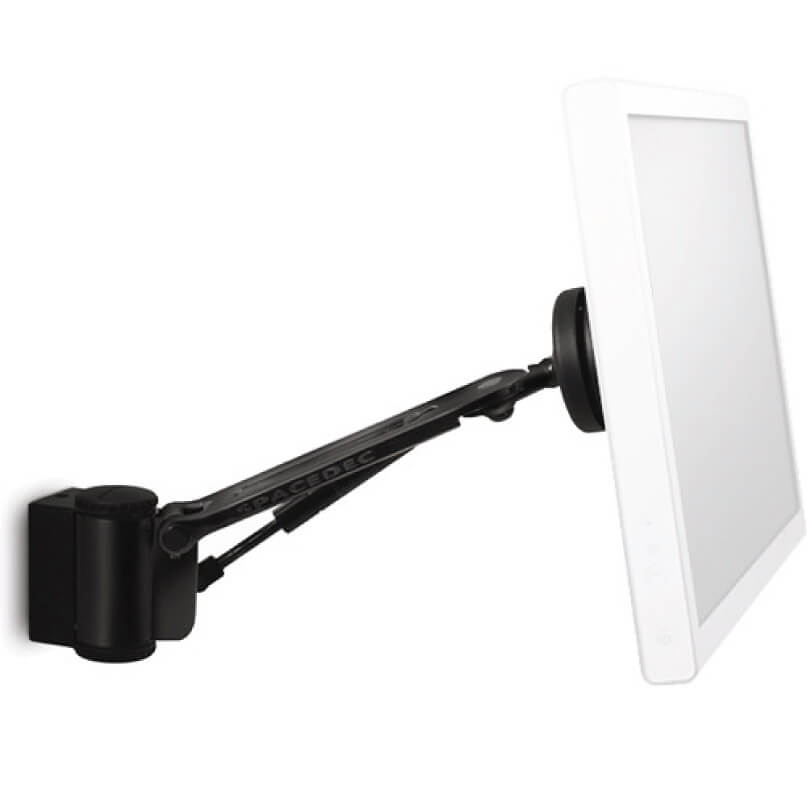

The black Spacedec SD-SA-DW-BK Acrobat Swing Arm Wall Mount from Atdec is suitable for almost any office environment. It helps conserve valuable desk space by mounting monitors of up to 19.8 lb (9kg) on a wall or platform in front of the user. This leaves a monitor footprint of zero and creates a productive workspace, free from wire clutter. With 2 separate pivot/adjustment points, you have good control over your monitor position in terms of height, swing, tilt, and screen rotation. The arm stretches a full 13.75? (350mm) and can be easily adjusted to suit any viewing angle, tilt, orientation, or height. Height adjustment is effortless due to the monitor weight counter-balancing gas strut mechanism, which glides the monitor into the optimum working position. Screen tilt and pan of up to 40? is also made simple with a ball joint integrated into the arm to position the screen for the optimum viewing angle. When combined, these features ensure that all adjustments can be made from a seated position.

Category: Uncategorized

Weight	2040 g
Dimensions	419 × 231 × 147 mm
Brands	Atdec

Material	Aluminum and steel
Load Capacity	Minimum 6.60 (2.99 kg) Maximum 19.80 lb (8.98 kg)
Mounting Pattern Hole	75 x 75 mm; 100 x 100 mm
Display Range	12.00 to 24.00″ (30 to 61 cm)
Screen Rotation	360° (portrait/landscape)
Rotation Arm	180° (around pole)
Adjustments Tilt/Pan	±40° tilt, ±40° pan
Pivot Head Pan Adjustment	85°
Display Pan Adjustment	90° left and right, total of 180°
Height Adjustment Range Display	18″ (460 mm)
Cable Management	Integrated external management
Arm Reach	Maximum 13.75″ (350.00 mm)
Distance from Wall	Minimum: 5.59″ (141.90 mm)
Maximum Whole Unit	14.75″ (375.00 mm)
