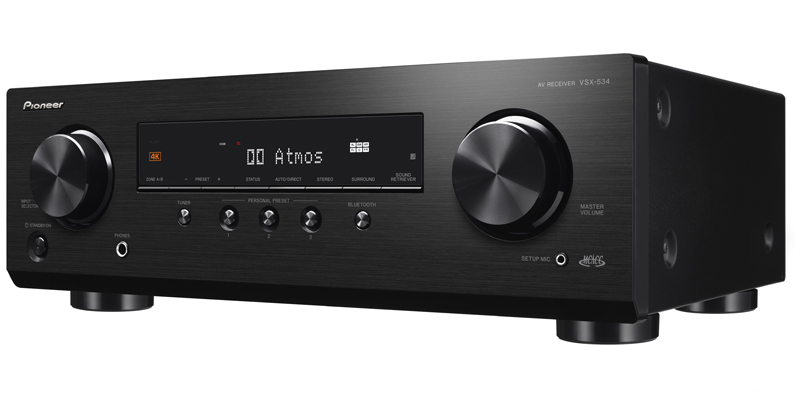

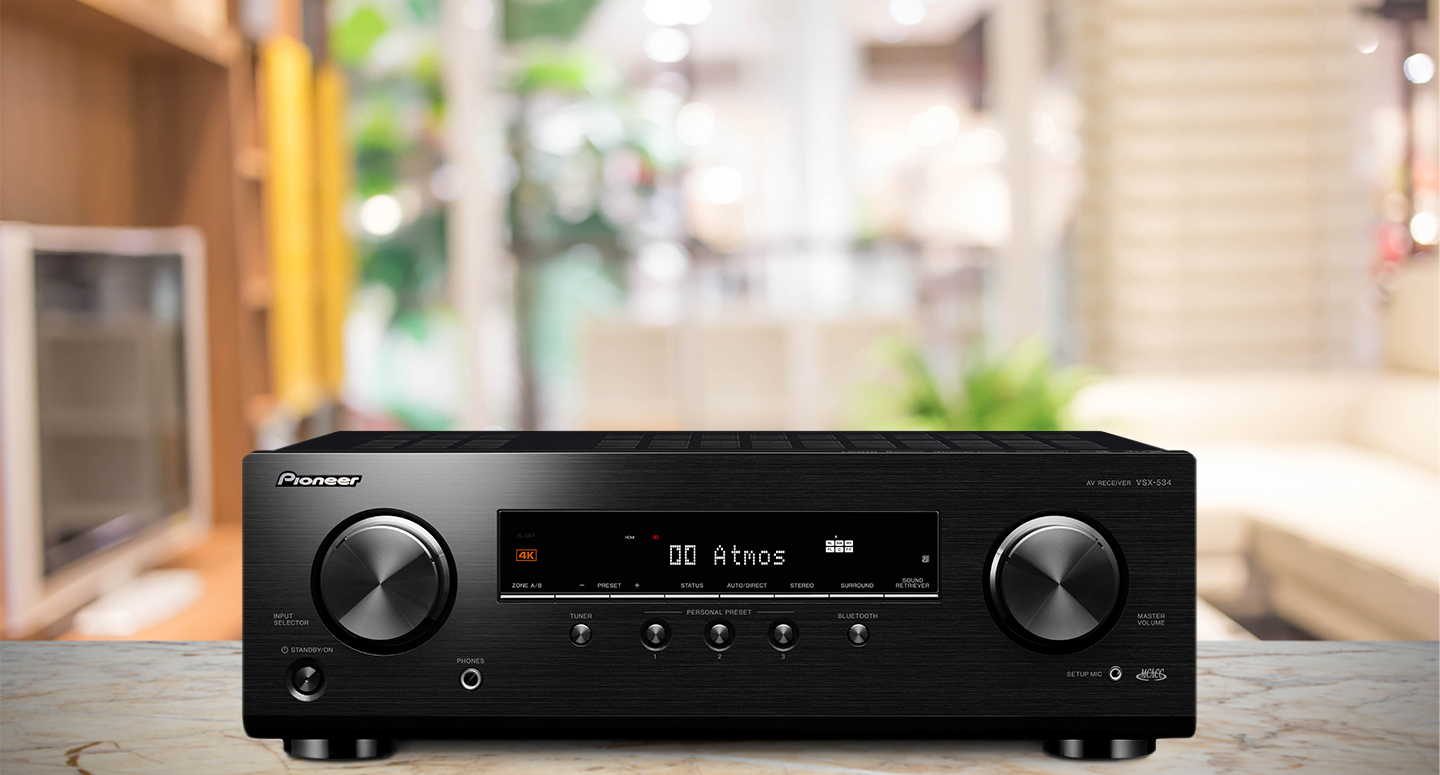

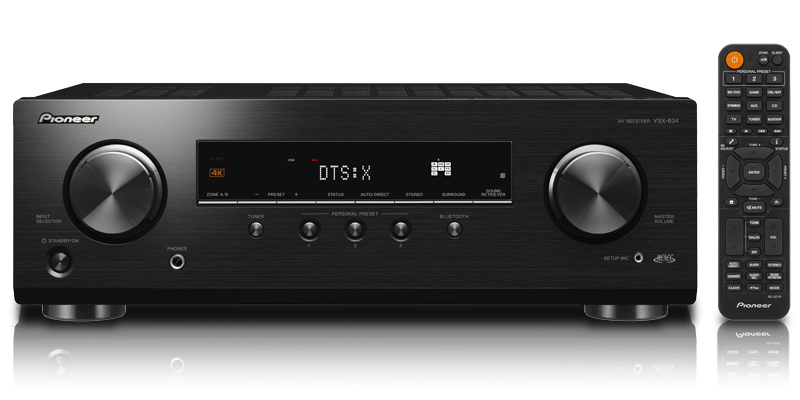

Pioneer VSX-534 5.2 Channel AV Receiver


  • DTS:X
  • Dolby Atmos
  • Dolby Atmos Height Virtualization
  • DTS Virtual:X


The VSX-534 AV Receiver features Dolby Atmos immersive sound at a price you will not find anywhere else. The VSX-534 comes in a user-friendly new design, with a 12% slimmer size than the previous model for easy installation, 4K indicator, and Personal Preset and Bluetooth® Input buttons on the front panel. Immerse in enveloping sound with Dolby Atmos® and DTS: X® audio formats. Or even without height or surround speakers, you can still enjoy virtual 3D surround effects with Dolby Atmos Height Virtualizer* and DTS Virtual: X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision™ with support for HDCP 2.2, so you can fully appreciate premium content such as 4K videos.

You get a top-notch receiver with surround sound capabilities without having to spend a fortune.



Can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required.
E-ARC dolby atmos couple surrounded by sound waves

Dolby Atmos

You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers.
Dolby Atmos Height Virtualization

Dolby Atmos Height Virtualization

Creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
DTS Virtual:X*

DTS Virtual:X*

With DTS Virtual:X, you can enjoy a three-dimensional immersive sound similar to DTS:X, without the need of height or rear speakers. The technology supports 2 to 7.1.4-channel input source, for delivery on 2 to 5.1 or even 7.1-channel speaker layout. DTS Virtual:X works with all DTS codecs, including DTS:X.
Ready for 4K HDR entertainment

Ready for 4K HDR entertainment

Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision®, and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.
MCACC Auto Room Tuning

MCACC Auto Room Tuning

With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalizes response.
Zone B Output for Wireless Headphones

Zone B Output for Wireless Headphones

You can listen to the sound playing in the living room via wireless headphones.
Personal Preset

Personal Preset

Just press the Personal Preset button on the front panel for three seconds, and your current settings such as volume level and listening mode can be saved. Up to three presets can be registered and easily called up from the front panel button or the remote control.
Dialog Enhancement

Dialog Enhancement

make volume adjustments to the range including dialogs in films, with the up/down key on the remote control.
Smooth and easy Bluetooth streaming

Smooth and easy Bluetooth streaming

Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.
Weight 8000 g
Dimensions 321 × 435 × 148 mm

Channels 5.2
Amplifier Design Direct Energy
Power Output (1 kHz, 10% THD, 6 Ohms, 1 Ch Driven) 150 W/Ch
Power Output (20 Hz – 20 kHz, 0.08% THD, 8 Ohms, 2 Ch Driven) 80 W/Ch
Estimated Power Consumption / Network Standby Off 445 W / 0.1 W
Decoders & Formats
Digital Core DSP Engine Digital Quad-Core 32-bit DSP (Cirrus Logic)
Audio Processing
Music File Playback 192 kHz/24-bit ALAC, AIFF, FLAC, WAV Via USB
Dolby Atmos
Dolby TrueHD
DTS Neural:X
HDMI SACD Transfer 2 Channel
Audio DACs 384 kHz/32-bit D/A Conversion with AK4438 (AKM)
iPod Digital Audio
High-Definition Copy Protection (HDCP) 2.2
Dolby Atmos Height Virtualizer
Dolby Digital Plus
DTS-HD Master Audio
DTS Virtual:X
Soundfield Calibration
Phase Control
MCACC Memory 1
EQ Bands 9-Band
Polarity Check
Standing Wave Control
Symmetric EQ
Distance Adjustment 0.1 Feet
Auto Subwoofer Crossover
Listening Modes
Auto Surround
Advanced Surround 10+1
Front Stage Surround Advance
Virtual Speakers
Stream Direct ✓ (Direct, Pure Direct)
Wide Surround
Headphone Surround
Audio Features
Dialogue Enhancement
Sound Retriever AIR
Tone Control Multi
Speaker A/B
Advanced Sound Retriever
Digital Noise Reduction
Sound Delay (Lip Sync)
Video Processing
4K Ultra HD Pass-Through ✓ (HDR10, HLG and BT.2020 Wide Colour Gamut Signal Pass-Through)
3D Ready
HDMI Standby Through ✓ (With Input Switch / Last Memory)
HDMI 36-bit Deep Colour
Video Processor
Component Video Scaler
Pure Cinema I/P Converter
3D Noise Reduction
4K Ultra HD Video Scaler Ultra HD Upscaling
Audio Return Channel
Dolby Vision Compatible
HDMI x.v.Colour
Video Converter to HDMI
Composite Video Scaler
Advanced Video Adjustment
Super Resolution
HDMI Input / Output 4 In (Rear) / 1 Out
Wi-Fi Built-In
Wireless Adapter Port
Component Video Input / Output
iPhone / iPod / USB Memory Input
Ethernet Input
Digital Audio Inputs / Output 2 In (Optical 1, Coaxial 1)
Headphone Output
AM/FM Presets ✓ (40 Presets)
Bluetooth Built-In ✓ (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC)
Composite A/V Input / Output
USB Terminal ✓ (Rear)
Analogue Audio Inputs / Output 2 In / 0 Out
Pre-Amp Output 0.2 Ch
Front A/V Inputs USB / 3.5 mm Stereo Mini Jack
On-Screen Display User-Friendly GUI with System Setup Menu
Multi-Room and Source Output
Multi-Zone On-Screen Display
Function Rename
Sleep Timer
Auto Power Down
IR Serial Remote In/Out
FL Dimmer
Versatile Speaker Configuration Front, Cemtre, Surround/Height
Front Panel Brushed
Speaker Terminals 2 Large + 3 Clip
Dimensions & Weight
Dimensions (W x H x D) 435 x 148 x 321 mm (17 1/8″ x 5 13/16″ x 12 5/8″)
Weight 8 kg (17.6 lbs)
