PATHOS INPOL REMIX MKII

PATHOS INPOL REMIX MKII

Pure Class A Integrated Amplifier

Overview

A fully balanced pure class-A integrated amp with Pathos’ latest generation double-InPol circuitry.

Think of the directness of SET with the control and damping of solid state. Pathos’ patented and unique InPol technology allows the tube input stage to effectively drive your speakers with no further amplification. A dual InPol circuit delivers the low impedance and high current needed for a high damping factor, allowing for immense control over your loudspeaker drivers.

$13,999.95

Color

Lacquered Black
Lacquered Red
Lacquered White
Matte Metallic Black
Matte Zebrawood

Clear

Wishlist

Compare

PATHOS INPOL REMIX MKII

Pure Class A Integrated Amplifier

Overview

A fully balanced pure class-A integrated amp with Pathos’ latest generation double-InPol circuitry.

InPol (Inseguitore Pompa Lineare or Linear Pump Follower) is a Pathos patented system. that allows for much greater output in pure class-A. This fully balanced circuit design uses a single solid-state component in follower configuration, with a both a high current and high voltage gain.

An optional HiDac Mk2 converter offers a high-quality onboard DAC with digital inputs.

SKU: pathos-iirmk2 Categories: Receivers, Amps & Preamps, Integrated Amplifiers & Receivers

Weight	20000 g
Dimensions	400 × 300 × 200 mm
Brands	Pathos Acoustics
Color	Lacquered Black, Lacquered Red, Lacquered White, Matte Metallic Black, Matte Zebrawood

InPoL Remix MKII

Type	Stereo integrated amplifier Pure class A – double INPOL technology – fully balanced – digital Bias/gain set technology
Output power	2 x 25W@ 8 Ohm, 2 x 38W@ 4 Ohm
Frequency response	2Hz – 150KHz ± 0.5db
Input sensitivity	470mVRMS
Input impedance	47KOhm
Output polarity	Selectable by remote control
Volume regulator	2 x Burr Brown PGA2310 (180 steps 0,5dB)
THD	0,1% @1W
S/N Ratio	> 100dB Gain 31 db Unbalanced 37 db Balanced Output impedance 0,9Ω

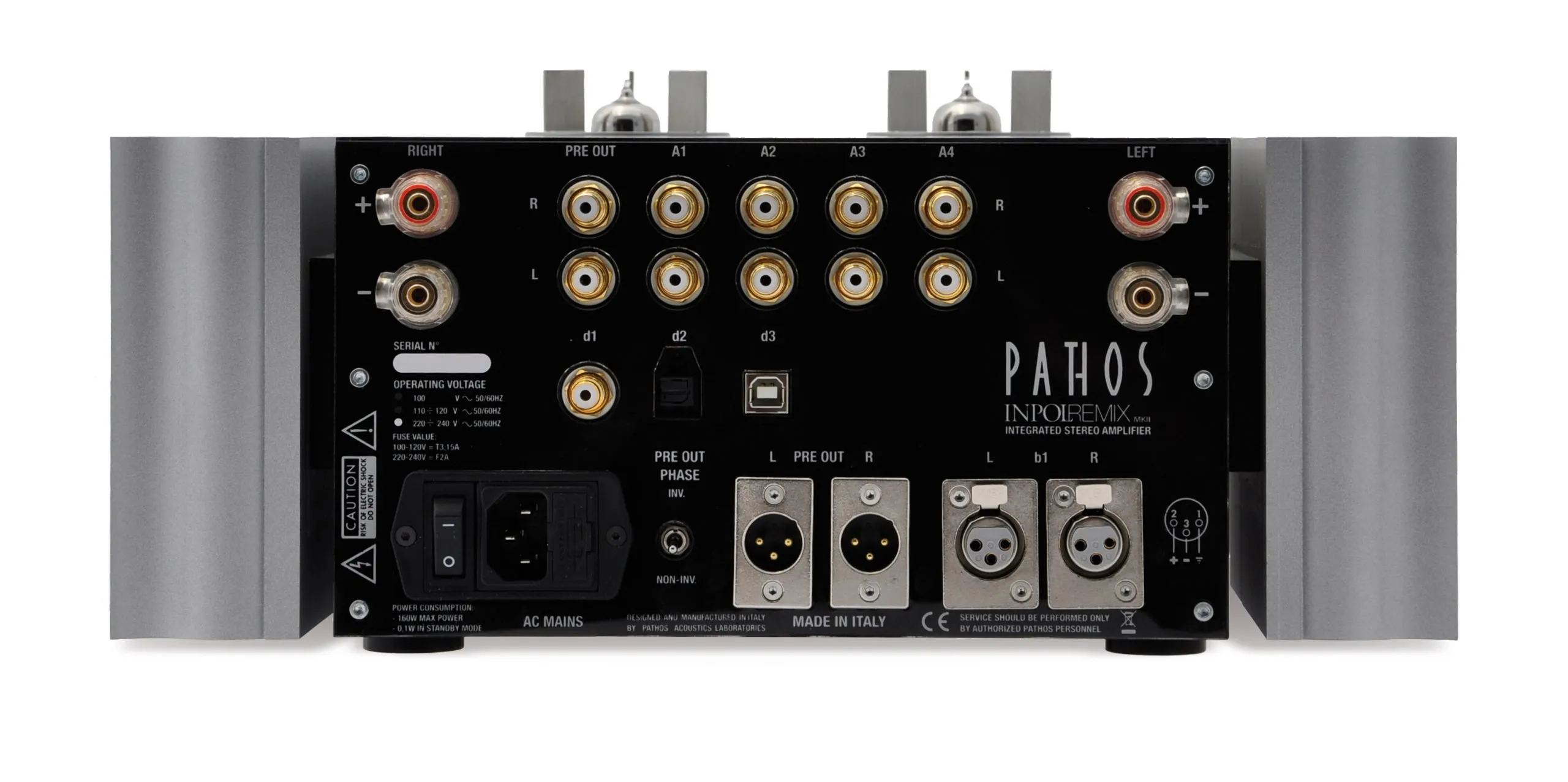

CONNECTIONS
Analogue inputs	1 Balanced XRL line, 4 unbalanced RCA line
Digital inputs	Installation of (optional) HiDac Mk2 board is required to enable these inputs 1 USB port type “B” for PC, 1 SPDIF coaxial, 1 SPDIF optical
Outputs	1 Pre out stereo line RCA 1 Pre out stereo line Balanced XLR Pre-output phase can be selected 1 connector for jack headphone 6,3mm
HEADPHONE SPECIFICATIONS
Output power	2,65W @ 32 Ω
Output impedance	0,45Ω
Max output level	9,6 VRMS
Frequency response	2Hz – 400KHz ± 0,5db
THD	0,025%
DIMENSIONS
Amplifier	370mm (D) x 280mm (W) x 180mm (H)
Weight	15,5Kg
