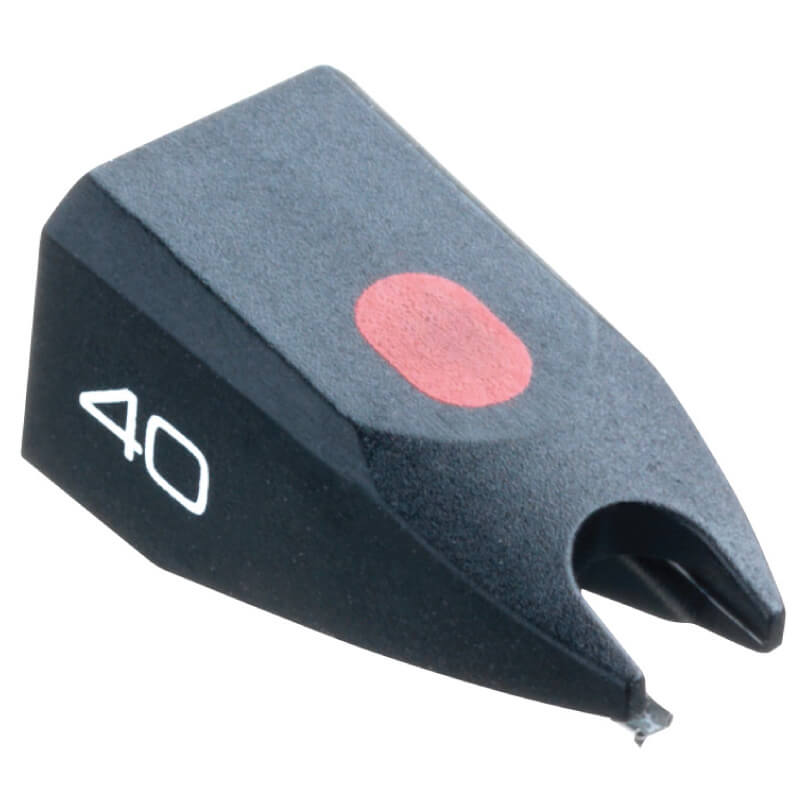

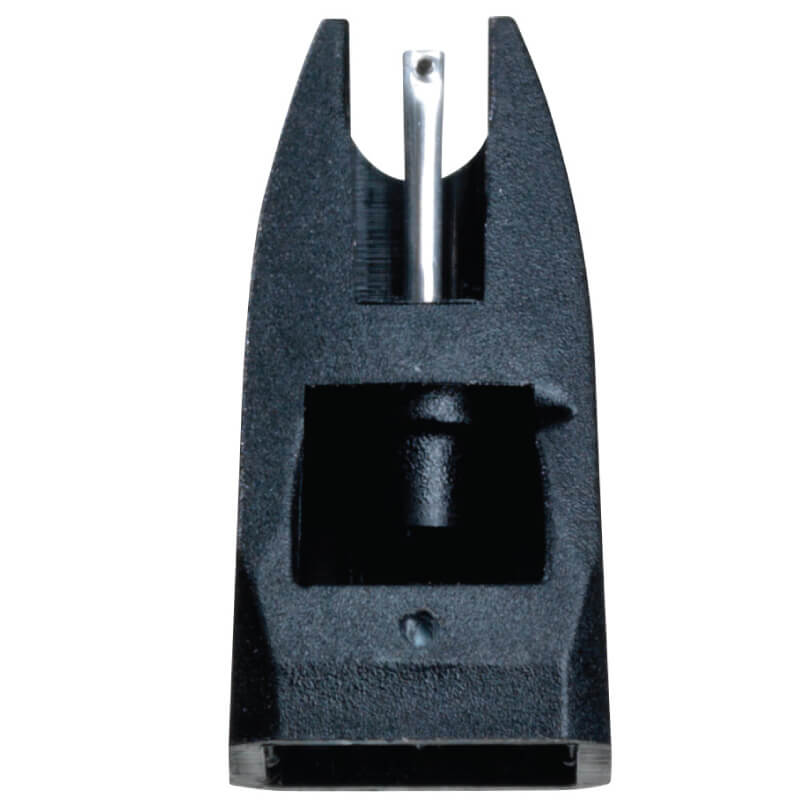

Ortofon Stylus 40 Replacement Stylus


  • Replacement Stylus for Ortofon OM and Super OM series
  • Will fit the following Ortofon cartridges: all Super OM, OM, OMB, OMP, TM, Concorde STD
  • Recommended for following cartridges: Super OM 40, OM 40, OM 40 GOLD
  • Recommended tracking force is 1.5g

$589.00

  • Replacement Stylus for Ortofon OM and Super OM series
  • Will fit the following Ortofon cartridges: all Super OM, OM, OMB, OMP, TM, Concorde STD
  • Recommended for following cartridges: Super OM 40, OM 40, OM 40 GOLD
  • Recommended tracking force is 1.5g
Brand

Frequency range 20-20,000 Hz
Frequency response 20-18,000 Hz + 2 / – 3 dB
Tracking ability at 315Hz at recommended tracking force 60 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Equivalent stylus tip mass 0.5 mg
Tracking force range 1.5-2.0 g (15-20 mN)
Tracking force, recommended 1.75 g (17.5 mN)
Tracking angle 20°
Stylus colour Black
Recommended for the following cartridges OM 3E, OMP 3E
