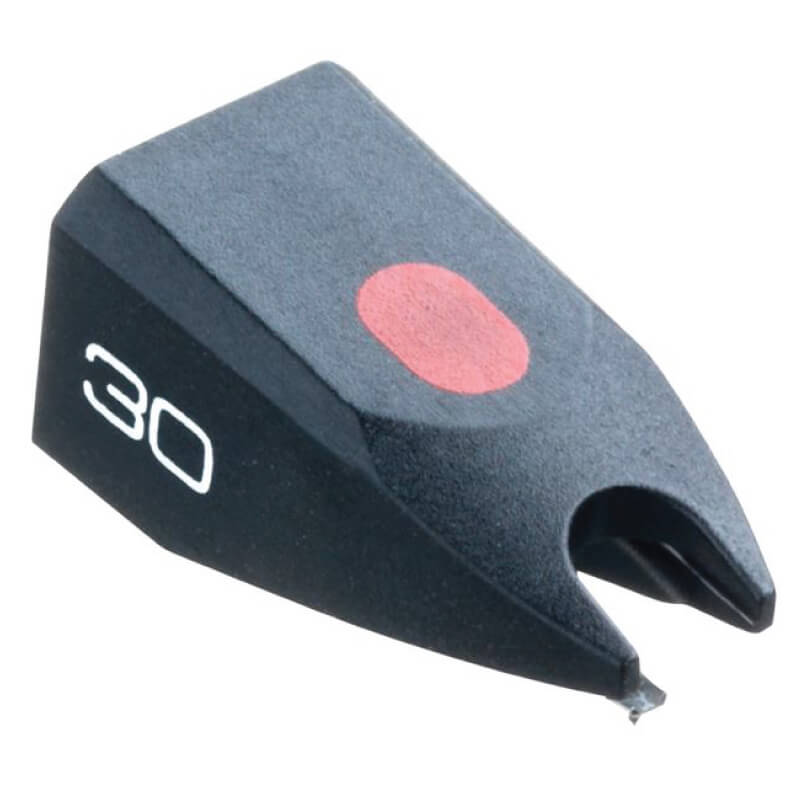

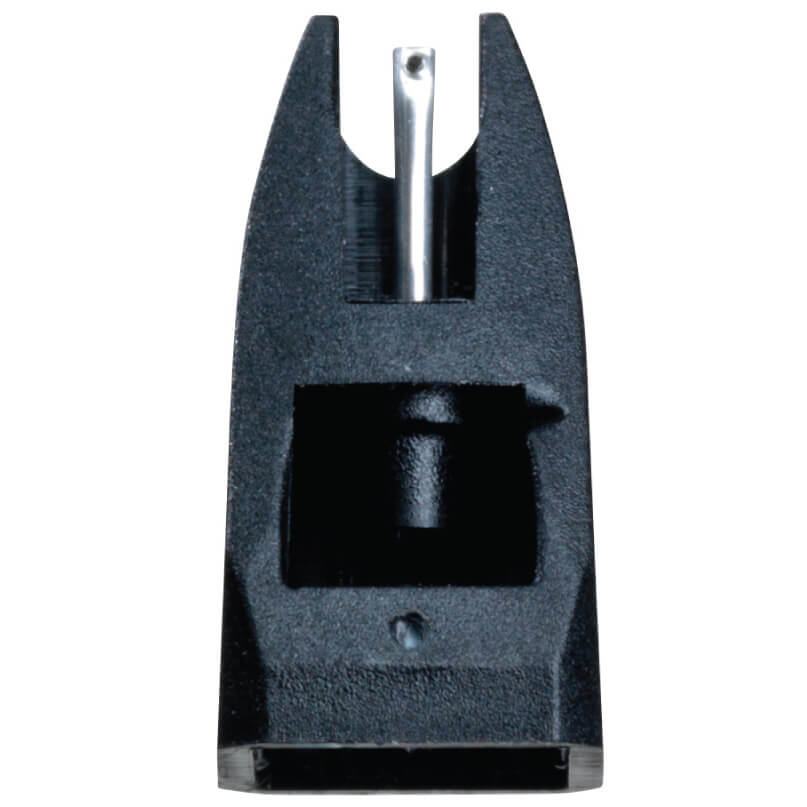

Ortofon Stylus 30 Replacement Stylus


  • Replacement Stylus for Ortofon OM and Super OM series
  • Will fit the following Ortofon cartridges: all Super OM, OM, OMB, OMP, TM, Concorde STD
  • Recommended for following cartridges: Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H, TM 30H
  • Stylus Type – Nude Fine Line
  • Recommended tracking force is 1.5g

$479.00

  • Replacement Stylus for Ortofon OM and Super OM series
  • Will fit the following Ortofon cartridges: all Super OM, OM, OMB, OMP, TM, Concorde STD
  • Recommended for following cartridges: Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H, TM 30H
  • Stylus Type – Nude Fine Line
  • Recommended tracking force is 1.5g
Brand

Frequency range 20-29,000 Hz
Frequency response 20-20,000 Hz + 2 / – 3 dB
Tracking ability at 315Hz at recommended tracking force 90 µm
Compliance, dynamic, lateral 25 µm/mN
Stylus type Nude Fine Line
Stylus tip radius r/R 8/40 µm
Equivalent stylus tip mass 0.3 mg
Tracking force range 1.25-1.75 g (12.5-17.5 mN)
Tracking force (recommended) 1.5 g (15 mN)
Tracking angle 20°
Stylus colour Black
