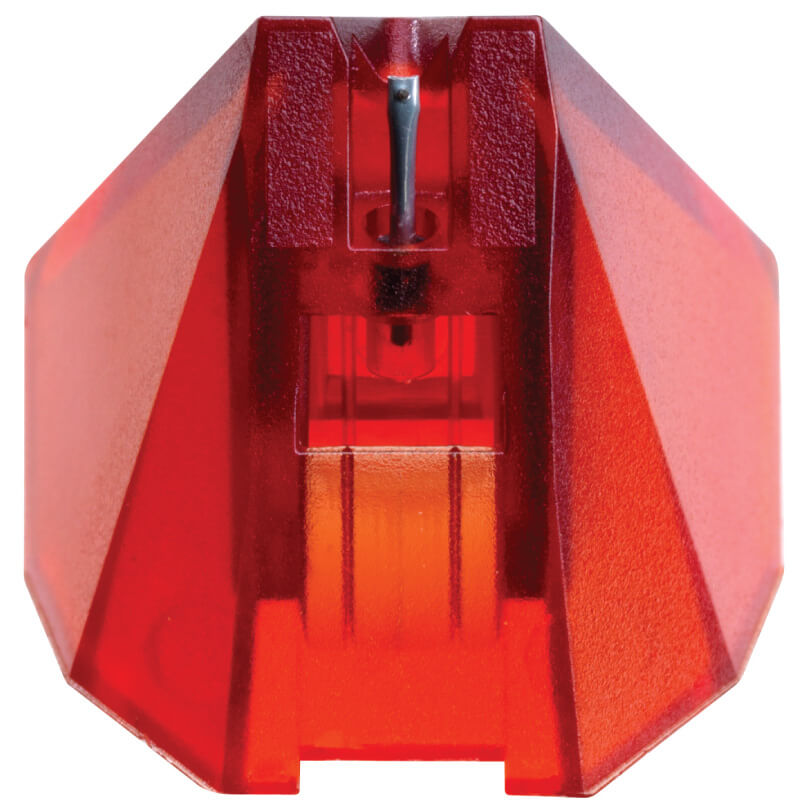

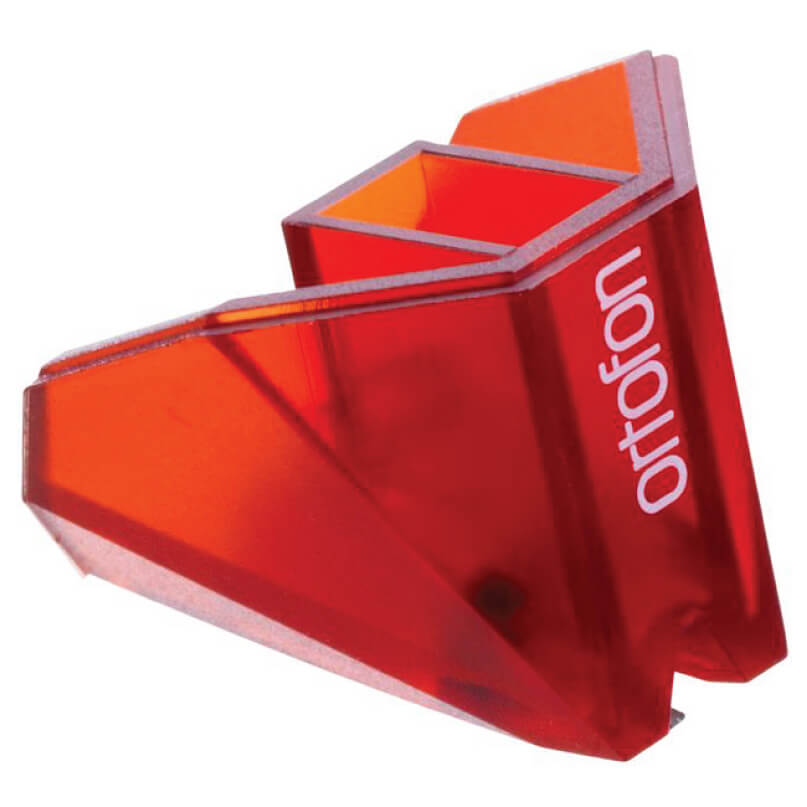

Ortofon Stylus 2M Red Replacement Stylus


The Ortofon 2M Red Stylus is an optional replacement for your existing Ortofon 2M Red or 2M Blue cartridge. It features a Tipped Elliptical stylus profile.

$149.00

Physically 2M styli will fit on alternative 2M cartridges bodies, but 2M Series cartridges? engines, coils and magnets configurations are not quite identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78.

  • 2M series styli are interchangeable within the below combinations:
  • 2M Red, 2M Blue and 2M Silver
  • 2M Bronze and 2M Black
  • 2M Mono and 2M 78
Brand

Frequency range at -3 dB 20-22,000 Hz
Frequency response 20-20,000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force 70 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Equivalent stylus tip mass 0.5 mg
Tracking force range 1.6-2.0 g (16-20 mN)
Tracking force (recommended) 1.8 g (18 mN)
Tracking angle 20°
Stylus colour Red
Recommended for the following cartridges 2M Red / 2M Red Verso (interchangeable with 2M Blue / 2M Blue Verso)
