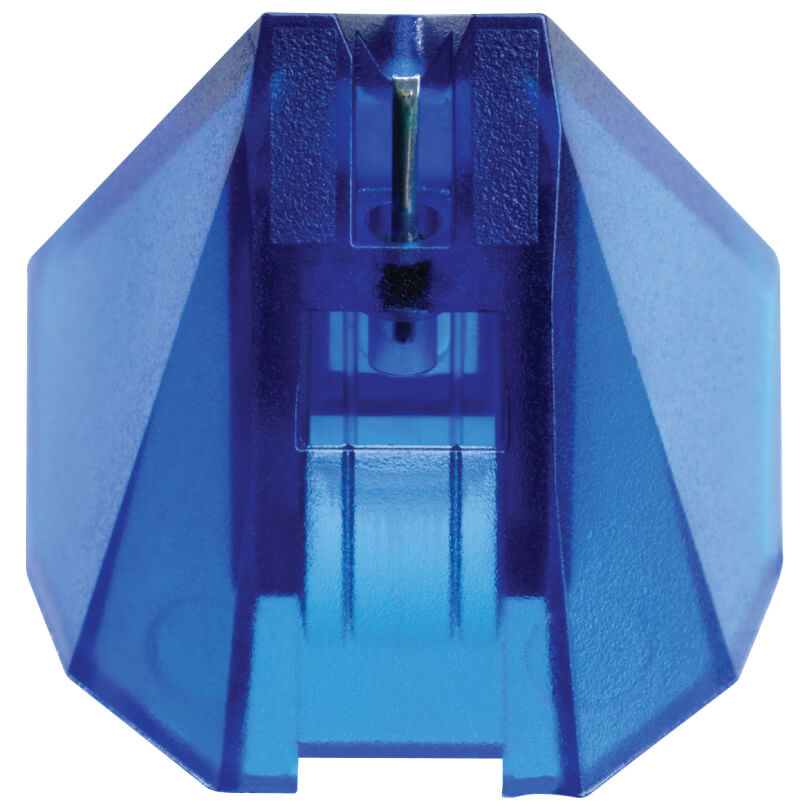

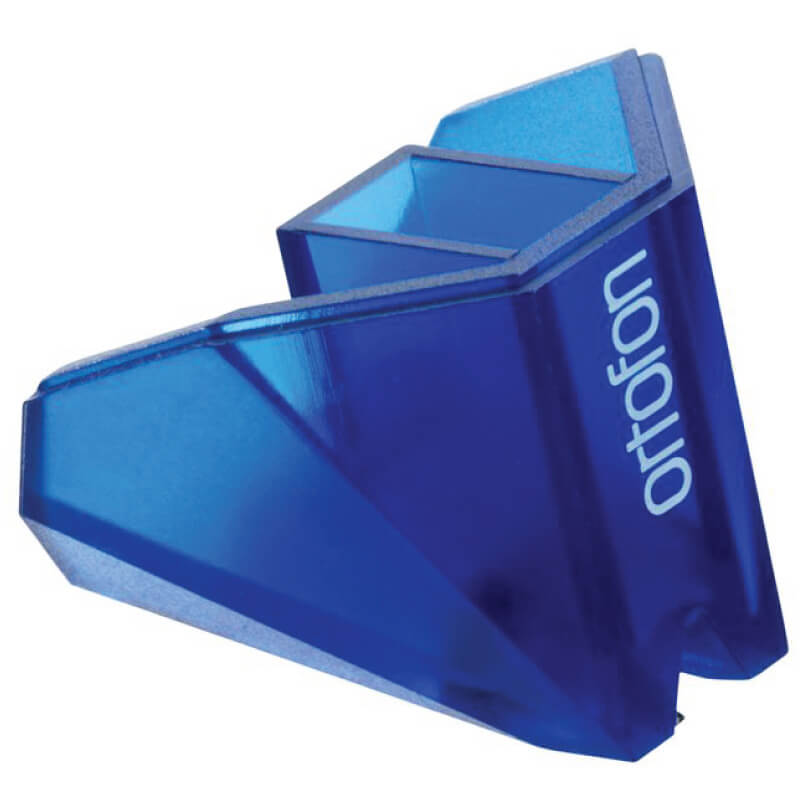

Ortofon Stylus 2M Blue Replacement Stylus

Ortofon

  • The Ortofon 2M Blue Stylus is a replacement for your existing Ortofon 2M Blue cartridge or an upgrade option for your existing Ortofon 2M Red cartridge
  • It features a Nude Elliptical stylus profile

$279

Physically 2M styli will fit on alternative 2M cartridges bodies, but 2M Series cartridges? engines, coils and magnets configurations are not quite identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78.

2M series styli are interchangeable within the below combinations:
– 2M Red, 2M Blue and 2M Silver
– 2M Bronze and 2M Black
– 2M Mono and 2M 78

Brand

Frequency range at -3 dB 20-25.000 Hz
Frequency response 20-20.000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force 80 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1.6-2.0 g (16-20 mN)
Tracking force, recommended 1.8 g (18 mN)
Tracking angle 20°
Equivalent stylus tip mass 0.5 mg
Stylus colour Blue
Recommended for following cartridges 2M Blue, interchangeable with 2M Red
