Ortofon Stylus 20 Replacement Stylus

Ortofon

ORTOFON STYLUS 20

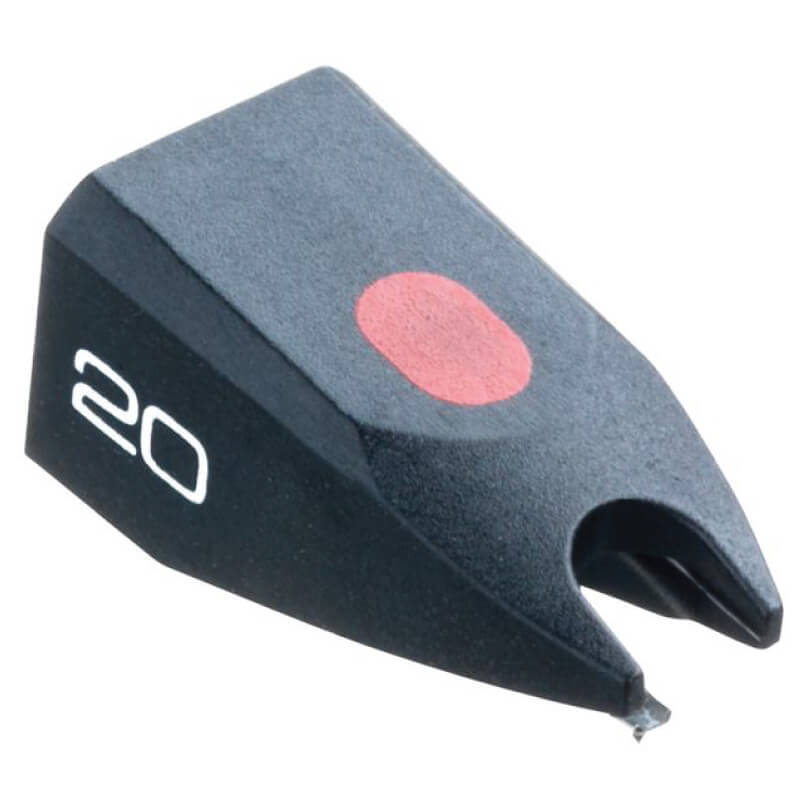

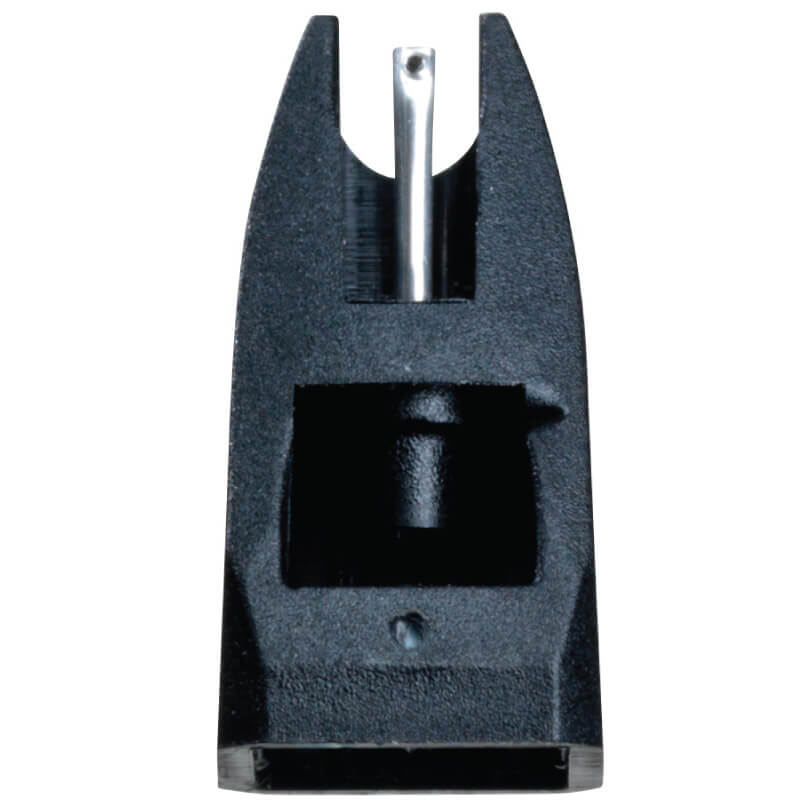

The Ortofon Stylus 20 needle stylus is the standard replacement stylus for the Ortofon OM-20 OM20 phono cartridge and its older siblings.

  • Replacement Stylus for Ortofon OM and Super OM series
  • Will fit the following Ortofon cartridges: all Super OM, OM, OMB, OMP, TM, Concorde STD
  • Recommended for following cartridges: Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
  • Stylus Type – Nude Elliptical
  • Recommended tracking force is 1.5g

$259

ORTOFON STYLUS 20

The Ortofon Stylus 20 needle stylus is the standard replacement stylus for the Ortofon OM-20 OM20 phono cartridge and its older siblings.

  • Replacement Stylus for Ortofon OM and Super OM series
  • Will fit the following Ortofon cartridges: all Super OM, OM, OMB, OMP, TM, Concorde STD
  • Recommended for following cartridges: Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
  • Stylus Type – Nude Elliptical
  • Recommended tracking force is 1.5g
Weight 10 g
Dimensions 30 × 30 × 30 mm
Brand

Frequency range 20-27,000 Hz
Frequency response 20-20,000 Hz + 2 / – 3 dB
Tracking ability at 315Hz at recommended tracking force 80 µm
Compliance, dynamic, lateral 25 µm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 µm
Equivalent stylus tip mass 0.4 mg
Tracking force range 1.25-1.75 g (12.5-17.5 mN)
Tracking force (recommended) 1.5 g (15 mN)
Tracking angle 20°
Stylus colour Black
