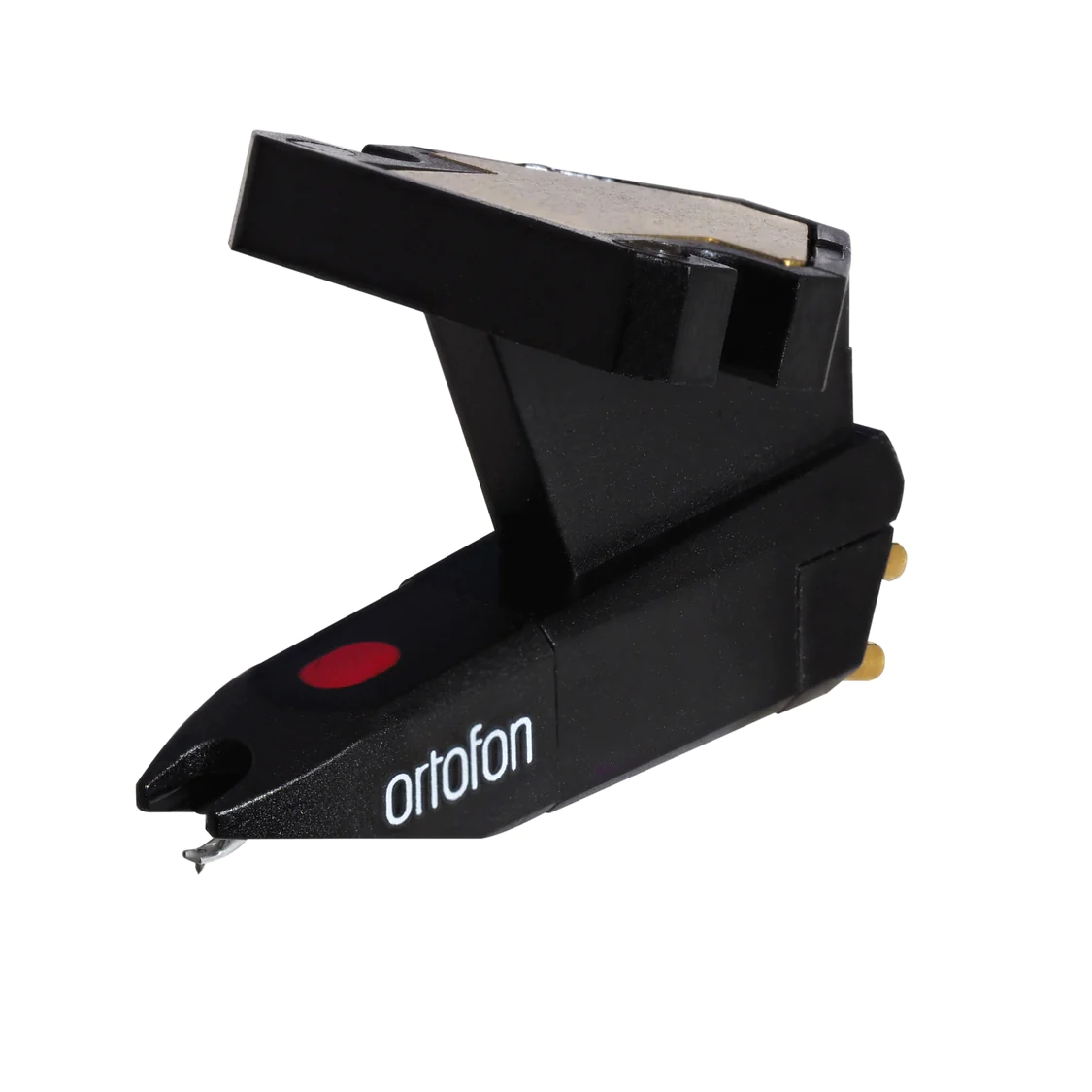

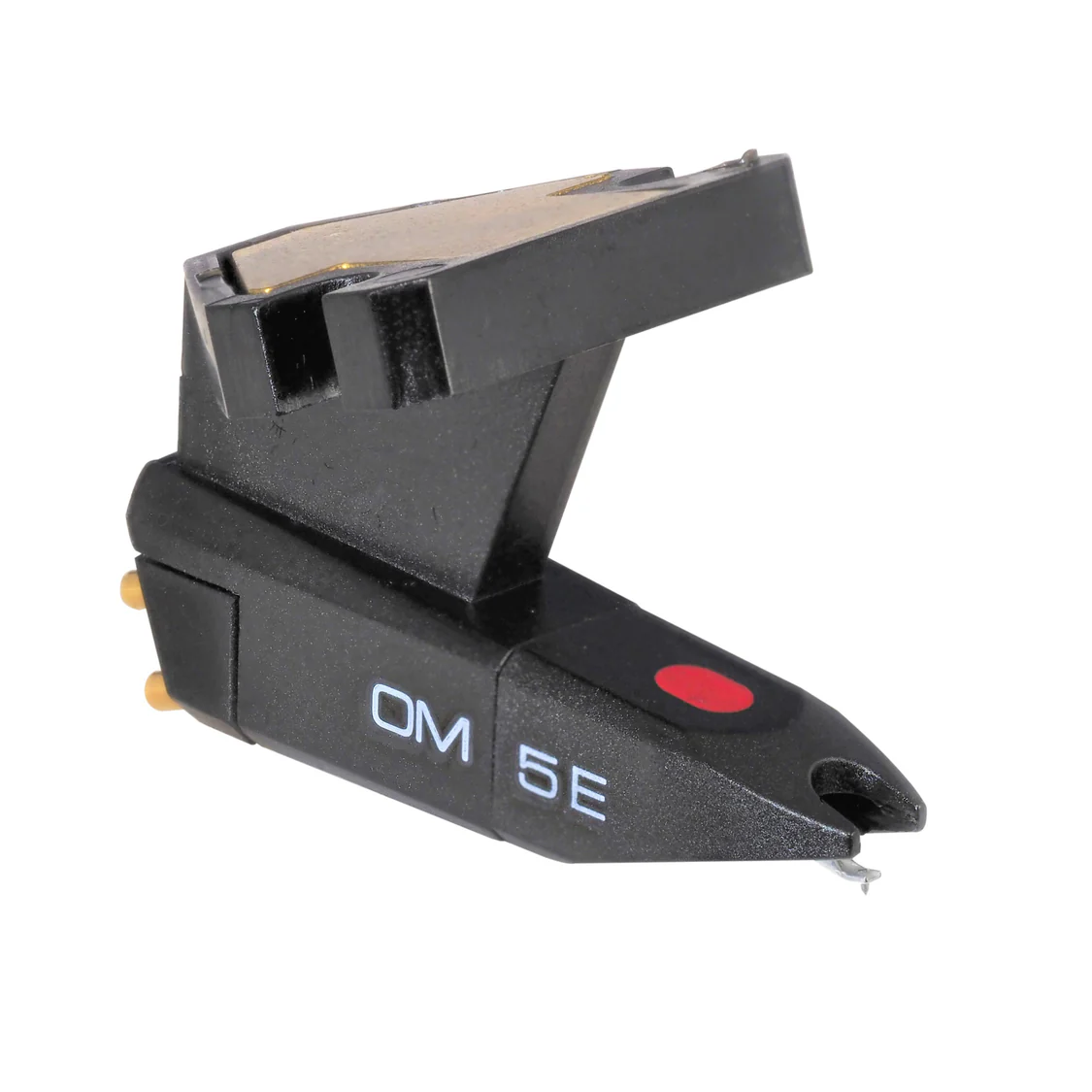

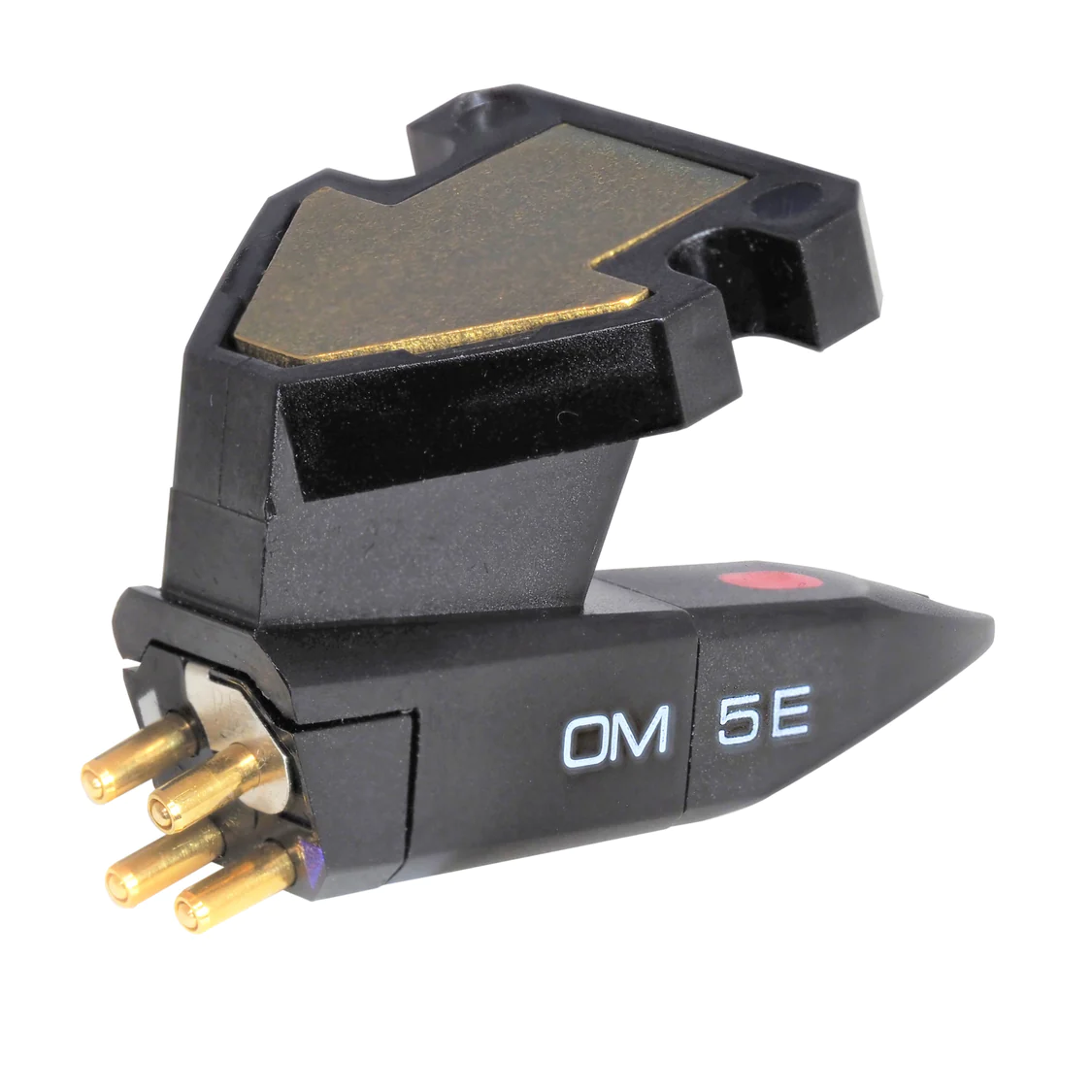

Ortofon Hi-Fi OM 5E Moving Magnet Cartridge

Ortofon Hi-Fi OM 5E Moving Magnet Cartridge

OM 5E features Elliptical stylus that provides balanced and distortion-free playback.

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any one of these cartridges will reveal Ortofon’s answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

$99

Wishlist
Compare
Share

Ortofon Hi-Fi OM 5E Moving Magnet Cartridge

The Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.

  • The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
  • The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
  • The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The Super OM 5E major improvements:

  1. By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation, and reduced distortion.
  2. OM Super cartridges models have split pole PINs which reduces magnetic losses at the treble end. This technology extends the frequency range and improves phase linearity.
  3. The OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound), which ensures high rigidity and freedom from resonances.
SKU: ortofon-om-5e Categories: ,
Weight 7.5 g
Dimensions 29 × 15 × 17 mm

Technical data



  • Output voltage – 4 mV
  • Frequency response  –  20-20.000 Hz
  • Tracking ability – 65 µm
  • Dynamic Compliance  –  20 µm/mN
  • Stylus type  –  Elliptical
  • Tracking force, recommended  –  1.75 g (17.5 mN)
  • Load resistance   –  47 kOhm
  • Load capacitance –   200-500 pF
  • Cartridge weight –  5 g
