Marantz CD60 CD Player

Marantz

Unveil New Sounds In Classic CDs

CD 60 is for those who cherish their CD collections and who seek to discover new details upon every listen

Luxurious Design Matches The Most Musical Sound

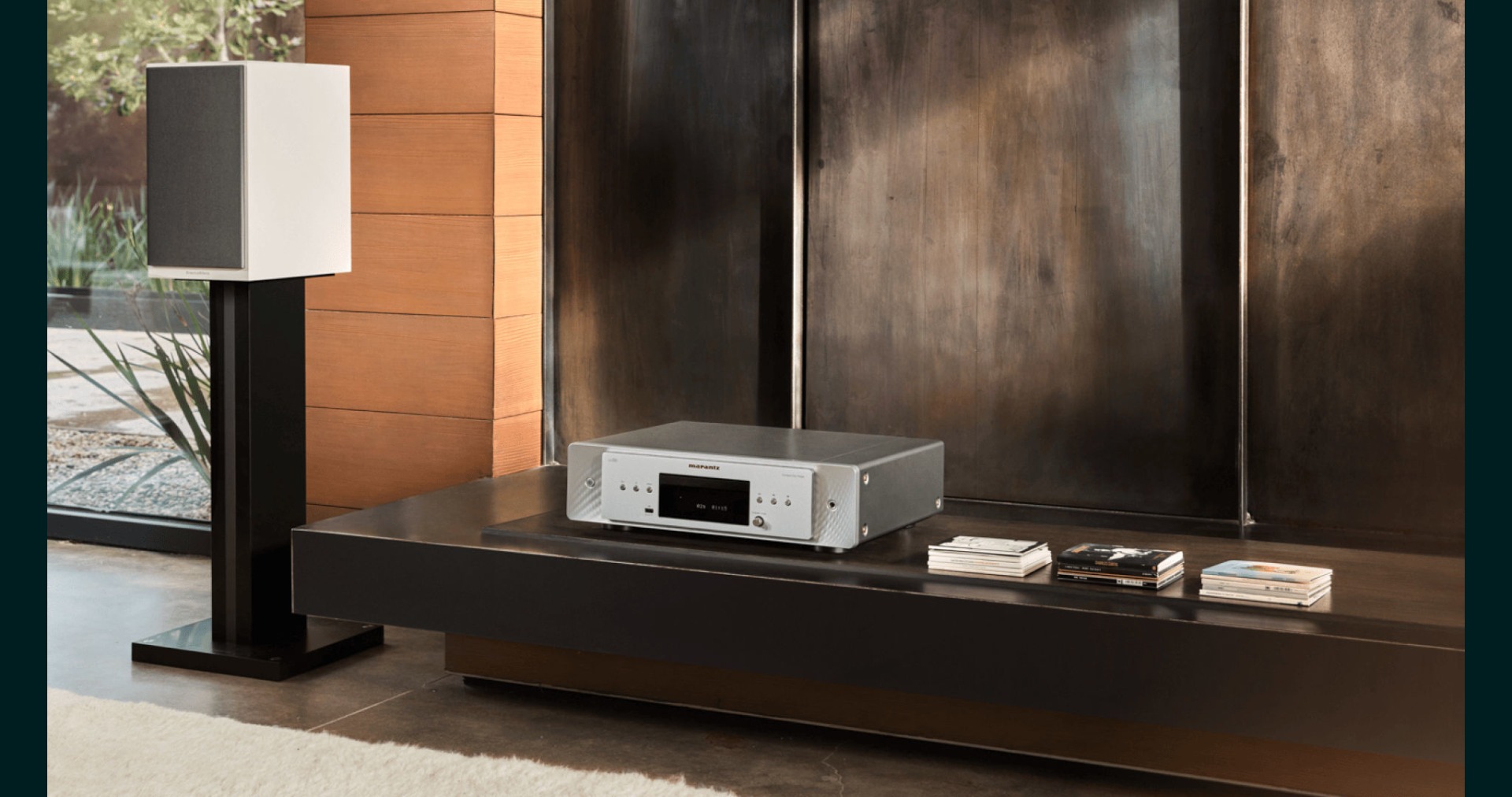

Architectural design, modern materials, and intuitive operation make CD 60 as incredible to behold as to hear.

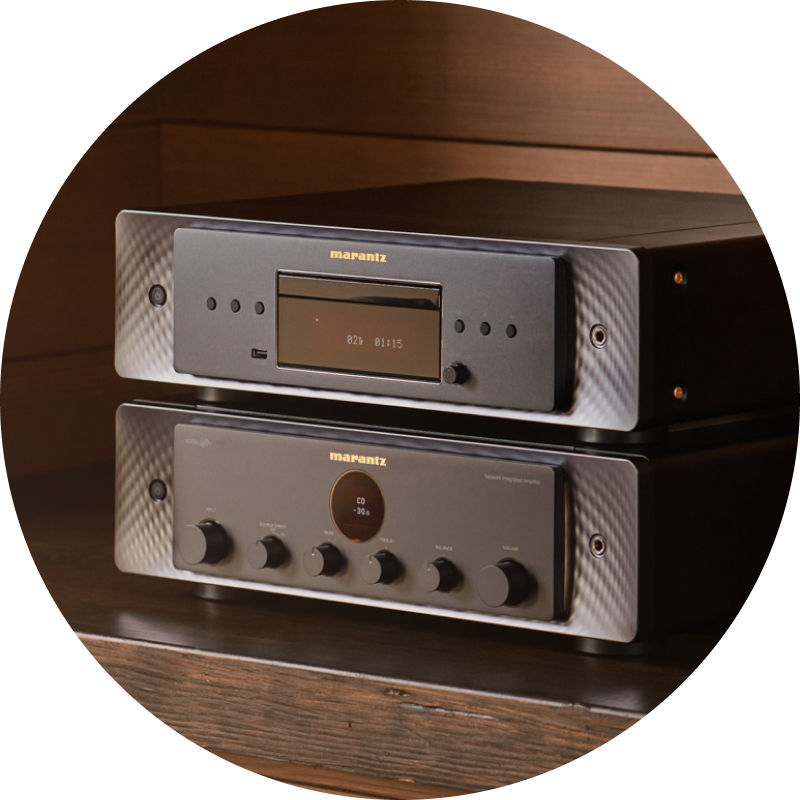

Pairs Beautifully With Marantz Amplifiers

Complimentary visual design plus compatible technology make CD 60 a natural companion to MODEL 40n, MODEL 30, or other Marantz amplifiers

$2,000

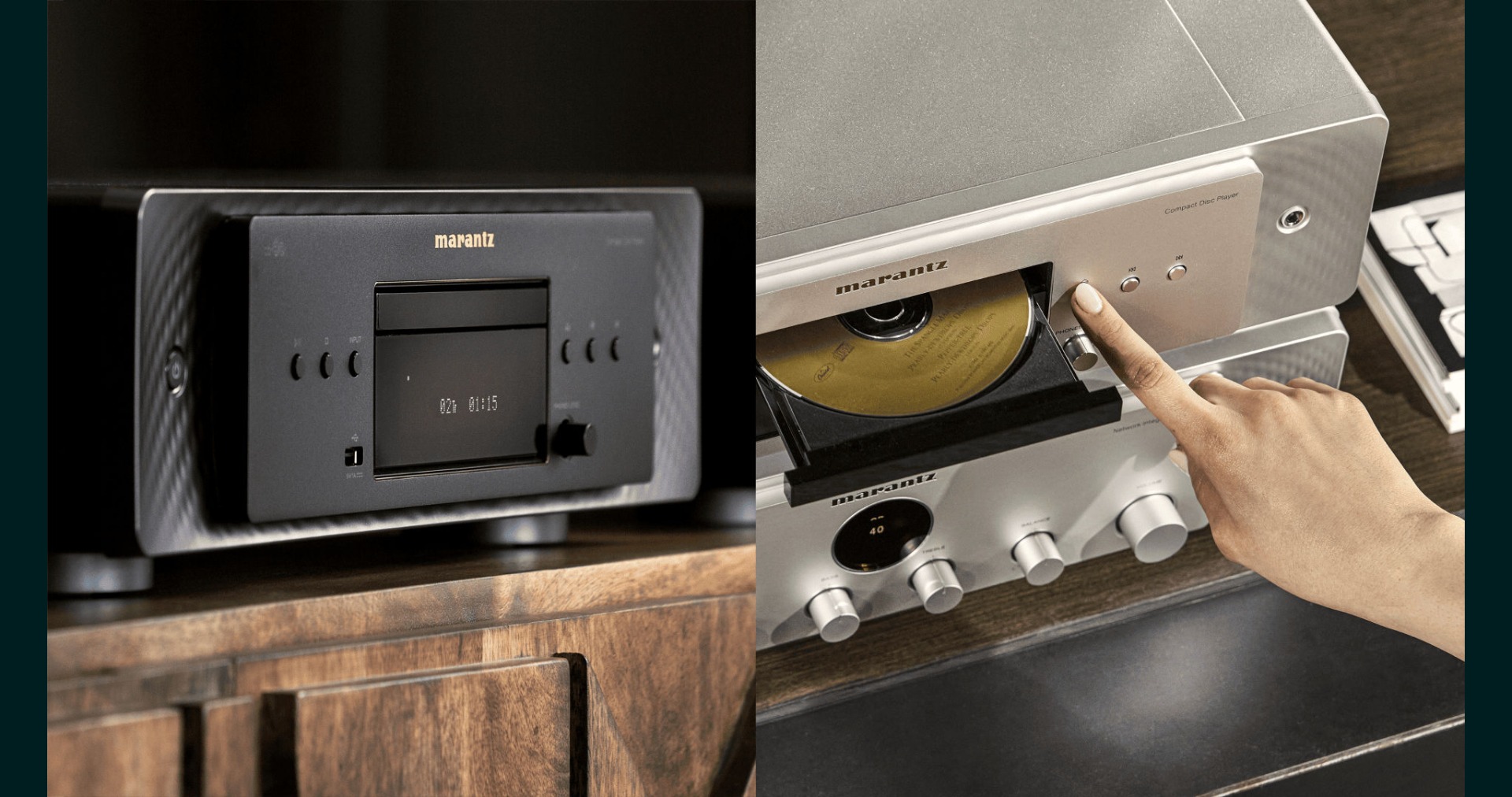

Iconic design for modern CD enthusiasts



Believe in Quality

Rich, Warm, and Spacious Sound

Expertly tuned by the legendary Marantz Sound Master for The Most Musical Sound. CD 60 is the CD player your cherished collection deserves.

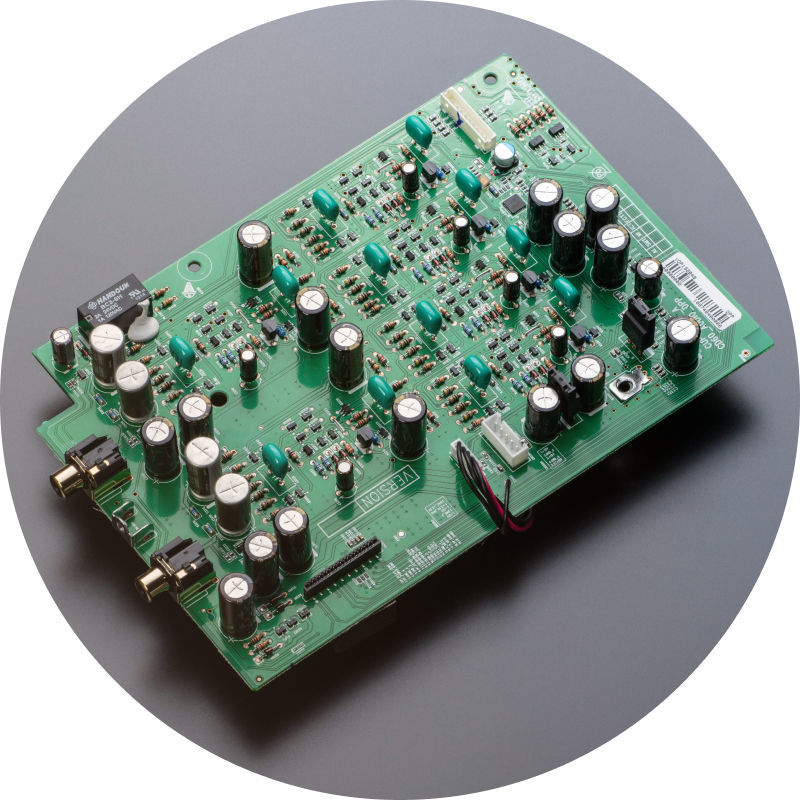

Optimized HDAM Circuit

In the CD 60, the proprietary HDAM circuit has been further optimized from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound

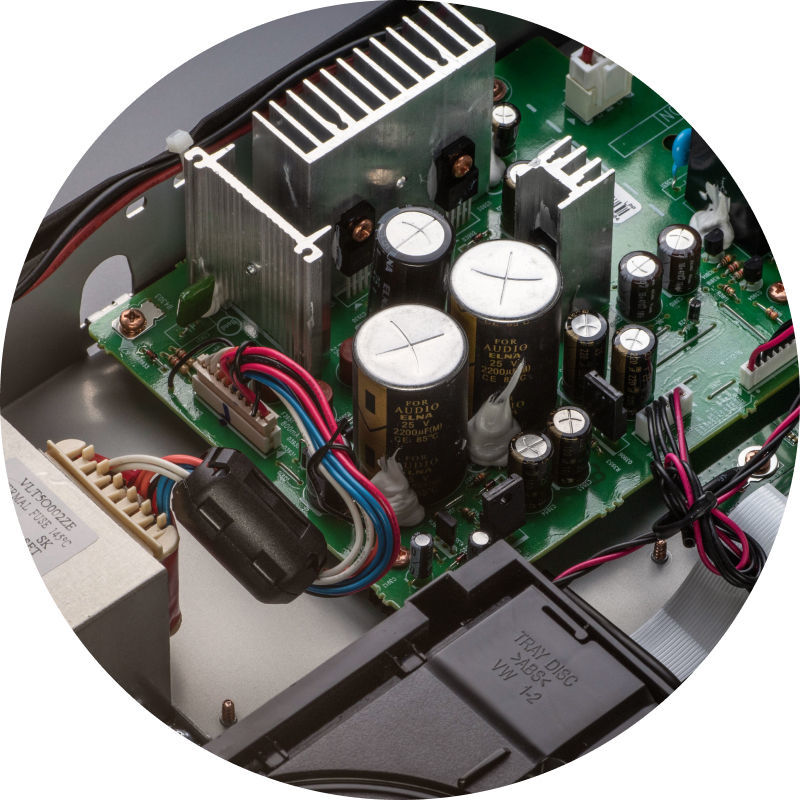

High-Current Power Supply

The CD 60 power supply uses high-speed, high-current Schottky barrier diodes, higher value current storage capacitors and improved voltage regulators compared to predecessor models in this class. Oversize capacitors in the power supply improve current stability and reduced noise during highly demanding listening sessions.

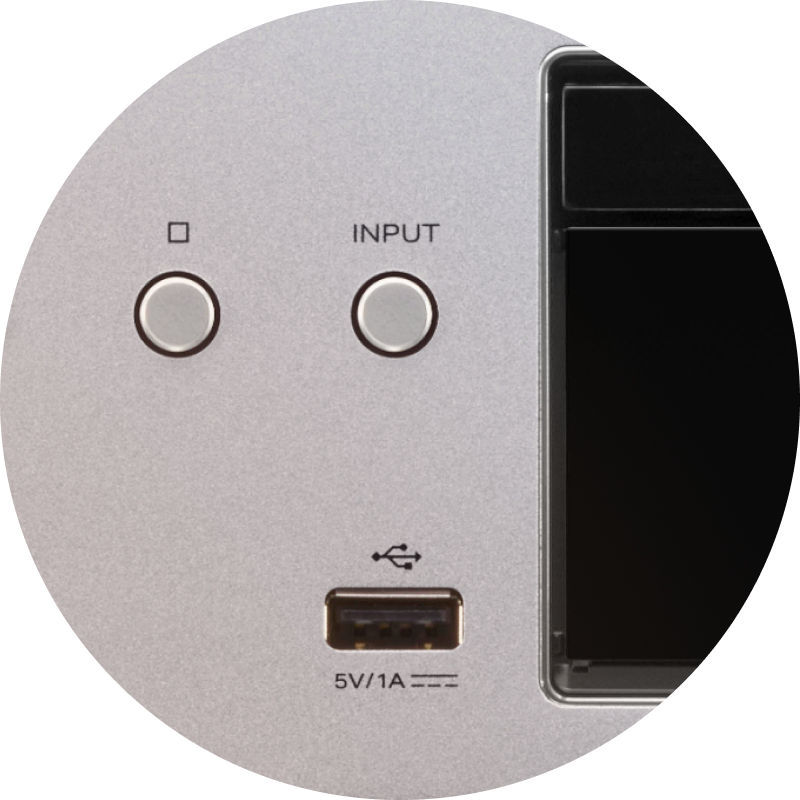

Plays Hi-Res Audio USB Sources

The CD 60 can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.

SKU: CINEMA70S/AU1B-1-2-1 Categories: ,
Weight 7500 g
Dimensions 396 × 442 × 129 mm
Brand

General

  • Available in Silver/Gold or Marantz Black
  • Aluminium Front Centre Panel

Specifications

  • Frequency Response:
    – 2Hz-50kHz (-3dB) USB DSD
    – 2Hz-50kHz (-3dB) USB PCM
    – 2Hz-20kHz CD
  • Total Harmonic Distortion:
    – 0.0006% USB DSD
    – 0.0005% USB PCM 24bit
    – 0.0015% CD
  • Signal to Noise Ratio:
    – 110dB USB DSD
    – 118dB USB PCM 24bit
    – 118dB CD
  • Dynamic Range:
    – 110dB USB DSD
    – 118dB USB PCM 24bit
    – 101dB CD
  • 2.2Vrms Line Output Level
  • 28mW / 32 Ohms Headphone Output Level
  • 38W Power Consumption PEAK
  • 0.3W Standby Power Consumption

Audio Features

  • New HDAM + HDAM-SA2
  • EI Power Transformer
  • High Slew Rate Op-Amp + HDAM-SA2 Headphone Amp
  • 3 Gain Settings for Headphone Amp
  • 2 Selectable Digital Filters

Connectivity / Playback Capability

  • Compatible with CD, CD-R/RW, WMA, MP3, AAC Discs
  • Compatible with DSD, WAV, ALAC Data Discs
  • 1 Pair Gold Plated RCA Outputs (Fixed volume)
  • TOSLink Digital Optical Output
  • Coaxial Digital Output
  • RC-5 In and Out Remote Control Bus Terminal
  • USB Port on Front Panel for Mass Storage (5V, 1A)
  • FAT16/FAT32 USB support
  • USB Format Support: FLAC, WAV, AIFF, ALAC, DSD
  • DSD Native Playback
  • USB Firmware Update

Ease of Use

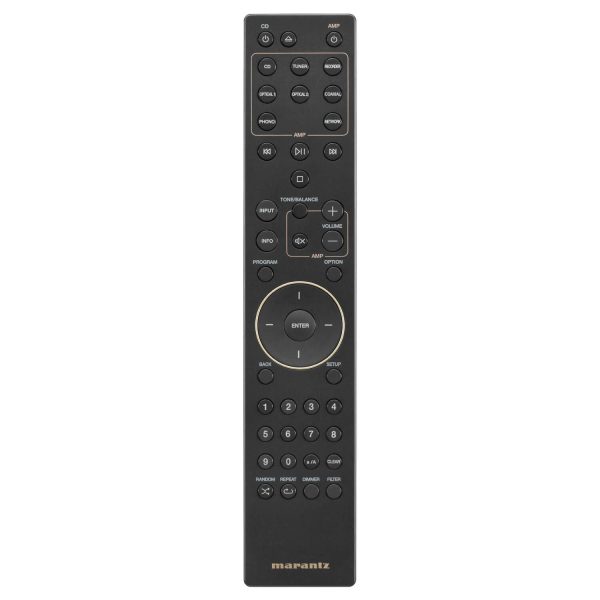

  • System Remote Control (Marantz Amplifier and CD Remote)
  • Front Panel Buttons: Power, Play/Pause, Stop, Input Select, Open/Close Tray, Fwd, Rev
  • Headphone Volume Control Knob
  • 3 Level Dimmer +Off control of Front Panel Display
  • Control with App via Network Player (Remote Control Bus, requires Marantz Amplifier with App Control)
  • Last Function Memory
  • Timer Play (Need external audio timer. Selectable in menu
  • Auto Standby Mode

Dimensions

  • 442mm Width
  • 129mm Height
  • 396mm Depth
  • 7.5kg
