Marantz AV7706 11.2ch 8K AV Pre-amp w/ HEOS

Due to our distributors restriction, we cannot sell this product online. Please call (02) 9600 6655 for Special Price & to order this product. The product may also be

Out of stock


  • 11.2 channel AV Pre-Amplifier
  • Dolby Atmos, DTS:X, IMAX, Auro 3D
  • Built-in HEOS Wireless Multi-Room
  • Works With: Alexa / Google / Siri
  • AirPlay2, 2-way Bluetooth, Wi-Fi
  • 8 HDMI inputs, 3 x HDMI outputs
  • 8K, Dynamic HDR, Dolby Vision, HLG
  • Audyssey MultEQ XT, LFC/Sub EQ

$3,999.00

Out of stock

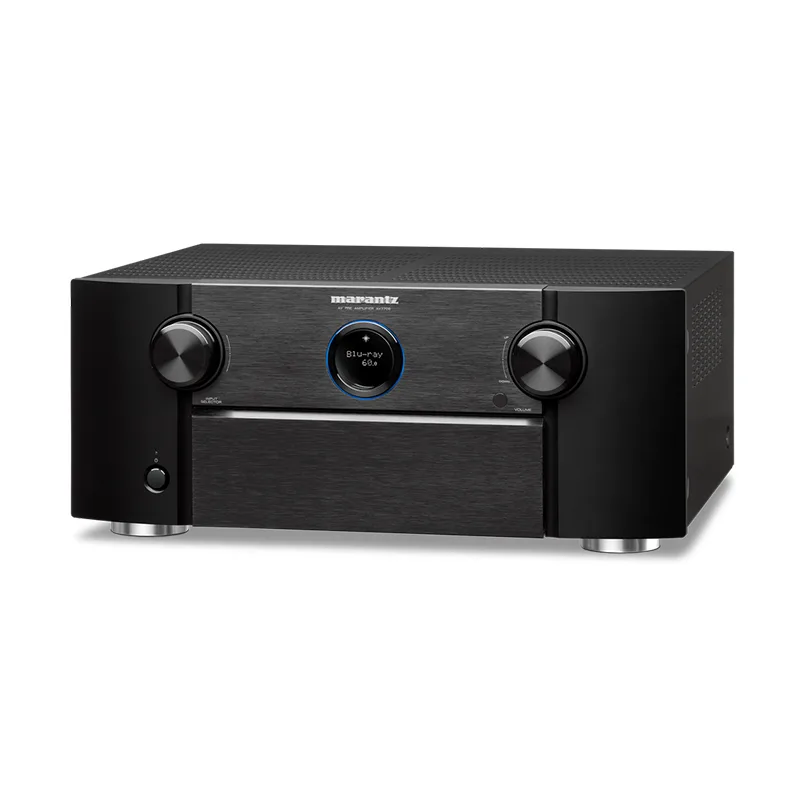

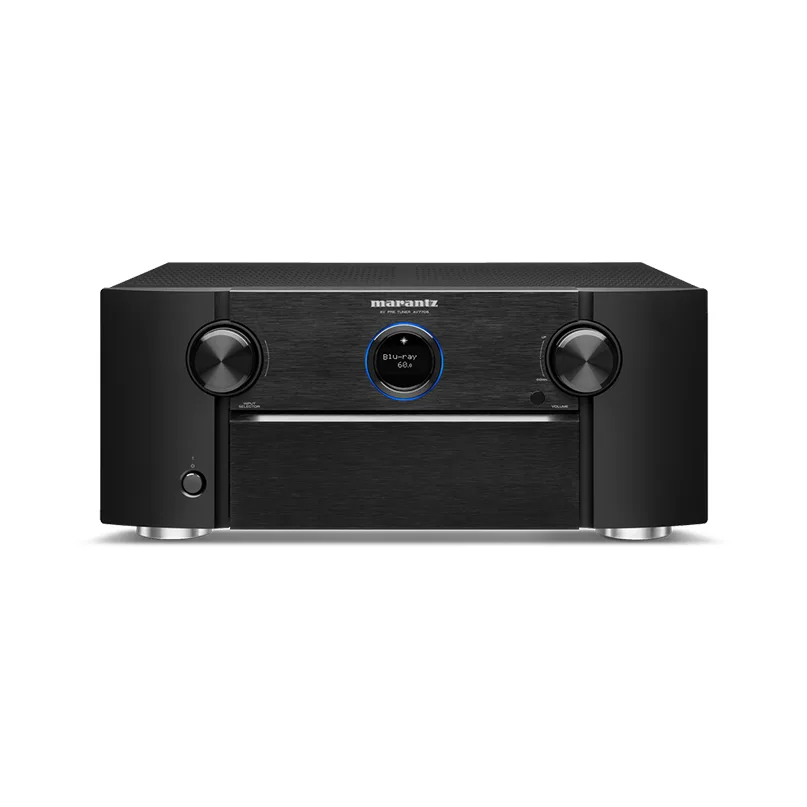

AV7706 11.2CH 8K Ultra HD AV Surround Pre-Amplifier with HEOS Built-in
The AV7706 is made for home cinema enthusiasts who want everything, versatility, flexibility and musicality. The Pre-Amplifier expertly handles any kind of high-resolution stereo or multichannel audio format. Enjoy superb surround sound audio quality from the latest formats including Dolby Atmos, DTS:X, IMAX Enhanced and Auro-3D. The AV7706 enhances audio quality by delicately handling all signals via the Marantz’s own current feedback HDAMs amplifier modules, before passing them to the high-quality 11.2 channel XLR or 11.2 RCA outputs and separate power amps.

Enjoy exquisite video performance thanks to the latest HDMI technologies such as 8K/60Hz pass-through or upscaling, various HDR format support including HDR10, HDR10+, Dolby Vision, Hybrid Log-Gamma (HLG) and Dynamic HDR, as well as the latest gaming technologies such as 4K/120Hz pass-through, Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM).

Extensively tuned by world-renowned sound acousticians at the most state-of-the-art facilities, the new Marantz AV7706 leverages decades of experience in Hi-Fi to drive exceptional, audiophile-quality surround sound for all your entertainment.

Key Features:

  • Premium-performance AV pre-amplifier with 11.2 channel XLR pre-out for maximum home cinema flexibility and musical fidelity
  • Featuring the most advanced three-dimensional audio formats: Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X, IMAX Enhanced and Auro-3D processing are all supported to allow you to listen to all of your favourite audio styles.
  • Advanced 32-bit Conversion on All Channels: For optimum fidelity and the widest dynamic range with lowest distortion, the AV7706 features advanced reference-class 32-bit AKM D/A converters on all channels. This ensures consistent high fidelity and precise channel matching across all channels for the ultimate listening experience.

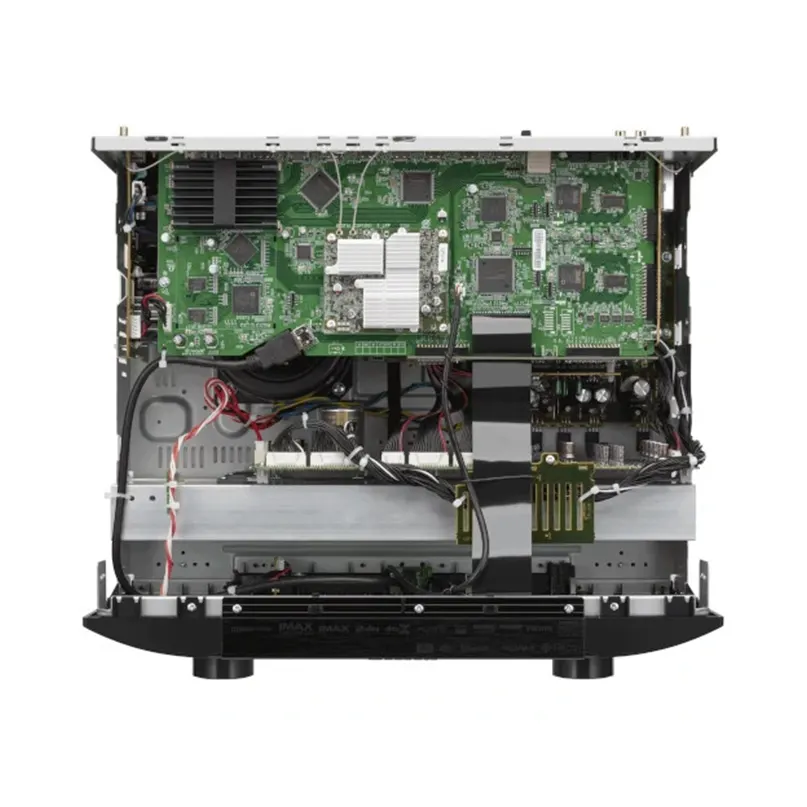

  • Exclusive components elevate the Marantz sonic signature: Marantz proprietary HDAM circuit boards, Current Feedback circuitry, AKM AK4458 32-bit D/A converters, and Hybrid PLL Clock Jitter Reducer produce more detailed, dynamic sound.
  • Audyssey MultEQ XT32 automatized setup and room acoustic correction with Dynamic Volume, Dynamic EQ, Sub EQ HT and Low Frequency Containment deliver a full-range balance, including deep bass with improved definition.
  • 8K/60Hz and 4K/120Hz pass-through support for every entertainment need: With the latest technology in HDMI support, enjoy 8K quality video from your 8K source devices or with 8K upscaling from Full HD or 4K sources.
  • HDMI eARC Object-Based Audio Support: eARC (Enhanced Audio Return Channel) supports the transmission of 3D audio from your TV with a single HDMI connection for the simplest setup.
  • The greatest technology for home cinema: Support for the latest HDR formats including HDR10, HDR10+, HLG, Dolby Vision, 4:4:4 colour resolution and BT.2020, as well as Dynamic HDR provides exceptional picture quality for brightness, clarity and contrast.
  • The Next Level in Gaming: Enjoy your gaming with 4K/120Hz pass-through, as well as Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM), which reduces or eliminates lag and frame tearing.
  • HEOS Built-in: Almost unlimited music sources: Stream from music services like Spotify Free and Premium, Amazon Music HD, Tidal and more, or stream directly from smart devices via AirPlay 2 or Bluetooth
  • Phono EQ Stage with HDAM: The HDAM component of the Marantz AV7706 outperforms op-amp solutions due to its high speed and maintains a clean audio signal for exceptional sound performance.
  • Dual Subwoofer Outputs: Surround yourself with even, accurate bass. The AV7706 features two subwoofer outputs to smooth low frequencies and improve bass dispersion, avoiding peaks and audible dips. Connected subwoofers can be calibrated independently thanks to Audyssey Sub EQ HT technology for more seamless bass performance tailored to your room.
Weight 10400 g
Dimensions 411 × 440 × 185 mm
Brand

Multichannel Surround

DTS Neo:X / DTS Neural:X No / Yes
DTS Virtual:X Yes
IMAX Enhanced Yes
Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization Yes / Yes / Yes
Dolby TrueHD / Dolby Atmos / Dolby Surround No / Yes
Auro 3D Yes
Audyssey DSX No
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 11.2

Sound Enhancements

Copper Plated Chassis No
Power Transformer: Toroidal / EI No / Yes
Current Feedback Topology Yes
Hyper Dynamic Amplifier Modules (HDAM) Yes
Pure Direct Yes
Gold plated RCA terminals Yes
Clock Jitter Reducer Yes
Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes
Compressed Audio Enhancer: MDAX2 Yes

Network

HEOS Multi-room and Streaming Yes
Network Audio Sharing Yes
Lossy formats MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless Playback Yes (FLAC, WAV ,ALAC ,DSD)
Internet radio Yes (TuneIn)
Other Streaming Services * Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Compatible with Remote APP for Smart Phones Marantz 2016 AVR RemYeste
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes

HDMI

HDMI Inputs: Back / Front 7 / 1
HDMI Outputs: Main / Zone 2 / 1
Video Conversion Analog -> HDMI Yes
Analog to HDMI Scaling 480i/576i up to 8K 60/50
HDMI to HDMI Scaling up to 8K 60/50
GUI Overlay on HDMI Yes
Enhanced ARC Yes
3D Signal Pass-Through Yes
4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes
HDMI Pass-Through in Standby Mode Yes
Picture Adjust / Noise Reduction Yes / Yes
CEC Yes
DSD Audio Capability Yes
Audio Return Channel Yes
Auto LipSync Yes

Multi-Room / CI

HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room Zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout No / Yes
Zone HDMI Output from HDMI Source Yes
IP Control / RS232 Control / Web Control / App Control Yes / Yes /Yes / Yes
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 2
HDMI Diagnostics Yes

Others

Auto Speaker Setup by Microphone Audyssey MultEQ XT32
FL Display 2 lines + port hole
Graphic User Interface – GUI Advanced
ISF Certification Yes
GUI Languages 3
Smart Select Yes
Firmware Update by Network USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes
ECO Mode No
Auto Power off Yes
Sleep Timer Yes

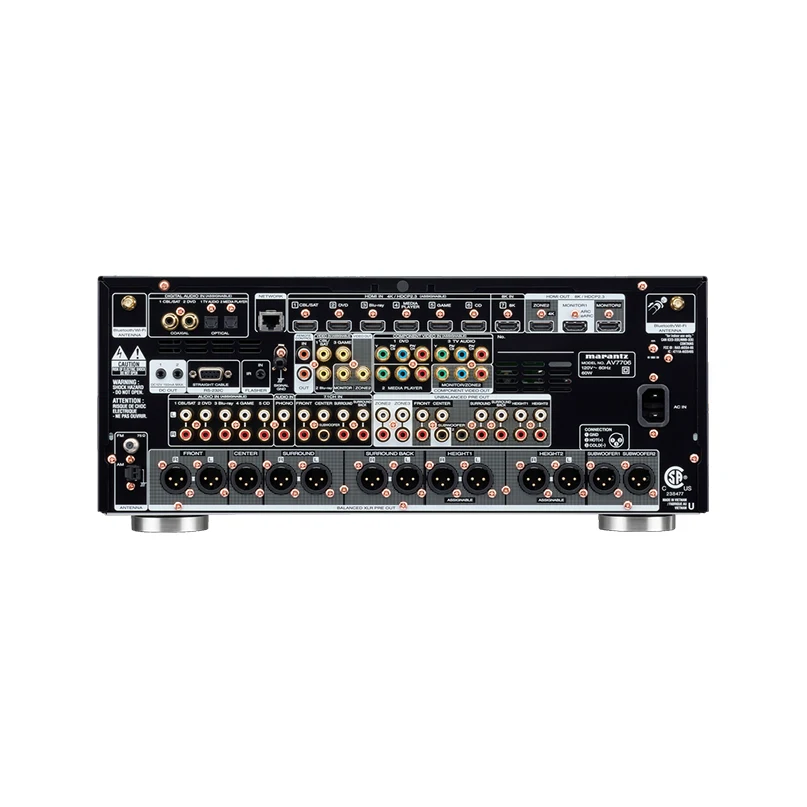

Inputs/Outputs

Composite In / Out 3+1 / 2
Component In / Out 3 / 1
HDMI In / Out 7+1 / 3
Multi-Room Video Out: Video / HDMI Yes / Yes
Analog In / Out 5+1 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: Analog / Digital 2 / No
Multichannel Pre Out Yes (11.2 RCA & 11.2 XLR)
Subwoofer Out 2 (independant)
7.1 Multichannel Input Yes
Speaker A B assignable pre out
Bi-Amp Drive assignable pre out
Multi-Room Speaker Terminal pre out
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB Yes / Yes / No / Yes / Yes
USB Audio / Made for iPod® / Made for iPhone® Yes / No / No
AM/FM Tuner Yes

General

Metal Front Panel Yes
System Remote Control RC044SR
Pre-Programmed / Learnable / LCD Display Yes / No / No
Power Consumption in W 60
Power Consumption No-Sound (ECO on/off) in W No
Standby Consumption in W 0.2
CEC Standby Consumption in W 0.5
Network Standby Consumption in W 3.5
Network Control On Consumption in W TBD
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches
17.3 x 16.2 x 7.3
( 17.3 x 16.2 x 9.7 )
【 17.3 x 15.8 x 7.3 】
Weight in lbs. 22.9 (TBD)
