Magnat Omega 12 Powered Sub

Magnat Audio

Magnat Omega 12″ Powered Sub – The perfect addition to any hi-fi or home cinema system.



Thanks to a cone construction that has been specifically developed for the deep bass range and an extremely powerful amplifier, the Magnat Omega 12 Powered Sub is the perfect addition to any hi-fi or home cinema system.

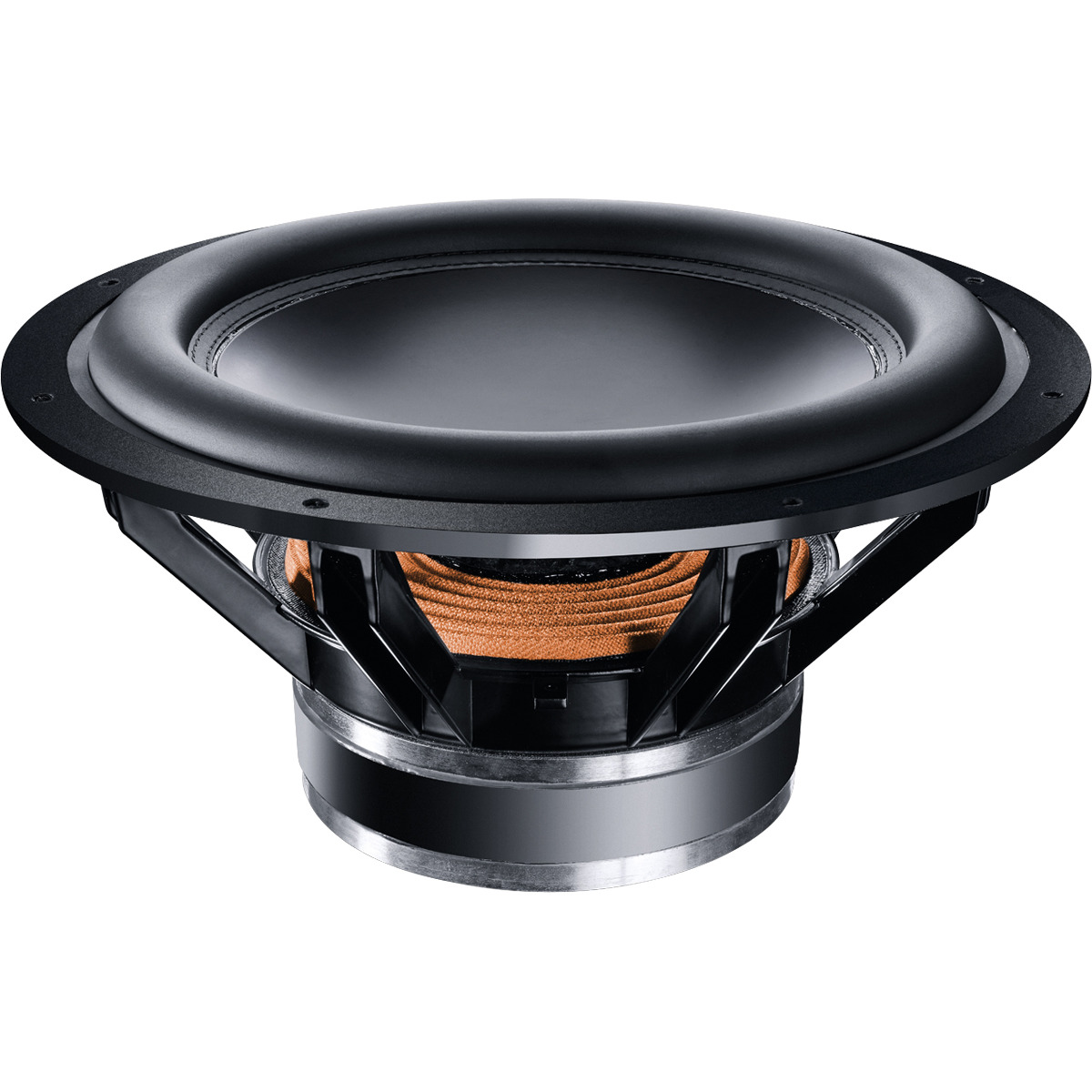

The specially hardened and coated material has been constructed in a dual cone configuration measuring an impressive 30 cm in diameter. The drive is provided by a 70 mm high-performance coil and a 170 mm ferrite magnet. Together with the bonded and additionally stitched longthrow surround, the overall result is a sub that has been optimized using Klippel laser technology and can optimally reproduce frequencies between 18 and 200 Hz.

The integrated Class-D power amplifier delivers a brutal 525 watts in continuous operation and up to 1100 watts of peak power. The high-speed DSP also linearizes the frequency response and enables continuous adjustment of the crossover frequency, the phase and the adjustable bass extension at 35 Hz. This means all of the prerequisites are in place for harmonious integration of the Magnat Omega 12 Powered Sub into a hi-fi or home cinema system.

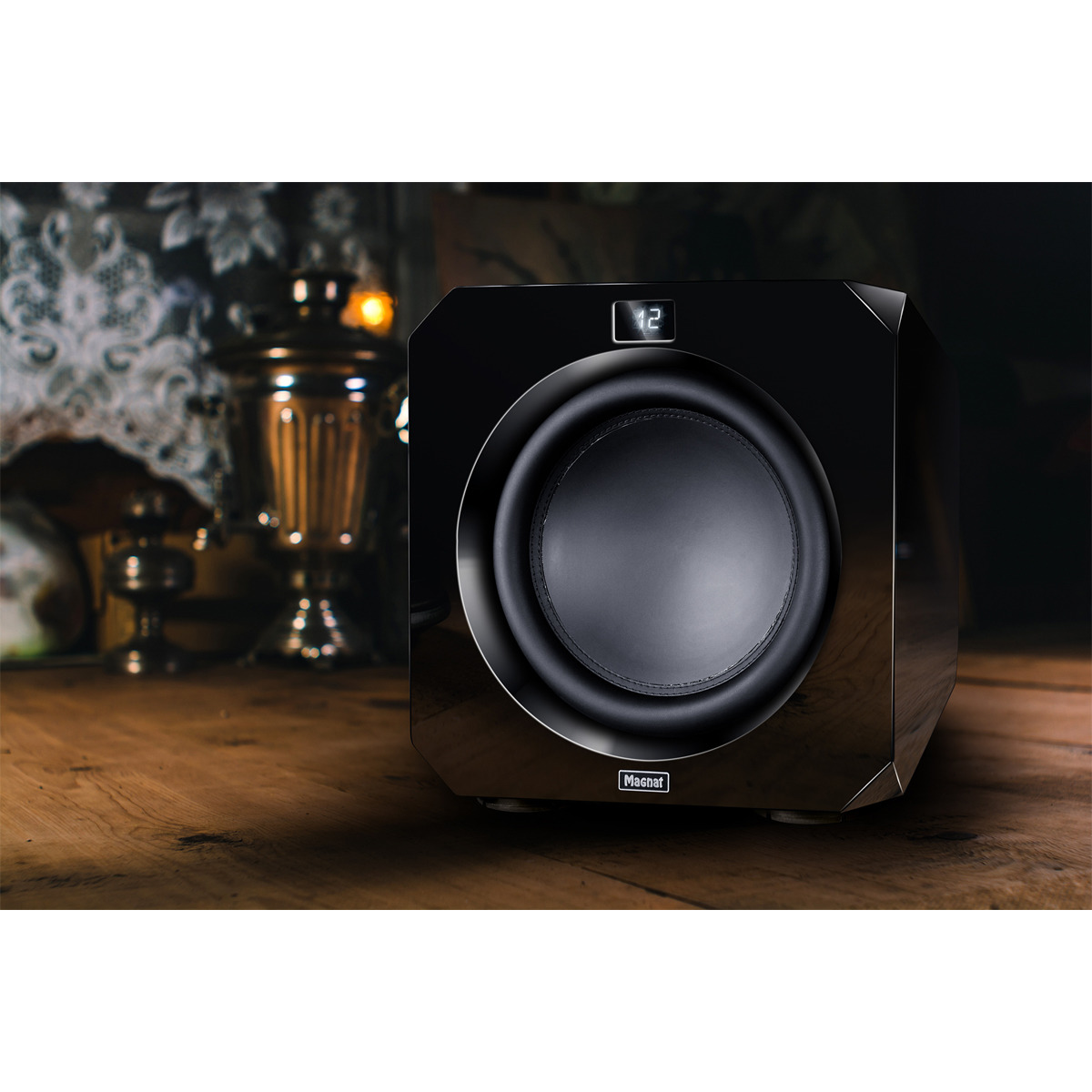

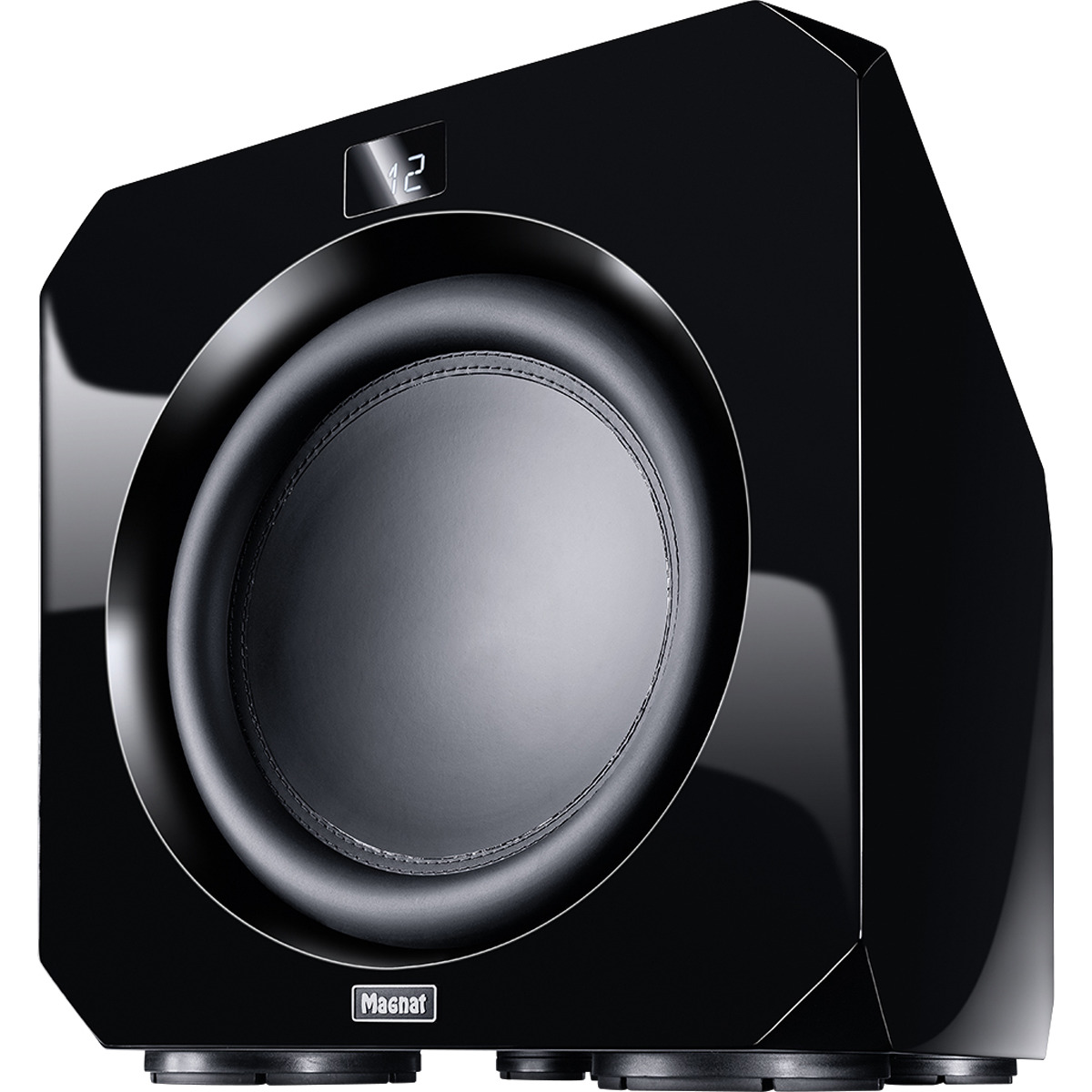

It couldn´t be much more compact: The developers have constructed an ultra-solid MDF housing that is hardly any larger than the 12 inch chassis. The enclosed construction radiates sound towards the front of the unit and thus minimizes room interference. In its high-gloss black finish, the Magnat Omega 12 Powered Sub is discreet yet elegant at the same time, immaterial whether it´s located in a prominent position or set up discreetly in the background.

Regardless of whether you have audiophile shelf speakers, floorstanding speakers or a home cinema solution – one or more active subwoofers such as the CS 12 are always a welcome addition. They relieve existing speakers of their duties in the deep bass range and inspire them to achieve acoustic feats.


  • High-performance active subwoofer with 30 cm long-throw woofer and extra-large diaphragm mount
  • High-power Class-D amplifier unit with up to 1100 watts of peak power
  • Enclosed housing construction for a deep and precise bass response
  • High-speed digital sound processor (DSP) for frequency response linearization and control of the limiter control circuit
  • Various setting options including adjustable bass extension for perfect combination with home cinema speakers

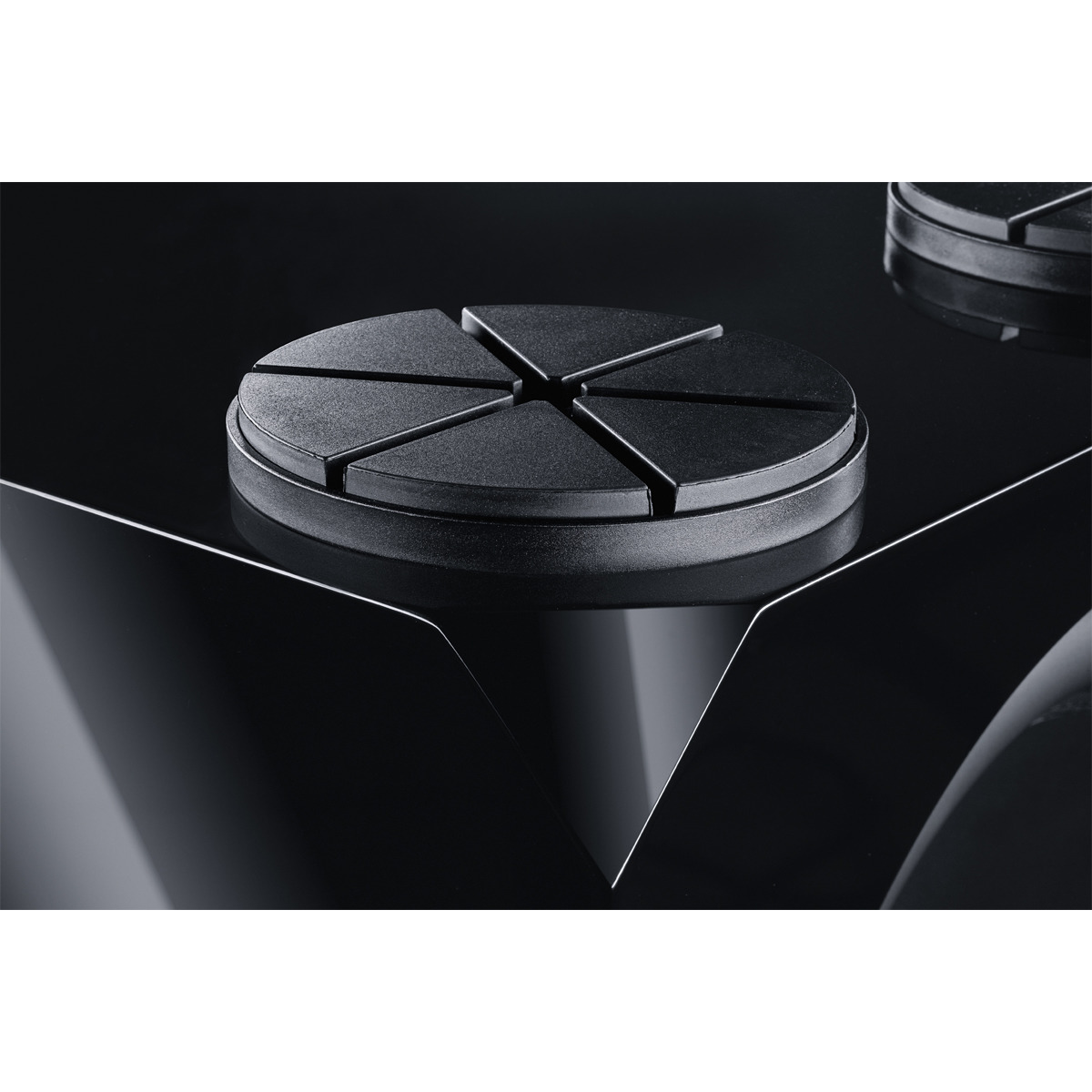

  • Innovative extended surface dampers (ESDs) for enhanced stability
  • Remote control for volume adjustment and a large display to indicate the current setting
  • Stereo low level inputs (RCA connections)
  • Magnat Omega 12 Powered Sub has Mains connection
  • Very sturdy, low-resonance MDF housing
  • Elegant high-gloss black finish

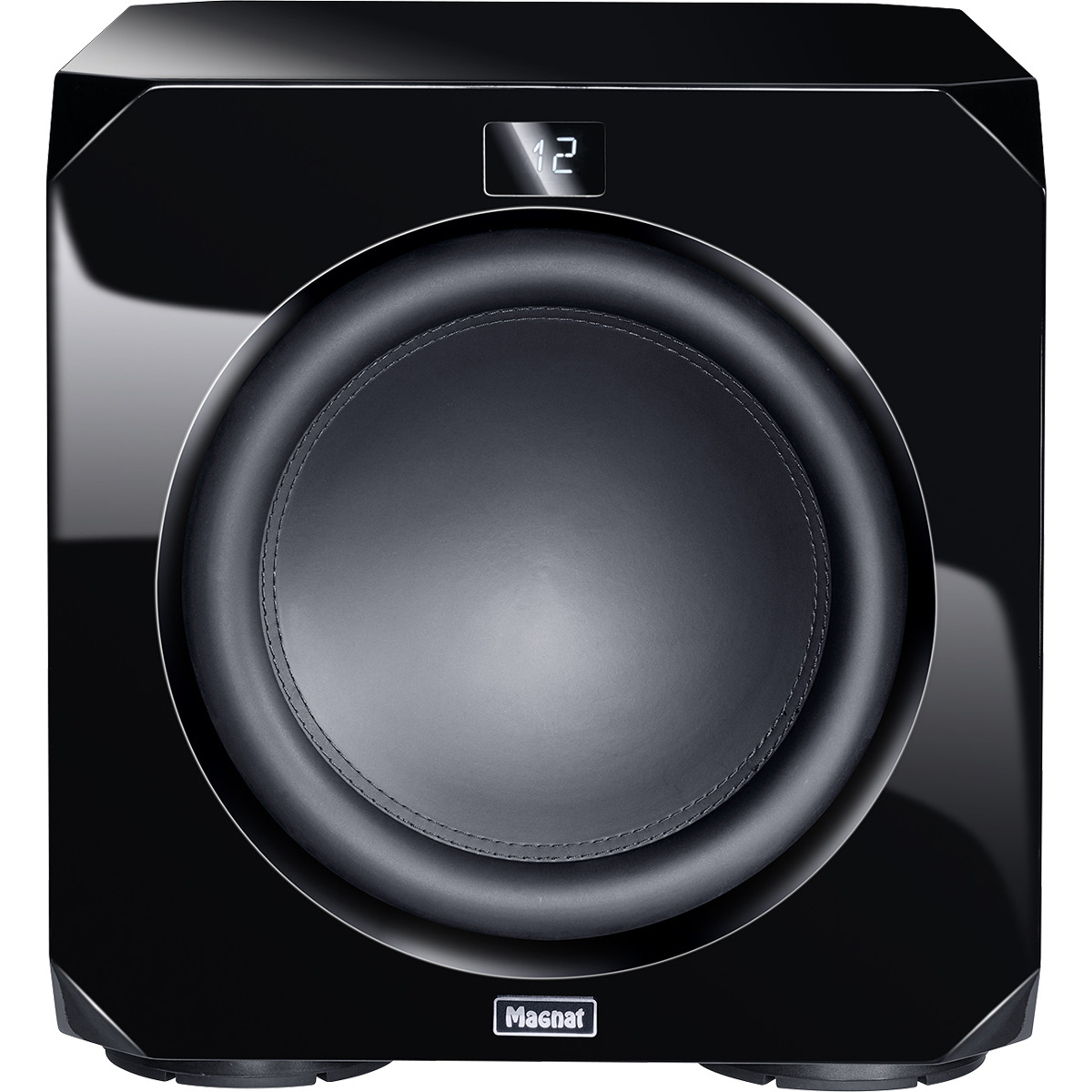

  • Bass speaker in a ‚front-firing‘ configuration
  • Enclosed housing construction for a deep and precise bass response
  • Large „Extended Surface Dampers“ (ESDs) for enhanced stability
  • High performance class-D amplifier
  • DSP-controlled filter and limiter unit
  • Magnat Omega 12 Powered Sub have adjustable volume

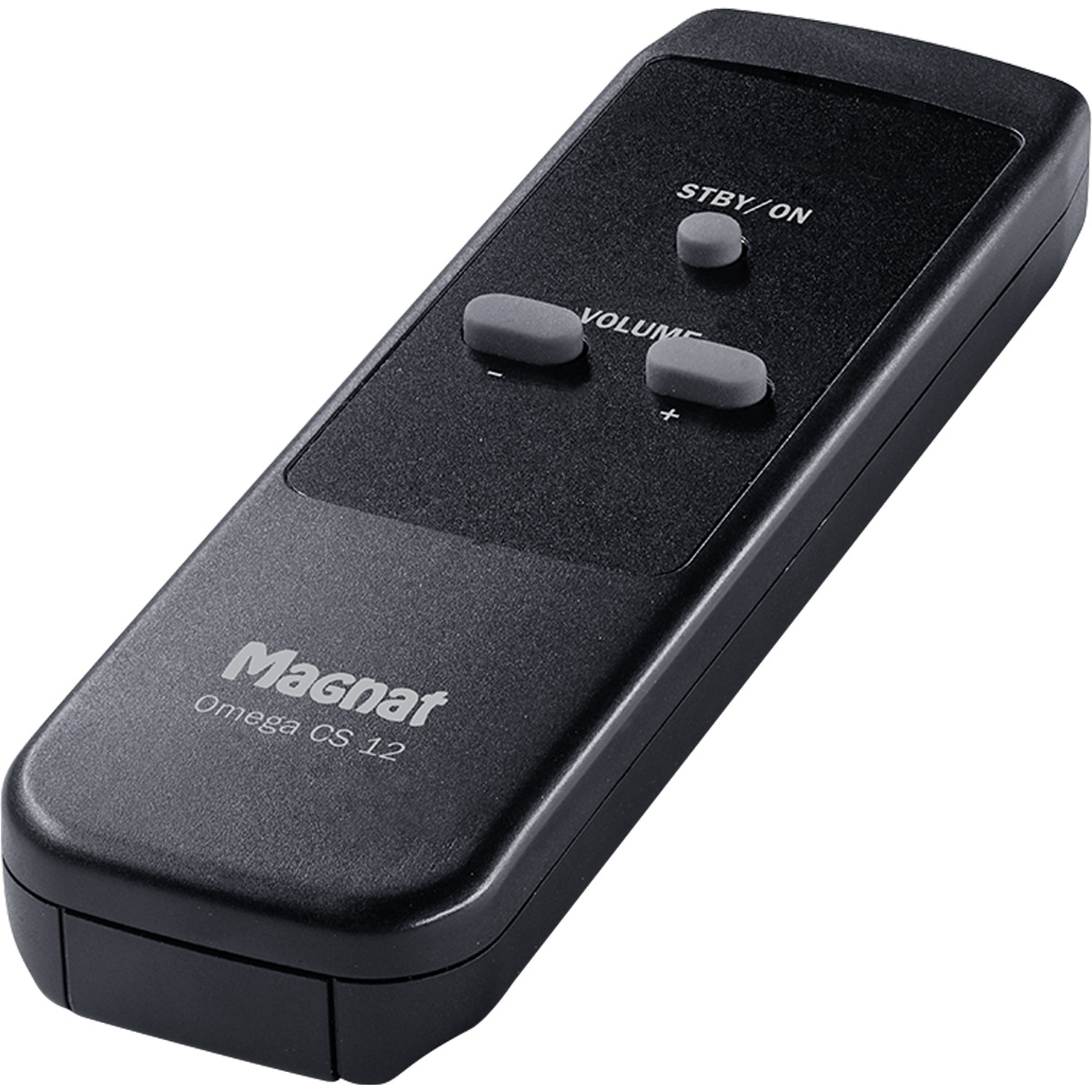

  • Volume and Power ON/STBY mode can also be controlled via remote control

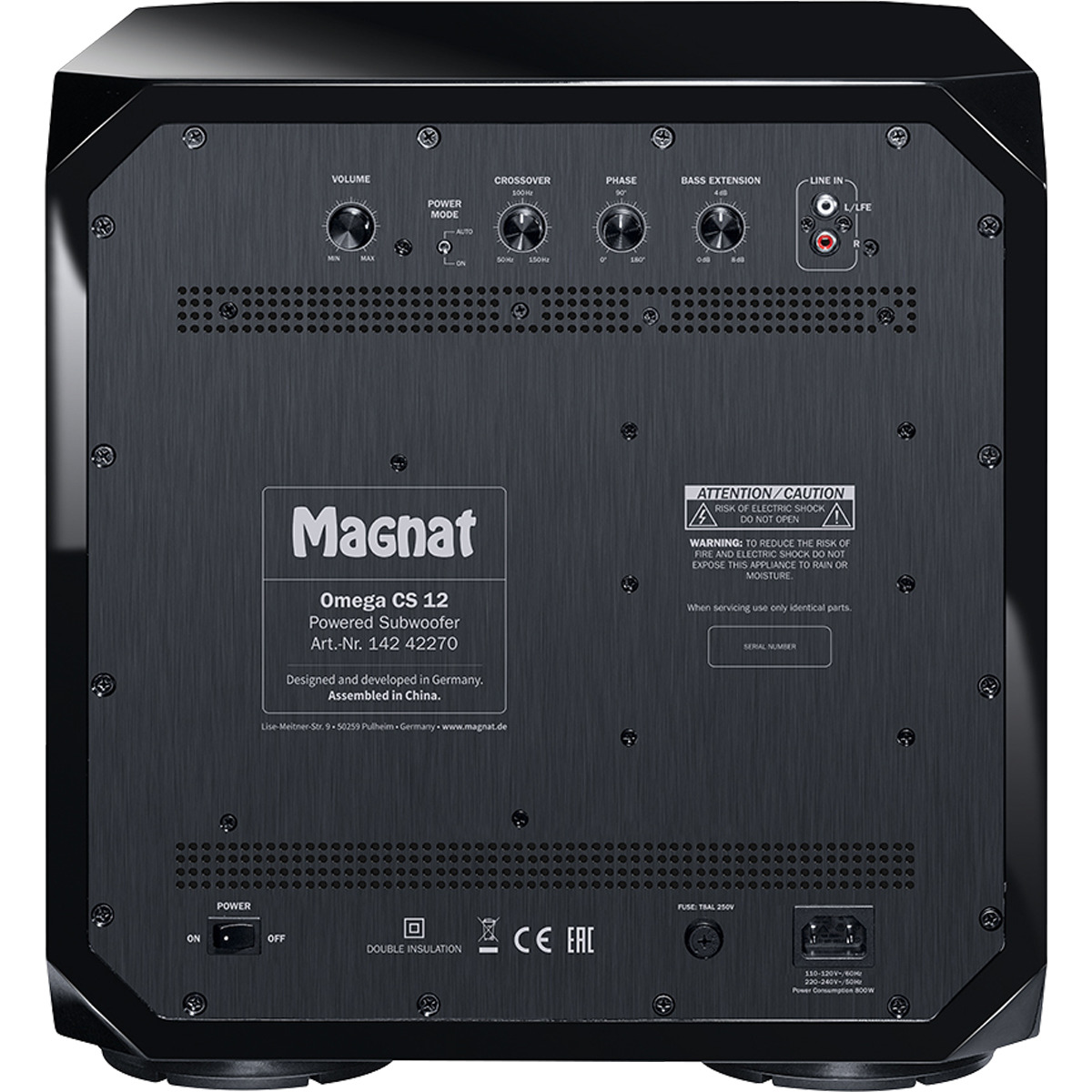

  • Crossover frequency can be adjusted between 50 and 150 Hz
  • Phase can be adjusted between 0° and 180
  • Adjustable bass extension between 0dB and +6dB at 35 Hz center frequency
  • Active frequency response equalization up to 150 Hz for easy integration into AV environments

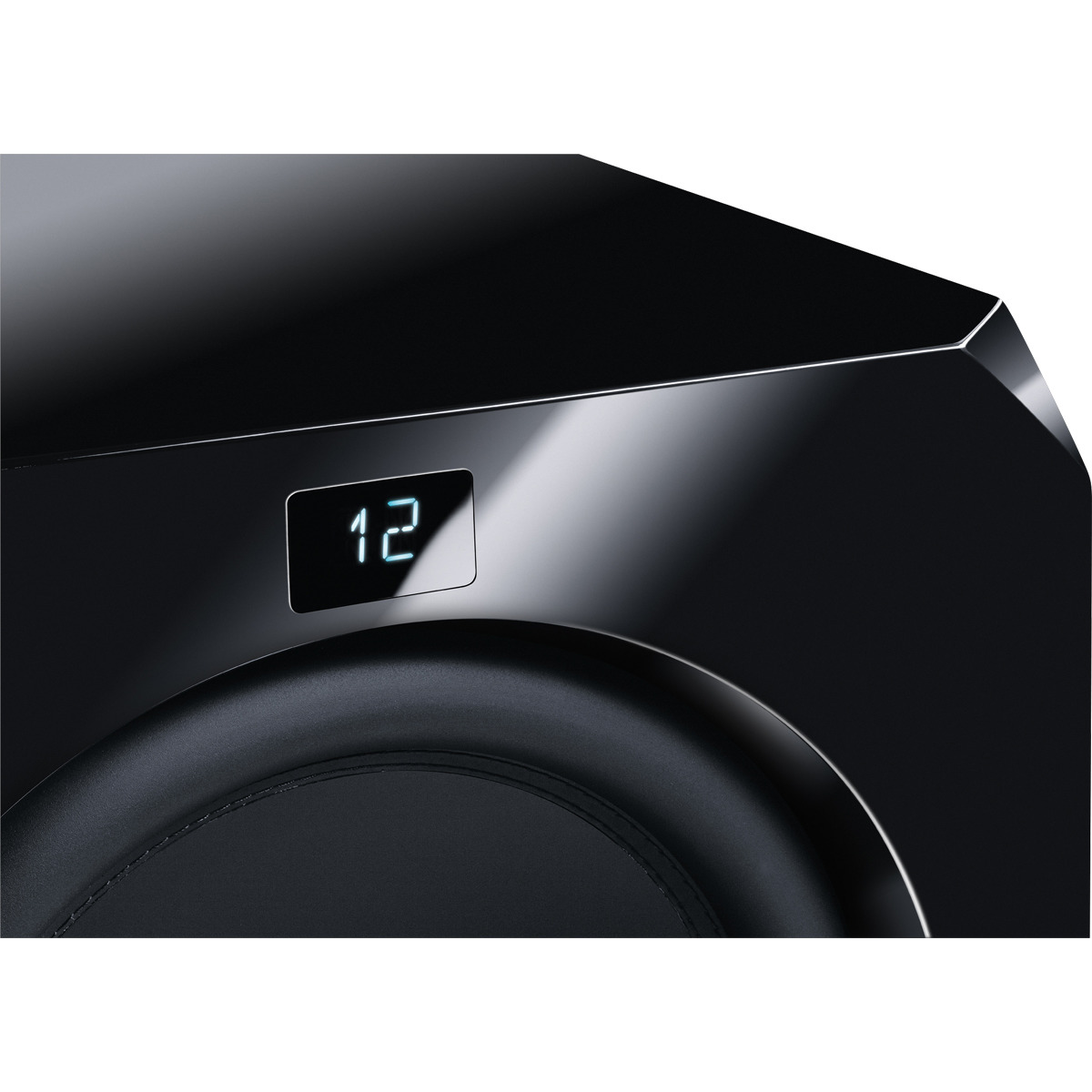

  • A large two-digit display indicates the current volume
  • Automatic standby function with a low power consumption of <0.5 watts (can be deactivated)
  • Mains voltage: 100-240 V
  • Magnat Omega 12 Powered Sub have Power switch

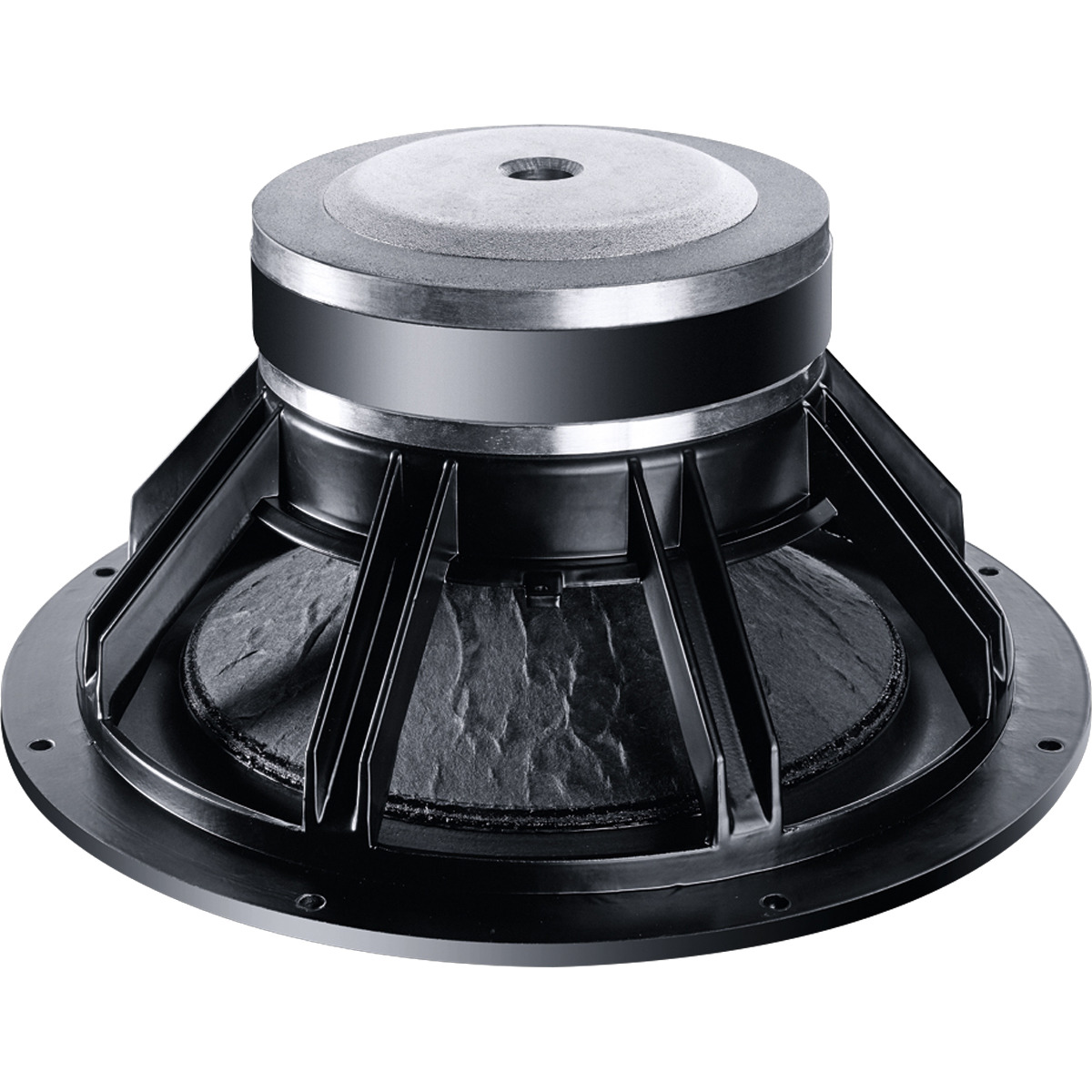

  • 300 mm high-power long-throw woofer with Klippel®-optimized magnet system
  • Magnet system with 170 mm high-performance ferrite ring
SKU: M-CS-12-B Categories: ,
Weight 2400 g
Dimensions 385 × 400 × 465 mm


  • PRINCIPLE Active closed subwoofer, ‘frontfire’
  • DRIVERS 1 x 12“ powered subwoofer
  • CROSSOVER FREQUENCIES 50 – 150 Hz adjustable
  • PHASE 0° – 180° adjustable
  • DIMENSIONS (WXHXD) Cabinet: 385 x 400 x 450 mm Cabinet dimensions incl. amplifier: 385 x 400 x 465 mm
  • WEIGHT 24 kg
