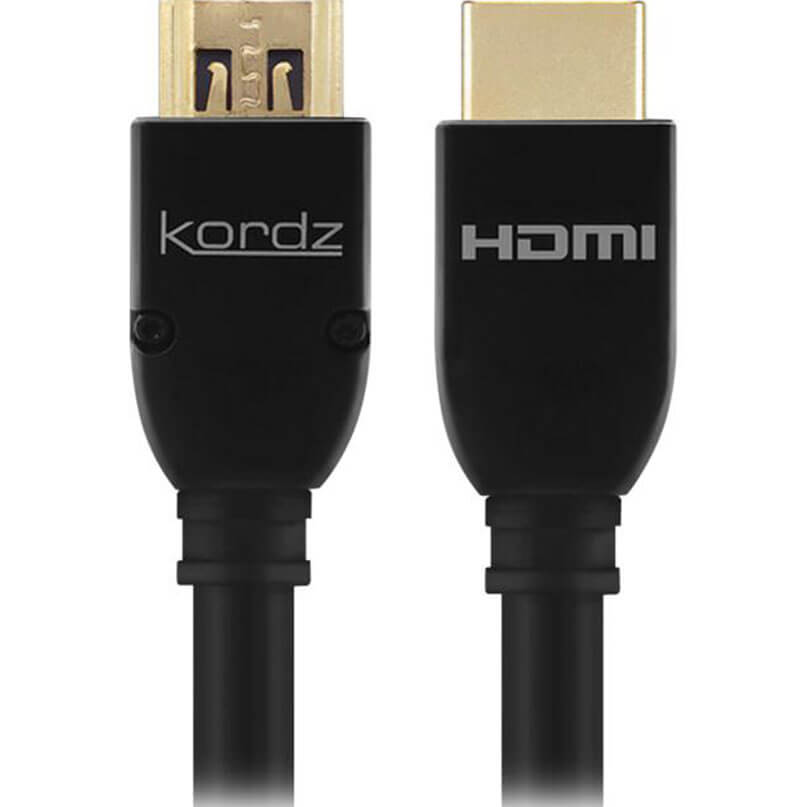

Kordz PRS3 (1.5m) 4K UHD 18Gbps PASSIVE HDMI CABLE


  • DPL Certified 4K 18G-DC
  • High Speed with Ethernet on all lengths
  • Passive in lengths 0.5m – 5m / 1.64? – 16.4?
  • 18mm wide connector engineered to fit through1?/25mm conduit
  • Induction soldered pin transitions for benchmark inter-terminal uniformity
  • Unique grip tab connectors with 3kg retention for permanent installations
  • 100% of units tested on the production line for electrical continuity on all pins, with full Bit Error Rate (BER) application test
  • UL CMG fire rated in all lengths

$82.00

Kordz PRS3 features a narrow profile full metal die-cast shell assembly behind a unique grip tab HDMI connector for 3kg receptacle retention capacity.

Engineered for high-performance applications and to mitigate connector dropout potential – not suitable for repeated plug/unplug events.

Brand

Technical Specification

HDMI CERTIFICATION ≤ 5.0m PASSIVE

HDMI CTS Certification:High Speed with Ethernet
DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
Supported Data Rate: > 6.0Gbpsc, 17.82Gbps aggregate (4K UHD)
Supported HDMI Clock: 27-340MHz

MECHANICAL

Cable Diameter: 0.5m – 3.0m: 30 AWG, 5.7mm/0.22” Ø | 5m: 28 AWG, 6.5mm/0.26” Ø
Mounting Length:0.5m – 3.0m: 30AWG, 47.0mm/1.85” | 5m: 28 AWG, 56mm/2.20”
Cable Bend Radius:0.5m – 3.0m: 30 AWG, 24.0mm/0.94” | 5m: 28 AWG, 28.0mm/1.02”
Retention Force (nominal):29.7N (3kg / 6.6lbs) +10/-5%
CONSTRUCTION

Primary Conductors: Solid 28-30 AWG OFC, length dependent
Insulation on TMDS:Foam-PE
Insulation on 4C + HEAC Pairs: HDPE/Foamed PE, length dependent
Shielding on TMDS Pairs: Al/Mylar
Shielding Overall: Al/Mylar + Al braid 80% coverage
Cable Jacket: UL CMG fire rated PVC
HDMI Connector Shell: Pressed steel with dual grip tabs, 1µ” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15µ” 24K Gold plated
Termination: Contactless IR inductionsoldering
HDMI Backshell:Charcoal powder coatedwith stoving varnish die-cast zinc alloy shell assembly
