Klipsch KI-396-B-SMA-II

Klipsch

  • Very high output capability with exceptional low-distortion clarity
  •  Compact 22.5º symmetrical trapezoidal design
  •  16 suspension points for (4 per side) for flexible mounting and rigging bar compatibility
  • 15” cast frame heavy-duty woofer
  • Large 3” (7.62cm) titanium diaphragm high-frequency compression driver
  • Internal high current full-range crossover

Please contact one of our team members to check for availability and latest offer (02) 9600 6655

This product is currently out of stock and unavailable.

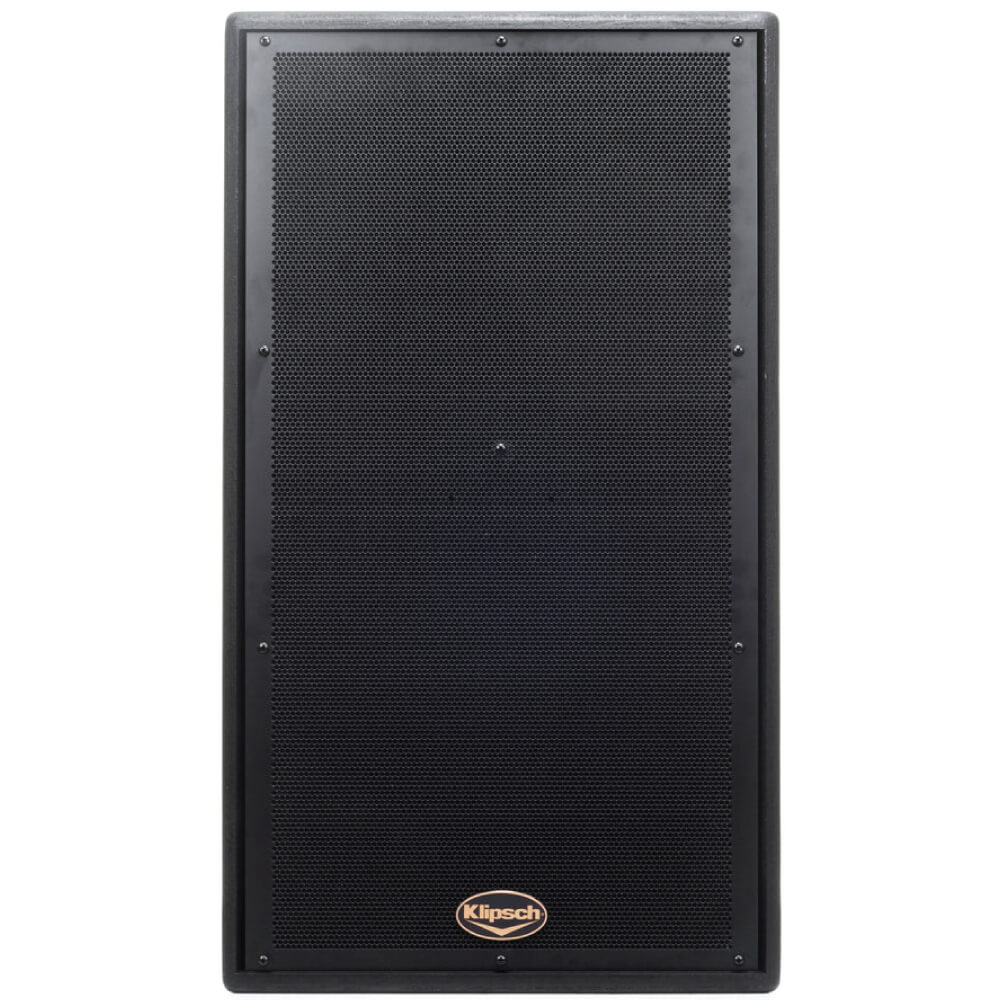

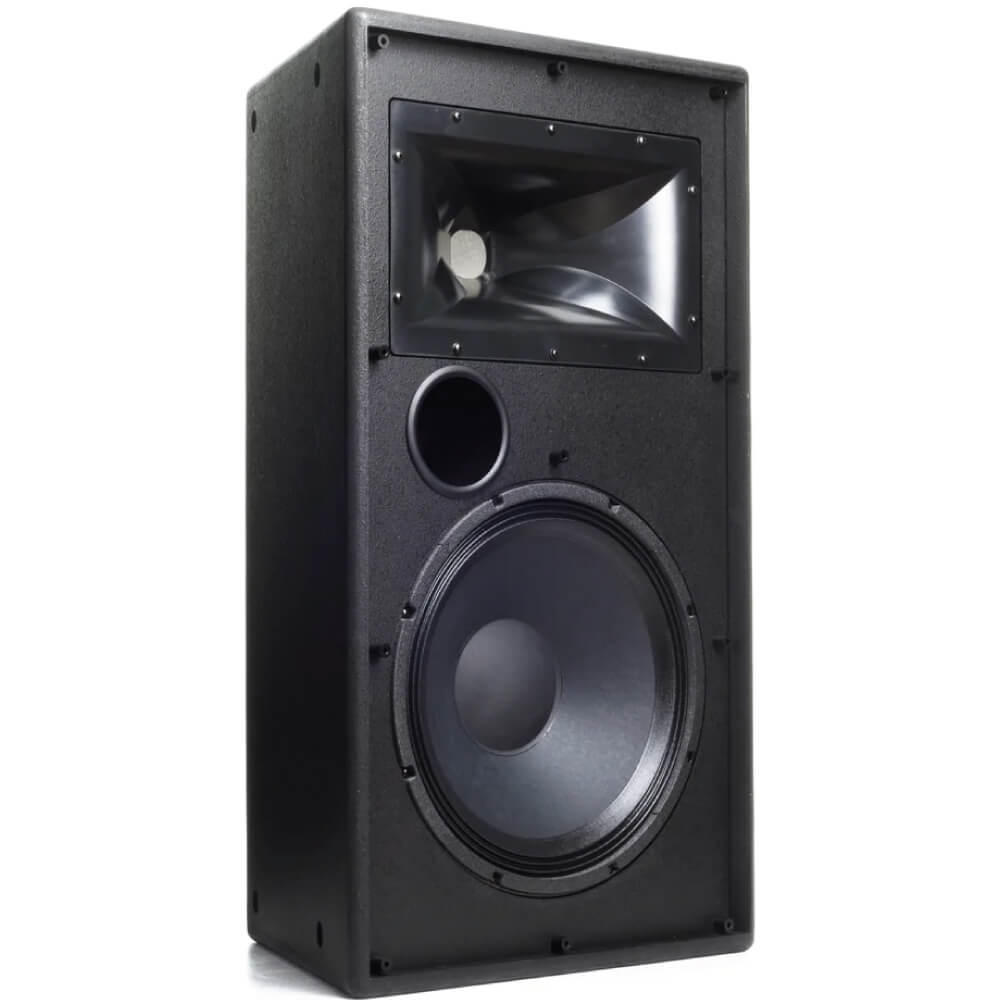

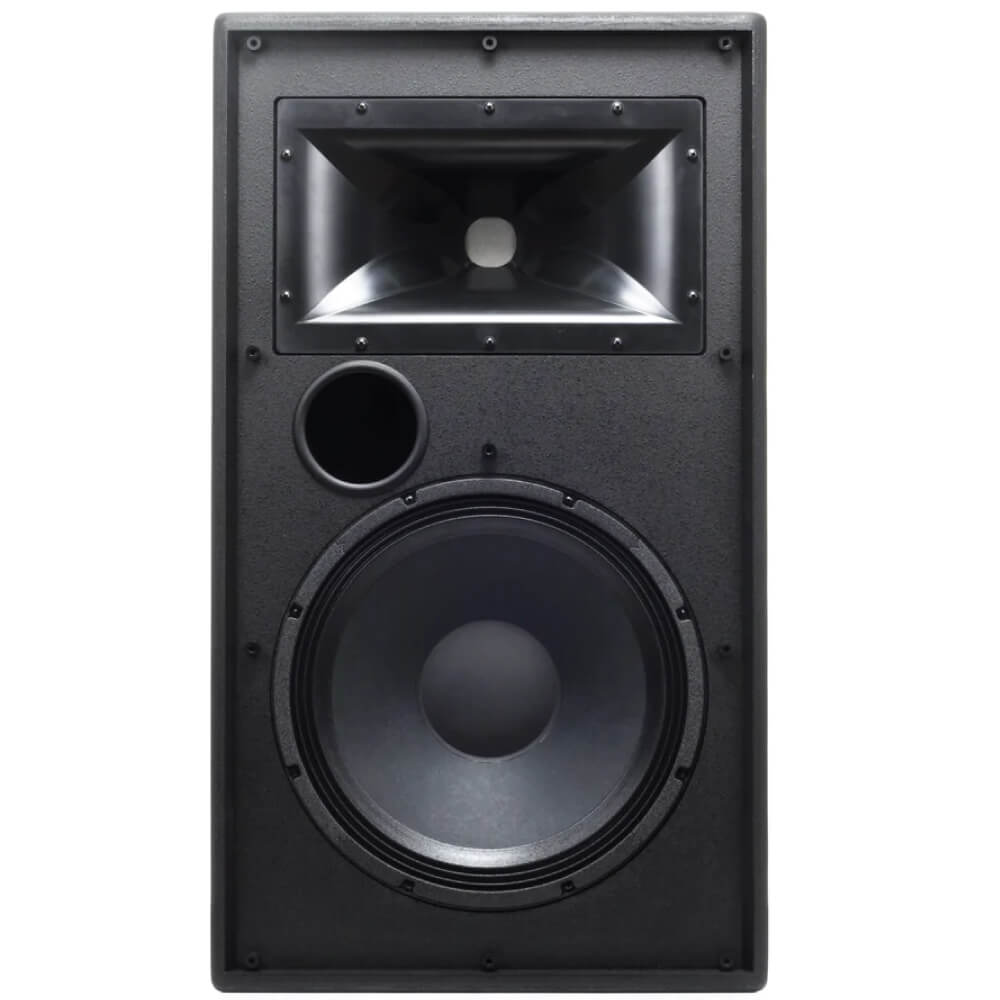

The Klipsch KI-396-SMA-II has incredible output capability with exceptional lowdistortion clarity. The compact 22.5° symmetrical, trapezoidal design houses a 15” high-excursion cast frame heavy-duty woofer, a large 3” titanium high-frequency compression driver and a 90º x 60º Tractrix® Horn for tight pattern control. The loudspeaker enclosure is constructed using a 3/4” 7-ply birch plywood, and a 1” medium density fiberboard front motorboard.  The KI-396-SMA-II permanent install speaker has 16 suspension points (4 per side) for flexible mounting and rigging bar compatibility and includes top and bottom mounting locations for a C-bracket.

SKU: N/A Categories: , Tag:
Weight 34540 g
Dimensions 406.4 × 502.9 × 871.2 mm
Brand

Color

Black, Raw Birch, White

FREQUENCY RESPONSE 60 Hz – 18 kHz (-10 dB @ 35 Hz)
POWER HANDLING 127 dB Continuous
SENSITIVITY 101 dB
DIRECTIVITY INDEX (DI) 8 dB +/- 2 dB 1.6 kHz – 20 kHz
DIRECTIVITY FACTOR (Q) 6.3
NOMINAL IMPEDANCE 8 ohms, minimum 5.1 ohms @ 112 Hz
CROSSOVER FREQUENCY 1 kHz

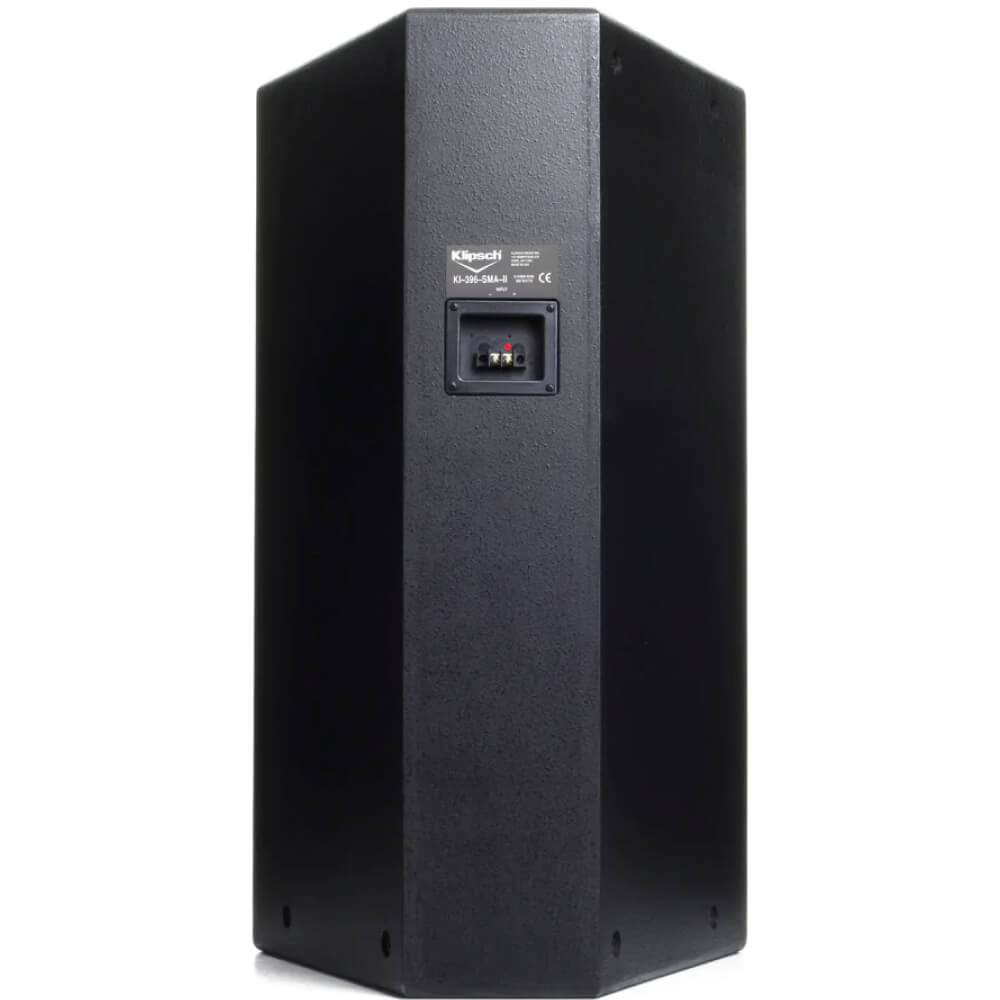

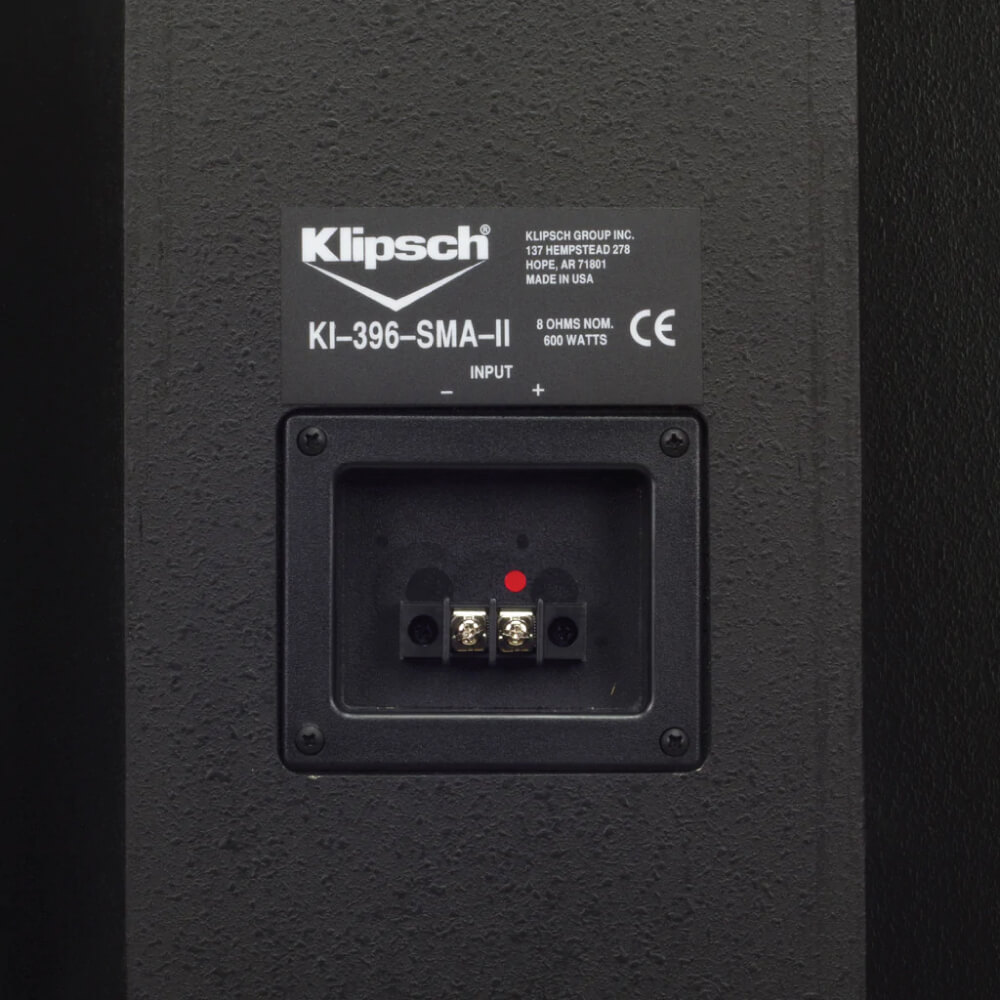

INPUT CONNECTION Two point barrier strip
MOUNTING OPTION Sixteen 3/8”-16 flypoints
