Klipsch KI-172-B-SMA-II

Klipsch

  • Multiple angle 45˚ and 65˚ asymmetrical design

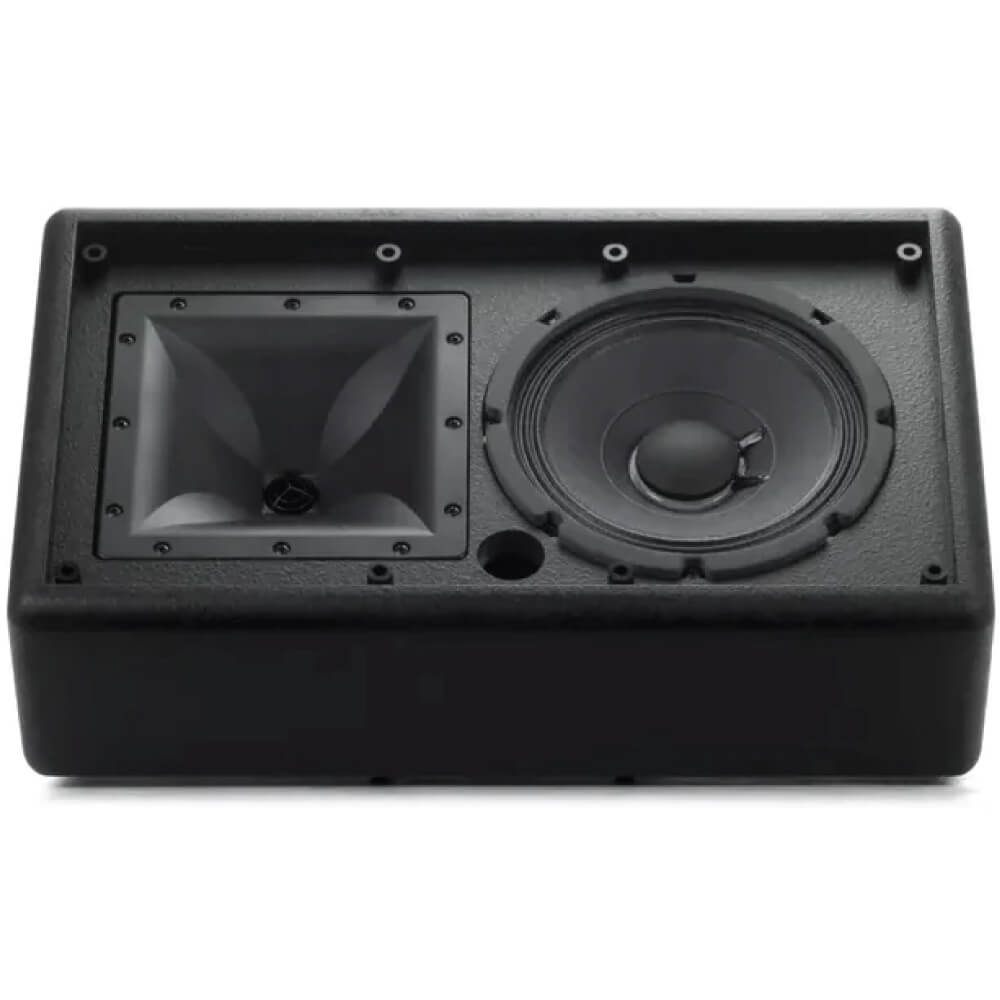

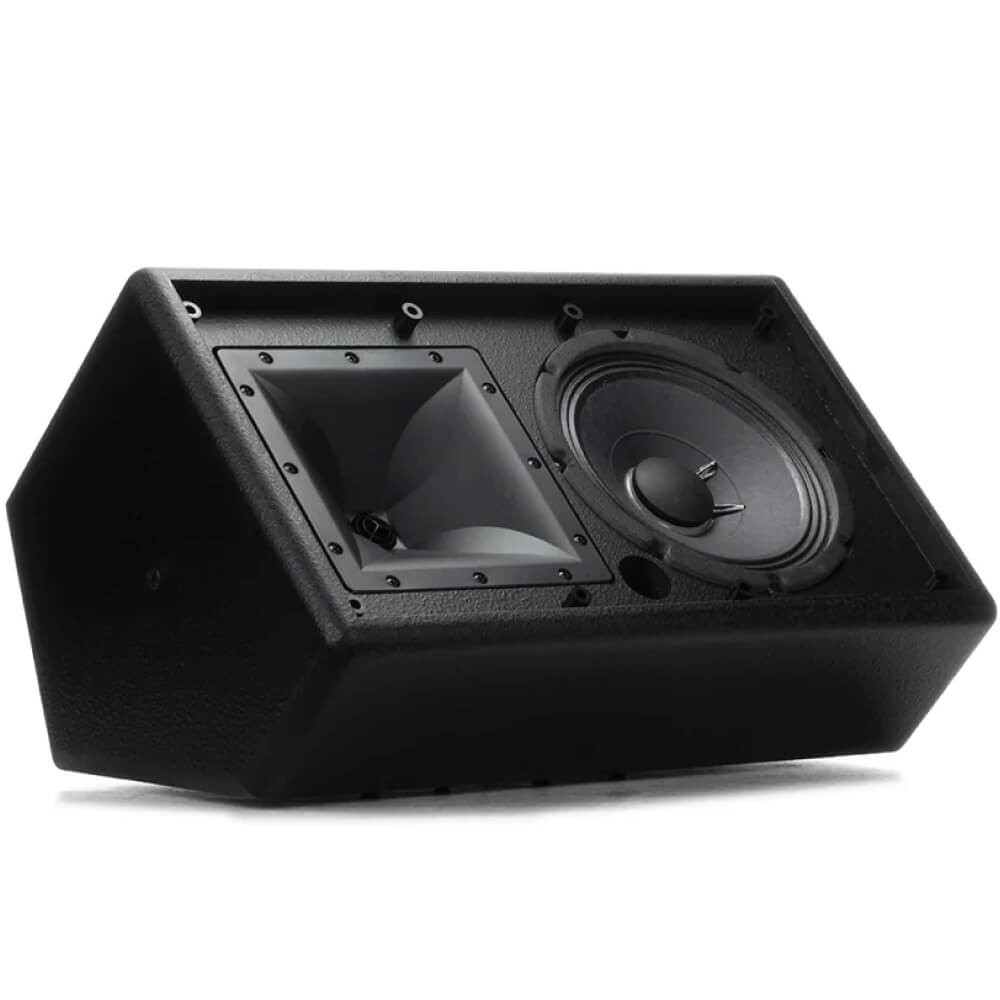

  • High power 8″ woofer and 1″ titanium diaphragm HF compression driver
  • 90˚ X 90˚ modified Tractrix® Horn
  • 3/4″ furniture grade plywood enclosure
  • Flexible mounting options for difficult installations
  • KLIP-circuit HF driver protection device

Please Call to Check Availability

This product is currently out of stock and unavailable.

The KI-172 is a compact, two-way, high performance loudspeaker with sides slanted at 65° and 45°. Designed to be installed where placement at an angle is required and space is limited, the KI-172 is perfect for wall, ceiling or under-balcony mounting in theaters, churches, schools and clubs, or for slanted floor or shelf monitor use near altars and podiums, or in board and meeting rooms.

The 3/4″ furniture grade plywood enclosure uses dado “lock-joint” and rabbet construction on CNC-fabricated panels to ensure resonance-free response and long-term reliability. The internal high-current passive crossover features the proprietary high-power thermal overload KLIP-circuit, which limits potential damage to the high-frequency driver. Standard five-way binding posts provide connections from full-range signal sources up to 100 watts.

SKU: N/A Categories: , Tag:
Weight 9988 g
Dimensions 285.75 × 287.35 × 477.85 mm
Brand

Color

Black, Raw MDF, White

FREQUENCY RESPONSE 70Hz-17kHz±4dB, -10dB 59Hz
POWER HANDLING 100 Watts (21.2V)
MAXIMUM CONTINUOUS OUTPUT 113dB
DISPERSION ANGLE 90˚ Horizontal X 90˚ Vertical
DIRECTIVITY 7dB
SENSITIVITY 96dB
NOMINAL IMPEDANCE 8 Ohms, 4.5 Ohms at 8.5kHz
OVERLOAD PROTECTION KLIP Overload Tweeter Protection Circuit
ENCLOSURE MATERIAL 3/4″ Furniture Grade Plywood

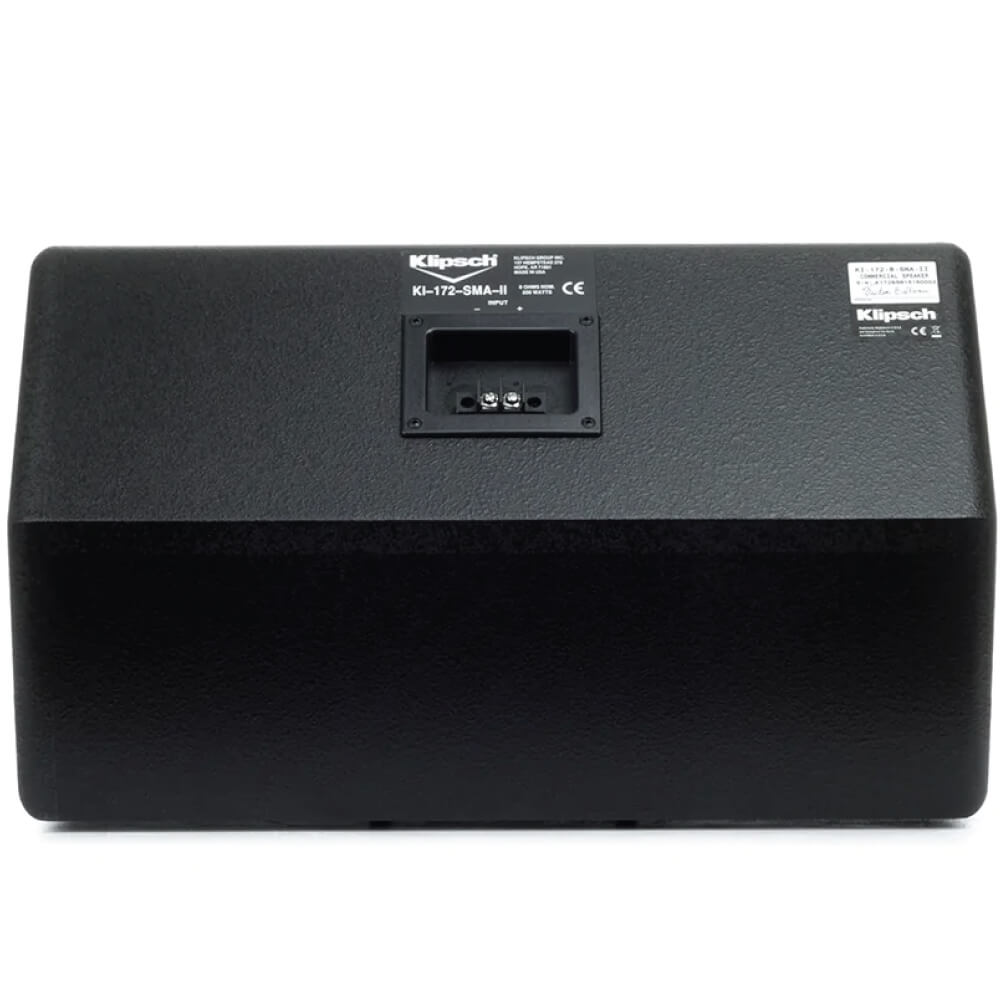

INPUT CONNECTIONS Five-way Binding Post
