Klipsch KI-102-B-SMA-II

Klipsch

● Compact 22.5˚ symmetrical trapezoidal design

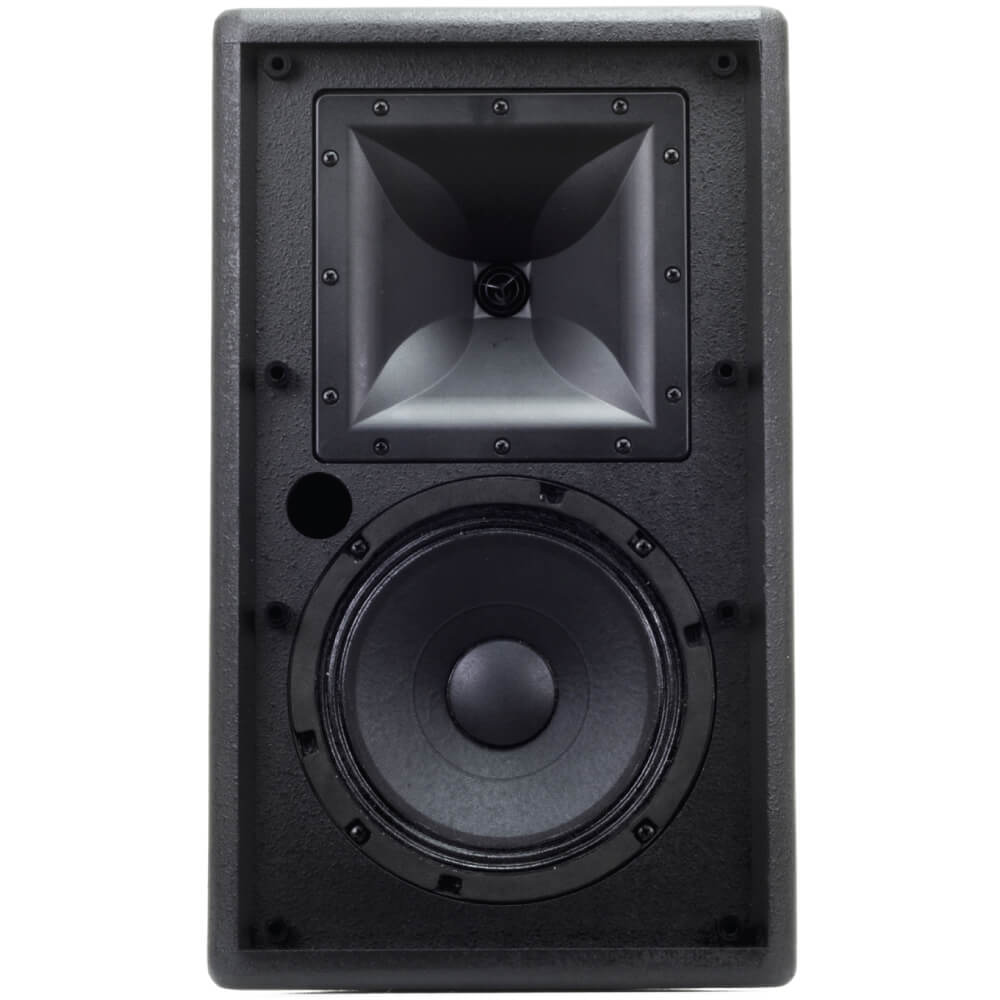

● High power 8″ woofer and 1″ titanium diaphragm HF compression driver

● 90˚ X 90˚ hybrid Tractrix Horn

● Flexible mounting options

● KLIP-circuit HF driver protection device

● Smooth polar response, extended 100-watt power handling

● 96dB half-space sensitivity, 113dB maximum output

Please Call to Check Availability

This product is currently out of stock and unavailable.

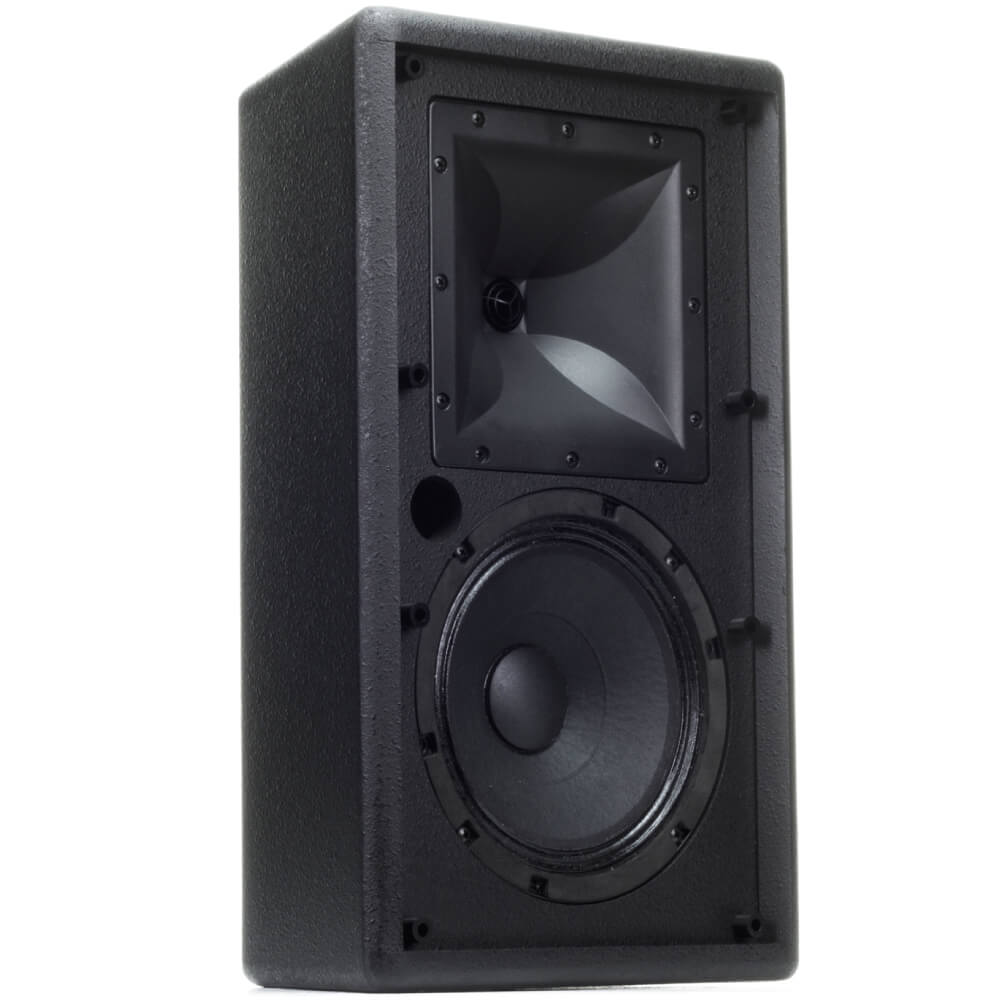

The KI-102 two-way trapezoidal loudspeaker is a compact hybrid Tractrix ® Horn-loaded speaker system capable of superb voice and music performance in permanent limited-space installations. It is recommended for use in restaurants, clubs, schools, churches, health clubs, and corporate A/V production environments where fidelity requirements are high but real estate is limited.

CNC fabrication techniques dado “lock-tab” and rabbet joint construction contribute to industry leading reliability maximum precision and ruggedness and a cabinet remarkably free from resonance and cabinet-induced coloration. Mounting capabilities include top and bottom attachments for the optional SB-102 “U”-shaped bracket.

SKU: N/A Categories: , Tag:
Weight 8618.26 g
Dimensions 249.25 × 287.35 × 477.85 mm
Brand

Color

Black, Gloss White, Light Brown

FREQUENCY RESPONSE 75Hz-17kHz±4dB, -10dB 62Hz
POWER HANDLING 100 Watts (21.2V)
MAXIMUM CONTINUOUS OUTPUT 113dB
DISPERSION ANGLE 90˚ Horizontal X 90˚ Vertical
DIRECTIVITY 7dB
SENSITIVITY 96dB
NOMINAL IMPEDANCE 8 Ohms, 4.5 Ohms Minimum at 8kHz
OVERLOAD PROTECTION KLIP Overload Tweeter Protection Circuit

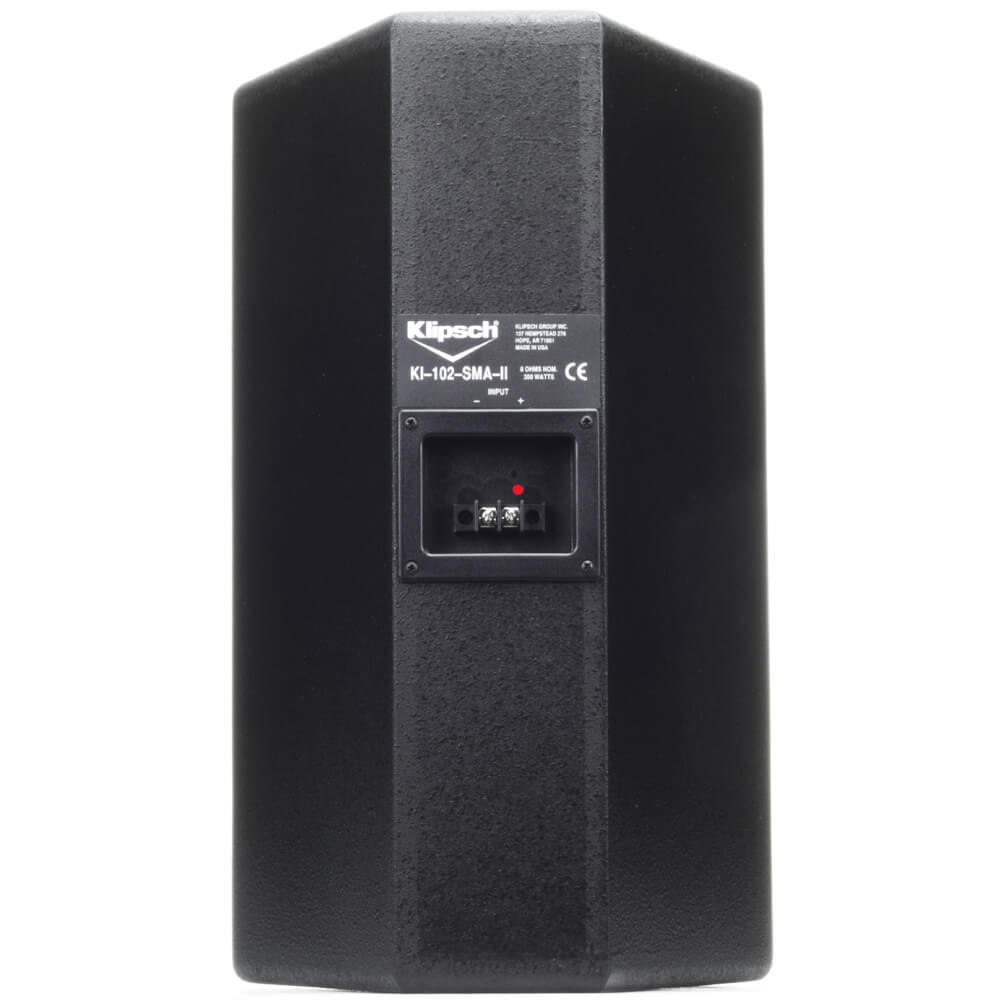

INPUT CONNECTIONS Five-way Binding Post
