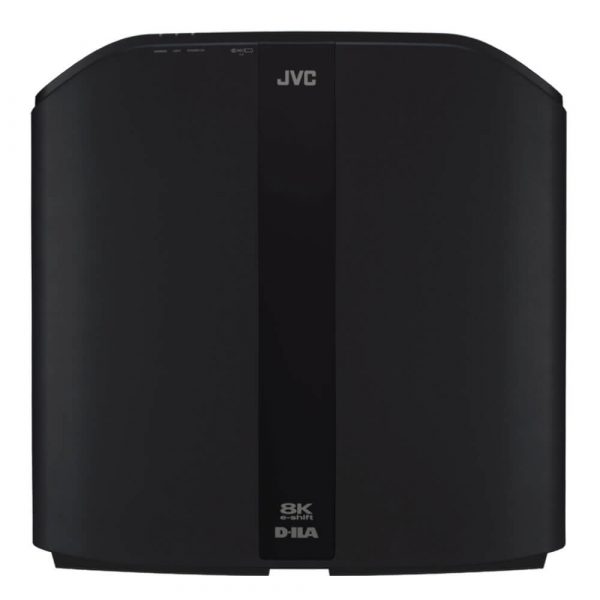

JVC DLA-NZ7BE Projector

JVC

  • World first projector to support high-resolution 8K signal input: 8K60p/4K120p
  • Light source: BLU-Escent laser
  • Display resolution: 8192 x 4320 (with 8K/e-shift)
  • Input connectors: HDMI x 2 (48 Gbps/HDCP 2.3)
  • Output and control connectors: RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini-DIN 3pin)
  • 3D formats: Frame Packing, Side-by-Side (Half), and Top & Bottom

$17,000

8K HDR Laser Home Theatre Projector

The DLA-NZ7 D-ILA is the world first (as of September 2021, according to a research by JVCKENWOOD) home theater model with 8K/60p/4K120p input. It is equipped with 8K/e-shift proprietary technology with 2-direction shift to reproduce 8K-quality image from 4K signals. 4K120p input also makes the projector ideal for gaming when combined with Low Latency mode. The projector is driven by three 0.69-inch native 4K D-ILA devices and 17-element, 15-group all glass lens with 65 mm diameter to project high-resolution images to every corner of the screen. BLU-Escent laser diode light source also contributes to project the high-resolution 8K image, realizing brightness of 2,200 lumens and longevity of up to 20,000 hours. Compatible with the latest HDR10+, the projector boasts industry leading HDR performance. 8K, Laser, and HDR are the keywords that describe JVCs 2021 projector models.

World’s first home projector capable of inputting 8K60p/4K120p signals

These projectors adopt LSI’s developed with the latest technology to process the vast amount of 8K input data, and an up converter to bring any source up to high definition 8K resolution. As a result, more beautiful and realistic video images full of contrast and reality can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.

Essential all-glass lens to depict all the data in the 8K image

The high-end DLA-NZ9 is equipped with an 18-element, 16-group all-glass lens featuring a full aluminium lens barrel*1. To project highresolution 8K images to every corner of the screen, the projector incorporates five ED lenses calibrated for differences in the R/G/B refractive index to reduce chromatic aberration and colour fringing when lens shift kicks in to deliver precise reproduction of 4K- or 8K-resolution*2 projection.

*1: 65 mm diameter, 17-element, 15-group all glass lens is featured on the DLA-NZ8, NZ7 and N5 models. *2: Resolution varies depending on the model.

Reliability-proved BLU-Escent Laser Diode for exceptional brightness and longevity

The light source for these projectors is the latest blue laser diode BLU-Escent, which is featured in JVC projectors. BLUEscent technology has been adopted for home theatre projectors to achieve exceptional brightness and longevity of 20,000 hours*. Laser diode allows dynamic control of brightness to reproduce images that are closer to human perception. Combining the latest BLU-Escent package with the D-ILA device achieves detailed, smooth, powerful video expression.

*In theory, this amounts to 20 years or more while watching a 2.5-hour movie every day.

HDR10+ Support allows a choice for dynamic tone mappings

When it comes to reproducing the rich video information of HDR content including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10+ signal format with dynamic metadata compatibility.

JVC projectors are compatible with the two dynamic tone mappings of HDR10+ and Frame Adapt HDR. HDR10+ contains the metadata of the producer’s intentions for each scene, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content using an original algorithm. Ensuring you can watch any HDR content in optimal picture quality.

4K120p input ideal for Low Latency Mode

Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.

SKU: DLA-NZ7BE Category:
Weight 22500 g
Dimensions 505 × 500 × 234 mm
Brand

Device 0.69-inch Native 4K D-ILA Device (4096 x 2160) x3
e-shift 8K/e-shift
Resolution 8192 x 4320
Lens
Diameter 65 mm
Type x2 Motorized Zoom & Focus, All-glass Lens
Lens shift
Vertical/Horizontal (motorized, in 16:9 aspect ratio) 80% / 34%
Light source Laser Diode
Brightness 2,200 lm
Contrast Ratio
Native 40,000:1
Dynamic Infinity:1
Input terminal 1 (Mini Jack, DC12 V/100 mA)
HDMI 2 (48Gbps, HDCP2.3, no support for CEC)
Trigger Output terminals (back panel)
Output terminals (back panel)
RS-232C 1 (Dsub 9pin)
Control terminals
LAN 1 (RJ-45)
Service terminal
SERVICE SERVICE
Noise level 24dB (In Low Mode)
Power requirements AC100-240 V, 50/60 Hz
Dimensions: W x H x D, mm 500 x 234 x 505 (incl. feet)
Dimensions: W x H x D, inches 19-11/16 x 9-7/32 x 19-29/32 (incl. feet)
Weight, kg 22.5
Weight, lbs 49.5
