JVC DLA-NP5 Projector

JVC

  • High-resolution 4K120p input for full 4K output
  • Light source: UHP lamp
  • Input connectors: HDMI x 2 (48 Gbps/HDCP 2.3)

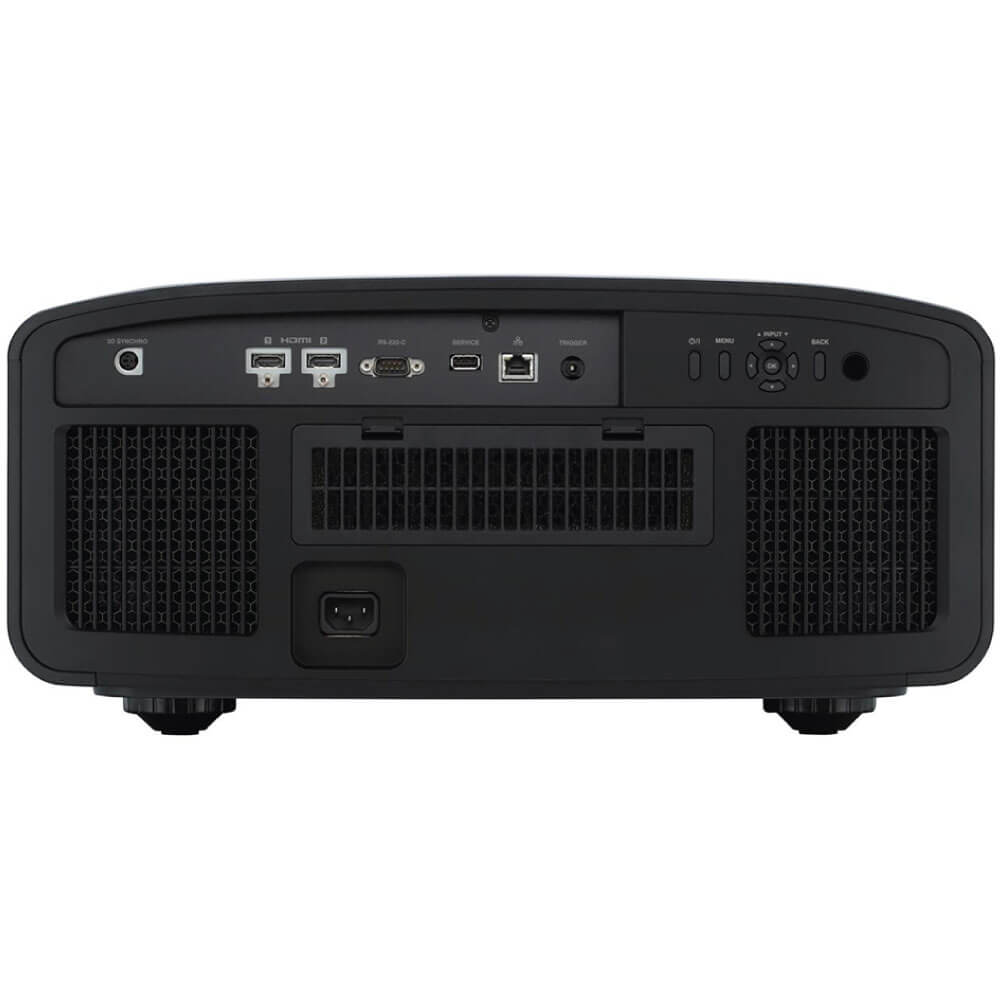

  • Output and control connectors: RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini-DIN 3pin)
  • 3D formats: Frame Packing, Side-by-Side (Half), and Top & Bottom
  • 0.69-inch 4K D-ILA (4096 x 2160) device x 3

$11,000

The DLA-NP5B D-ILA home theater projector features a 4K120p input to reproduce full 4K-resolution (4096 x 2160 pixels) image. 4K120p input also makes the projector ideal for gaming when combined with Low Latency mode. The projector is driven by three 0.69-inch native 4K D-ILA devices, and 17-element, 15-group all glass lens with 65 mm diameter to project high-resolution images to every corner of the screen with a brightness as high as 1,900 lumens. Compatible with the latest HDR10+, HLG, and Frame Adapt HDR with Theater optimizer, the projector is designed to present industry leading HDR performance.

4K Native Resolution

Equipped with refined 0.69″ native 4K D-ILA device and newly developed digital driver LSI for native 4K resolution.

D-ILA projectors continue to evolve for the better. The latest three models feature an original native 0.69″ 4K D-ILA devices, which were first adopted on model DLA-Z1; this device has been improved with process refinements on planarization and reflection efficiency to achieve higher contrast and brightness. Additionally, a dedicated driver LSI was also enhanced to simultaneously drive each of the three (R/G/B) native 4K D-ILA devices at high-speed 120fps. As a result, precise and smooth image projection unique to 4K native can be achieved with the combination of a new device and new driver LSI.

HDR10+ Support allows a choice for two dynamic tone mappings

When it comes to reproducing the rich video information of HDR content including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10+ signal format with dynamic metadata compatibility.

JVC projectors are compatible with the two dynamic tone mappings of HDR10+ and Frame Adapt HDR. HDR10+ contains the metadata of the producer’s intentions for each scene, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content using an original algorithm. Ensuring you can watch any HDR content in optimal picture quality.

Frame Adapt HDR function

The Frame Adapt HDR function* enables reproduction of any HDR10 content dynamically and in high-resolution!

The colour grading of HDR content varies, some HDR content are adjusted to bright side and others to the dark side. Using JVC’s original algorithm, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content frame-by-frame and in real time adjusts the projector to the optimum dynamic range. What’s more, the gamma processing accuracy of gradation performance has been improved dramatically from, 12-bit to 18-bit.

All these advancements help to bring out deeper blacks in darker scenes, and higher peaks in brighter scenes without losing colours. Reproducing images with smooth gradations, that are closer to reality as seen by the human eye. (*from firmware version 3.10 and higher)

4K120p input ideal for Low Latency Mode

ecause these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.

High quality, all glass lens

All glass, high-resolution lens with full aluminium lens barrel

The DLA-NX9 is equipped with an 18-element, 16-group all-glass lens featuring a full aluminium lens barrel. In order to project high-resolution images to every corner of the screen with the 100 mm diameter lens offering wide lens shift of ±100% vertically and ±43% horizontally, the projector adopts five ED lenses that take into account differences in the R/G/B refractive index to reduce chromatic aberration and colour fringing when lens shift kicks in to deliver precise reproduction of 8K-resolution projection. The DLA-N7 and DLA-N5 models feature a 17-element, 15-group all glass lens with 65 mm diameter to project fully focused 4K native resolution to all corners of the screen.



SKU: DLA-NZ9BE-1 Category:
Weight 19200 g
Dimensions 495 × 500 × 234 mm
Brand

Color

Black, White

Device 0.69-inch Native 4K D-ILA Device (40962160) x3
Resolution 4096 x 2160
Lens
Diameter 65 mm
Type x2 Motorized Zoom & Focus, All-glass Lens
Lens shift
Vertical/Horizontal (motorized, in 16:9 aspect ratio) +/-80% / +/-34%
Light source NSH 265 W
Brightness 1,900 lm
Contrast Ratio
Native 40,000:1
Dynamic 40,000:1
Input terminal
HDMI 2 (48Gbps, HDCP2.3, no support for CEC)
Trigger 1 (Mini Jack, DC12 V/100 mA)
Output terminals (back panel)
RS-232C 1 (Dsub 9pin)
Control terminals
LAN 1 (RJ-45)
Service terminal
SERVICE 1 (USB Type A, for firmware update)
Noise level 24dB (In Low Mode)
Power requirements AC100-240 V, 50/60 Hz
Dimensions: W x H x D, mm 500 x 234 x 495 (incl. feet)
Weight, kg 19.2
