With dual woofers featuring high-output PolyPlas? cones, and a CMMD? Lite tweeter dome with a proprietary Bi-Radial? waveguide, the JBL? Studio? 120c speaker is an ideal choice for the centre-channel speaker in a multi-channel home theater system ? delivering the exceptional clarity, realism and bass response that a great center-channel speaker must. Voice-matched to other speakers in the JBL Studio 1 Series, and sharing the same dynamic new industrial design, the 120c renders the dialogued, music and effects of even the most challenging movie soundtracks with confidence and style.
Feature?
2 1/2 Way Dual Centre Channel
- Low-frequency transducers: Two 4″ (100mm) PolyPlas cones, magnetically shielded
- High-frequency transducer: 1″ (25mm) CMMD Lite dome, magnetically shielded, in a
- Bi-Radial constant directivity waveguide
- Power handling: 60W continuous / 240W peak
- Frequency response: 60Hz ? 22kHz (?3dB)
- Nominal impedance: 8 ohms
- Sensitivity (2.83V/1m): 90dB
- Crossover frequencies: 900Hz, 12dB/octave; 1.8kHz, 24dB/octave;
- Straight-Line Signal Path? (SSP) crossover network delivers uniform system response and vertical dispersion
- Enclosure type: Ported

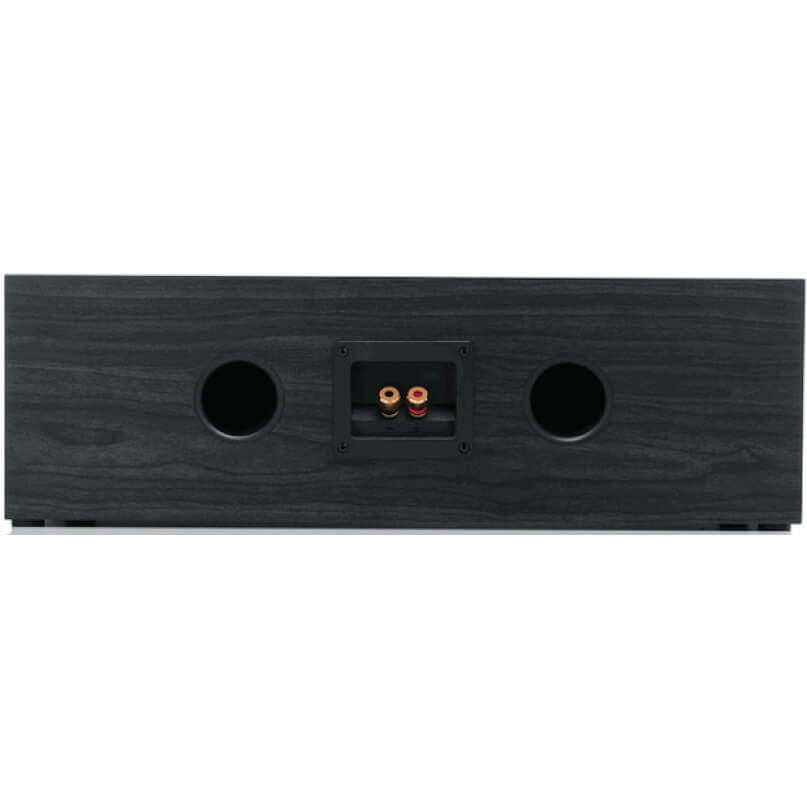

- Connector type: Gold-plated binding posts
- Available finishes: Black (BK) or cherry (CH)
- Dimensions (H x W x D): 165mm x 533mm x 251mm
- Weight: (8.4kg)
