Heco Celan Revolution 7 Floor Standing Speaker

HECO

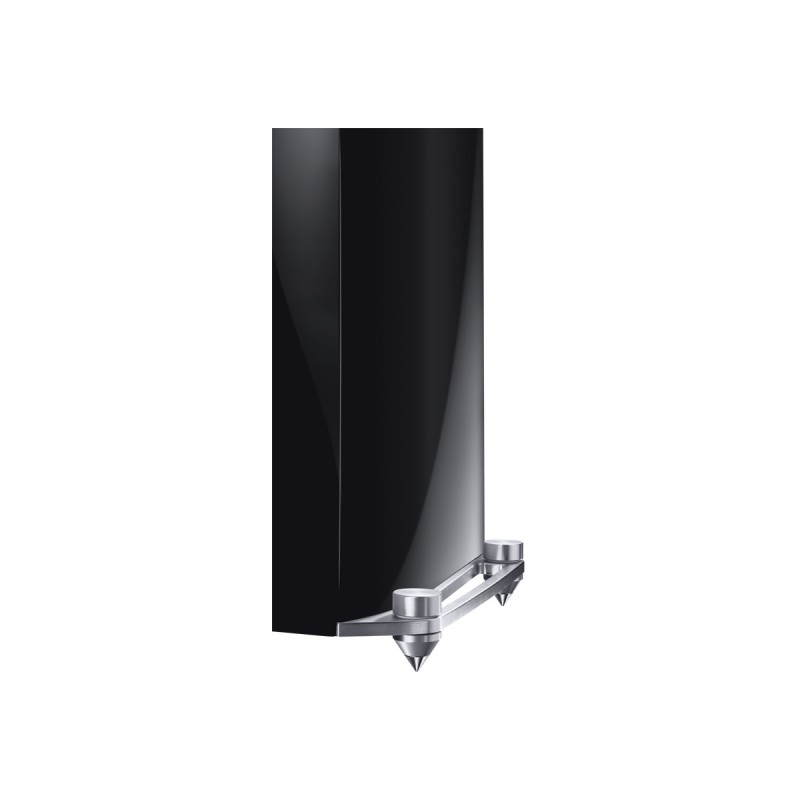

Heco Celan Revolution 7 Floor Standing Speaker – An exquisitely coordinated high-end floorstanding speaker with solid aluminum struts and height-adjustable metal spikes.

$7,700

Overview

Heco Celan Revolution 7 Floor Standing Speaker – An exquisitely coordinated high-end floorstanding speaker with solid aluminum struts and height-adjustable metal spikes. The optimal weight distribution and acoustic decoupling from the mounting surface ensure an audiophile listening experience of the highest level.

All of the frequencies above approx. 2,800 Hz are catered for by the newly developed Fluktus tweeter with its 30 mm PFC dome. The computer-optimized multi-wave front panel of the tweeter ensures perfect dispersion properties, even when it comes to demanding music and film sequences.

The bass and mid-range frequencies are catered for by three 170 mm chassis, which accommodate two woofers and a midrange driver. All chassis are equipped with the tried and tested HECO kraft paper cone, which is renowned for its audiophile sound characteristics and high level stability. Thus, Heco Celan Revolution 7 Floor Standing Speaker was made.

Features

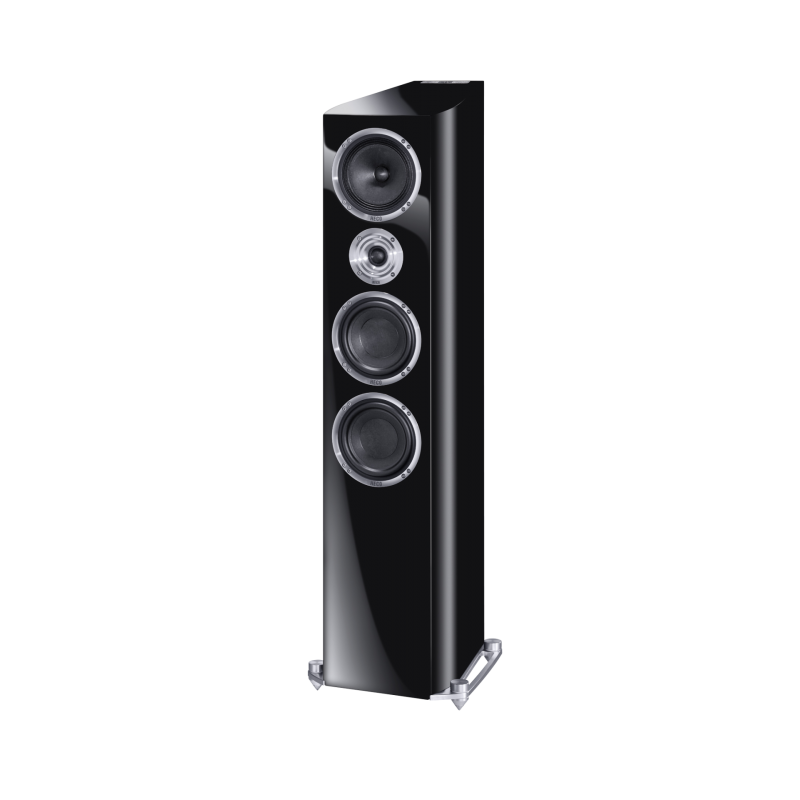

  • Elaborately constructed three-way floorstanding speaker (Heco Celan Revolution 7 Floor Standing Speaker) for very detailed and dynamic sound
  • New Fluktus tweeter with 30 mm PFC dome and computer-optimised multi-corrugated front panel for perfect dispersion characteristics
  • Solid construction using MDF panels and elaborated struttings, rounded side panels and elegantly angled top side

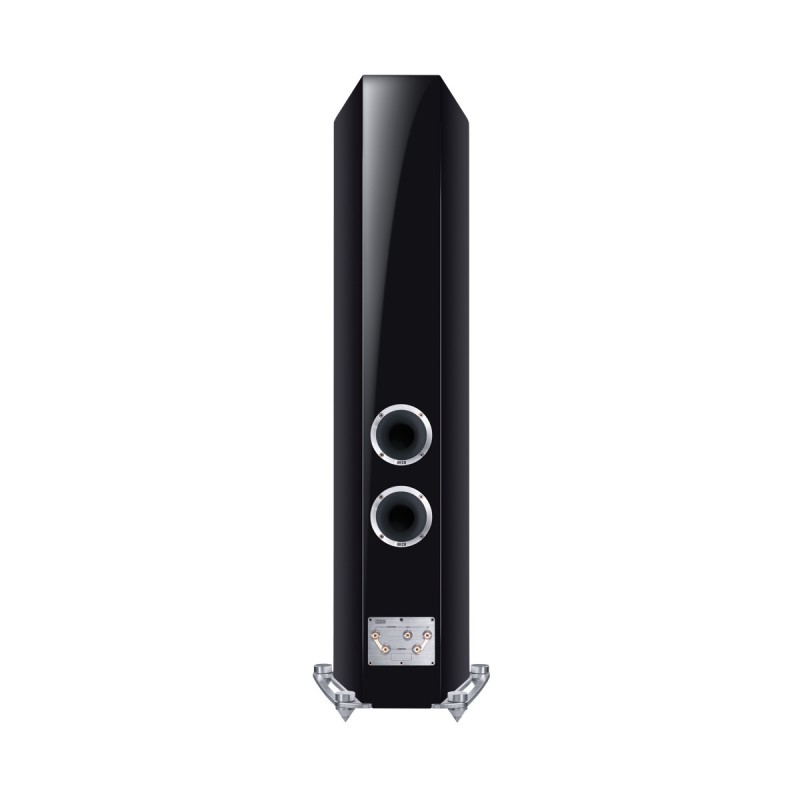

  • Bass reflex construction with two airflow-optimised and screwed reflex tubes and aluminium flanges
  • Woofer with HECO kraft paper cone, large dustcap, long-throw surround and 32 mm high-performance voice coil optimized for the low frequencies
  • Midrange with HECO kraft paper cone, new developed POCdustcap (Phase Optimisation Cap), coated fabric surround and 25 mm voice coil optimized for neutral reproduction
  • High Energy tweeter (2nd generation) with 30 mm Polyfiber Compound Dome (PFC Dome), powerful double ferrite magnet system and new aluminium front plate with Fluktus geometry
  • Bi-wiring/Bi-amping-Option
  • Elaborated crossover with high-quality exacting tolerance components
  • 2 x 6.5“ woofer
  • 6.5” midrange
  • 1.2″ Dome-tweeter
SKU: H-CEL-R7-B Category:
Weight 29500 g
Dimensions 320 × 390 × 1182 mm
Brand

Specifications

  • PRINCIPLE
    3 way floorstanding speaker, bass reflex
  • SENSITIVITY (2.8V/1M)
    92 dB
  • IMPEDANCE
    4 – 8 Ohms
  • CROSSOVER FREQUENCIES
    250 Hz, 2.800 Hz
  • POWER HANDLING (RMS/MAX)
    220/350 watts
  • FREQUENCY RESPONSE
    21 – 52.000 Hz
  • RECOMMENDED AMPLIFIER OUTPUT
    30 – 350 Watts
