Epson EB-945H Corporate Portable Multimedia Projectors


High Performance Mid-Range Projection For Education and Corporate.
  • Versatile Connectivity
  • Up to 3x Brighter Colours with Epson Projectors*
  • Auto Power on



  • Epson EB-945H mid-range projector provides ultra-bright image quality. With 3,000 lumens both in high colour brightness and in white brightness driven by 3LCD, 3-chip technology. The EB-945H mid-range projector is ideal for delivering large and engaging presentation content in the classroom or office with versatile digital connectivity.
  • The EB-945H now comes equipped with MHL connectivity via HDMI for a more complete digital solution. The long lasting lamp, projecting up to 10,000 lamp hours in ECO mode gives an extended period of reliable performance.
  • Suitable for desktop use with convenient table top placement or using the optional ceiling mount (ELP-MB23), the EB-900 Series offers flexible installation in any environment.


    • 3 x Brighter Colours and reliable performance* ? 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
    • Crisp Clear Resolution ? Featuring XGA image resolution (4:3).
    • Maximise the display ? Split screen function allows content from two separate sources to be displayed side by side on the same screen.
    • Long Lasting, low cost lamp priced at $99 RRP inc GST ? Up to 10,000 hours in ECO mode.
    • Versatile Connectivity ? Newly added dual HDMI ports (the HDMI 2 port is MHL compatible) increases digital compatibility.
    • Horizontal Keystone Slider ? The Horizontal Keystone slider allows for quick and easy adjustments to correct image distortion.
    • Control4 support ? Newly added Control4 supports to dim the lights, lower the screen and turn on the projector with one touch control.
    • Auto Power on ? Simply plug in a source device via VGA and the projector will power on.
    • Convenient collaboration for BYOD classrooms ? Wirelessly share and compare students? work from multiple devices, simultaneously, with EasyMP? software / Multi-PC Projection function.
SKU: EB-945H Category:
Weight 2900 g
Dimensions 269 × 297 × 87 mm




  •  1.8m Computer Cable, 1.8m power cable Remote Control, Batteries x 2, Projector Software Ver. 1.02b (CD ROM), Password Protect Sticker, Manual


  • Projection System Epson 3LCD, 3-chip technology
  • LCD Panel 0.63-inch with MLA (D7)


  • Zoom 1 – 1.6
  • Screen Size 30″ to 300″
  • Projection Distance 60″ screen 1.69 m
  • Throw Ratio 1.38 (Zoom: Wide), 2.24 (Zoom: Tele)
  • Projection Lens F Number 1.51 – 1.99
  • Projection Lens Focal Length 18.2 mm – 29.2 mm
  • Focus Method Manual
  • Offset 8.6:1


  • Colour Light Output 3,000 Lumens
  • White Light Output 3,000 Lumens
  • Resolution XGA
  • Native Aspect Ratio 4:3
  • Contrast Ratio 10,000:1
  • Lamp Hours Normal/Eco: 5,000 Hours/10,000 Hours
  • Lamp Type 200W UHE
  • Keystone Correction Vertical: -30 to +30 degrees, Horizontal: -30 to +30 degrees
  • Auto Keystone Correction Yes
  • Horizontal Slide Keystone Correction Yes
  • Split Screen Yes

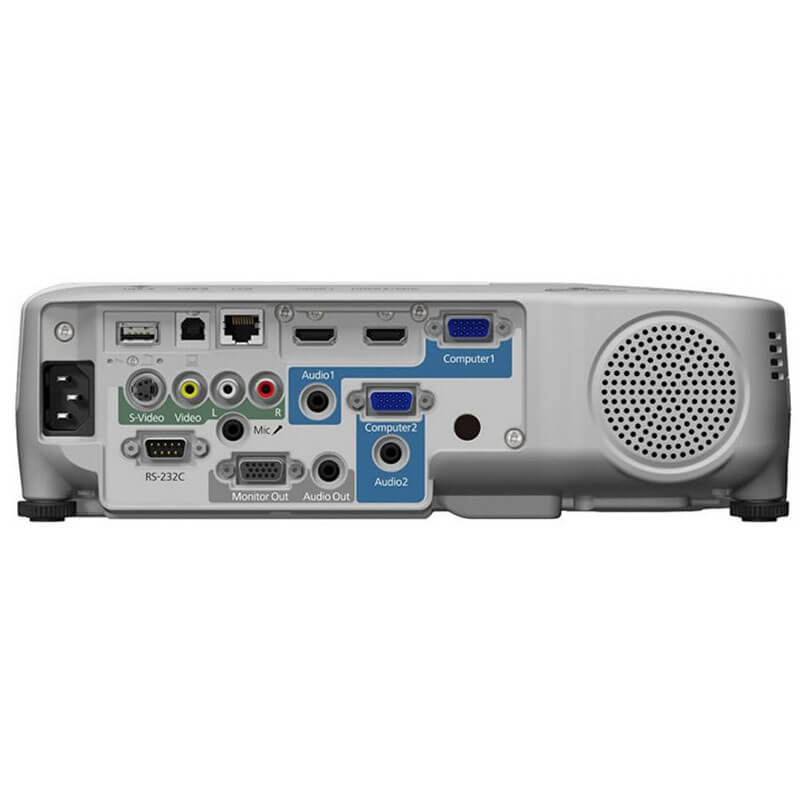

  • Input: Video 1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin)
  • Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
  • Input: USB Memory Device USB Type A Ver.2.0
  • Input: Three-In-One USB Display 1 x USB 2.0 type B
  • Input: Digital 2 x HDMI (1 x MHL)
  • Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
  • Input: Control 1 x USB 2.0 type B, RS232C
  • Input: Epson USB Document Camera 1 x USB 2.0 type B
  • Network I/O: 1 x RJ45 (100Mbps)
  • Wireless Connectivity Optional Accessory(ELP-AP07)
  • Output: Video D-sub 15 pin (black molding)
  • Output: Audio Stereo mini jack x 1
  • Speaker Output 16W


  • EasyMP Network & Control Yes (with optional Wireless LAN Unit)
  • EasyMP Network Projection Yes (with optional Wireless LAN Unit)
  • PC Free Presentations Photo / Motion JPEG
  • USB Plug ‘n Play Yes
  • Projector Control Control 4, AMX, Crestron, Extron
  • AV Mute Slide Yes
  • Instant Off Yes
  • Direct Power On/Off Yes
  • Security Kensington®-style lock provision, Padlock, Security cable hole, Wireless LAN Unit Lock Password protect function
  • Colour Modes Dynamic, Theatre


  • Dimensions D x W x H (excluding feet) 269 x 297 x 87 mm
  • Weight 2.9kg
  • Lamp Warranty 12 months or 750 hours*
  • Projector Warranty 3 Years
  • Power Consumption: Lamp on Normal/Eco: 287/215W
  • Power Consumption: Standby 0.26W (communication off)
  • Noise Level Normal/Eco: 37/29dB
