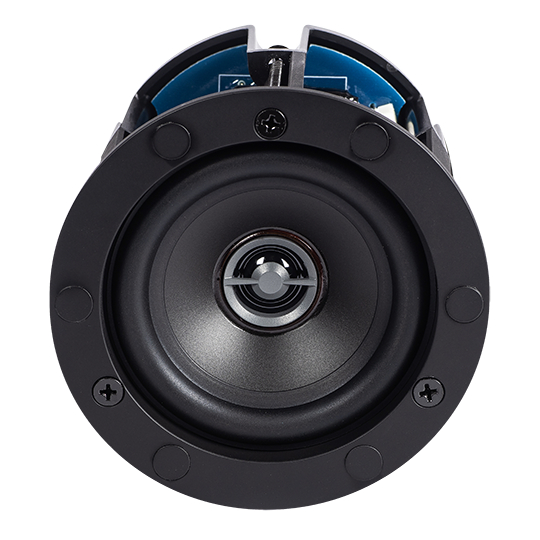

ELAC Vertex IC-V31-W 3.8″ In-Ceiling Speaker



We understand the importance of having audio to enhance a living space, with minimal aesthetic intrusion. With a slim profile, the easily installed Vertex in-ceiling speakers expand the line of our Integrator Series of custom products. Keeping our philosophy of delivering high-end sound, the Vertex series of speakers will compliment any conventional floorstanding or bookshelf loudspeaker.

Custom Silk-Dome Tweeter

Custom silk dome tweeters have been developed for low mass and smooth, extended high frequency response.

Custom-designed Woofers with Polypropylene Cone

Polypropylene is employed due to its improved internal damping and smooth high frequency roll-off.

Intricate Crossover

A custom multi-element crossover with audio-grade components is implemented to ensure smooth transition between the drivers.

SKU: IC-V31-W Category:

Speaker Type: 2-way, rear side open
Tweeter: 1 x 3/4″ inch soft dome
Woofer: 1 x 3.8-inch polypropylene cone
Crossover Frequency: 3,000 Hz
Frequency Response: 76 to 20,000 Hz
Recommended amplifier power: 30 – 100 W
Nominal/peak power handling: 50/80 Watts
Nominal impedance: 6 Ohm
Sensitivity: 87 db at 2.83 v/1m
Binding posts: Metal spring terminals
Finish: Black baffle/White grille
Grille: Metal magnetic / Paintable
Accessories included: Cutout template, manual
Dimensions (diameter): 4.25 in / 108 mm
Cut-out (diameter): 4.00 in /102 mm
Mounting depth: 4.05 in / 103 mm
