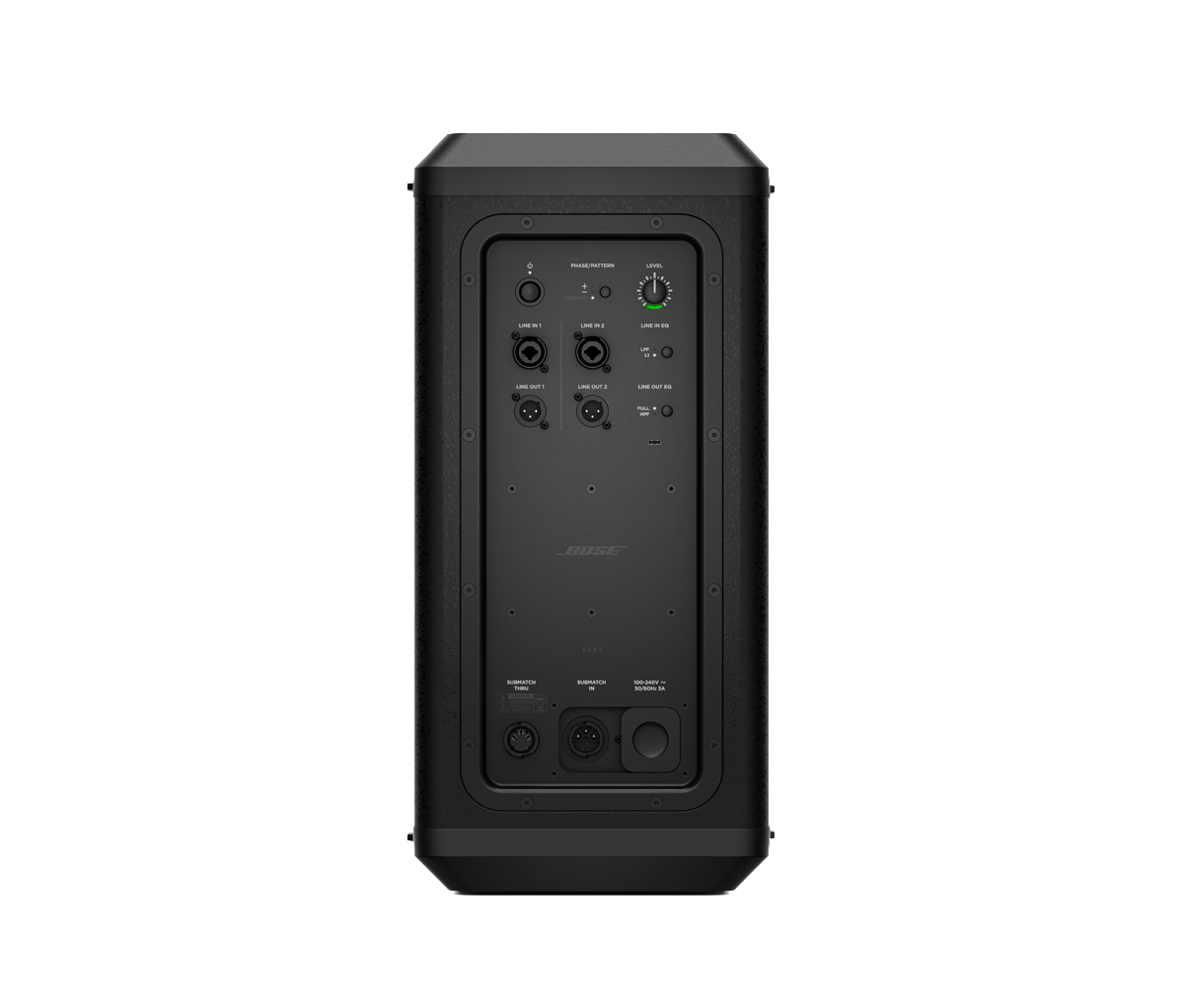

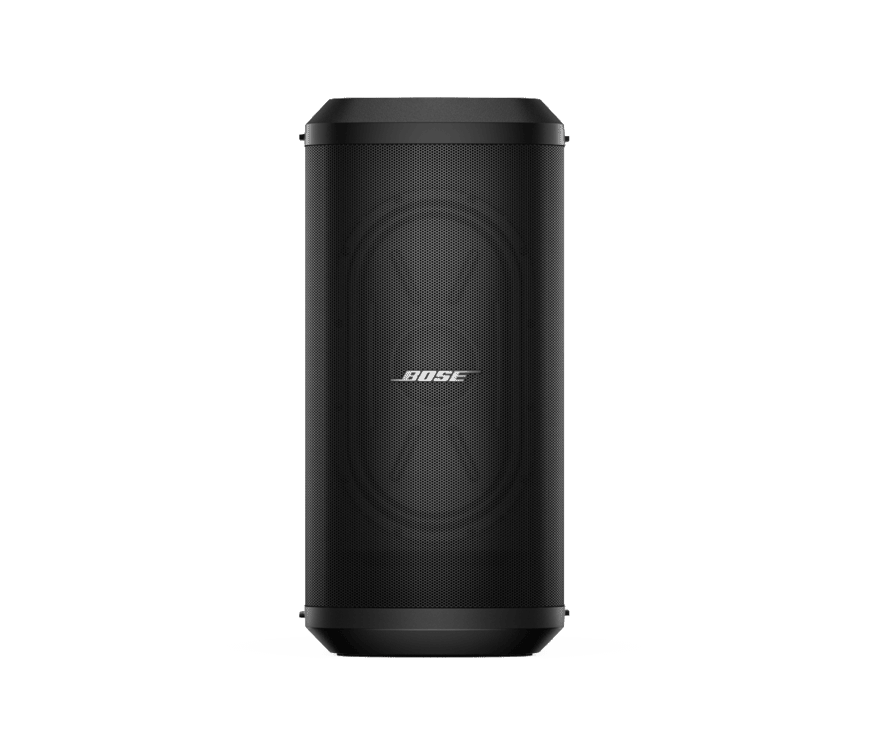

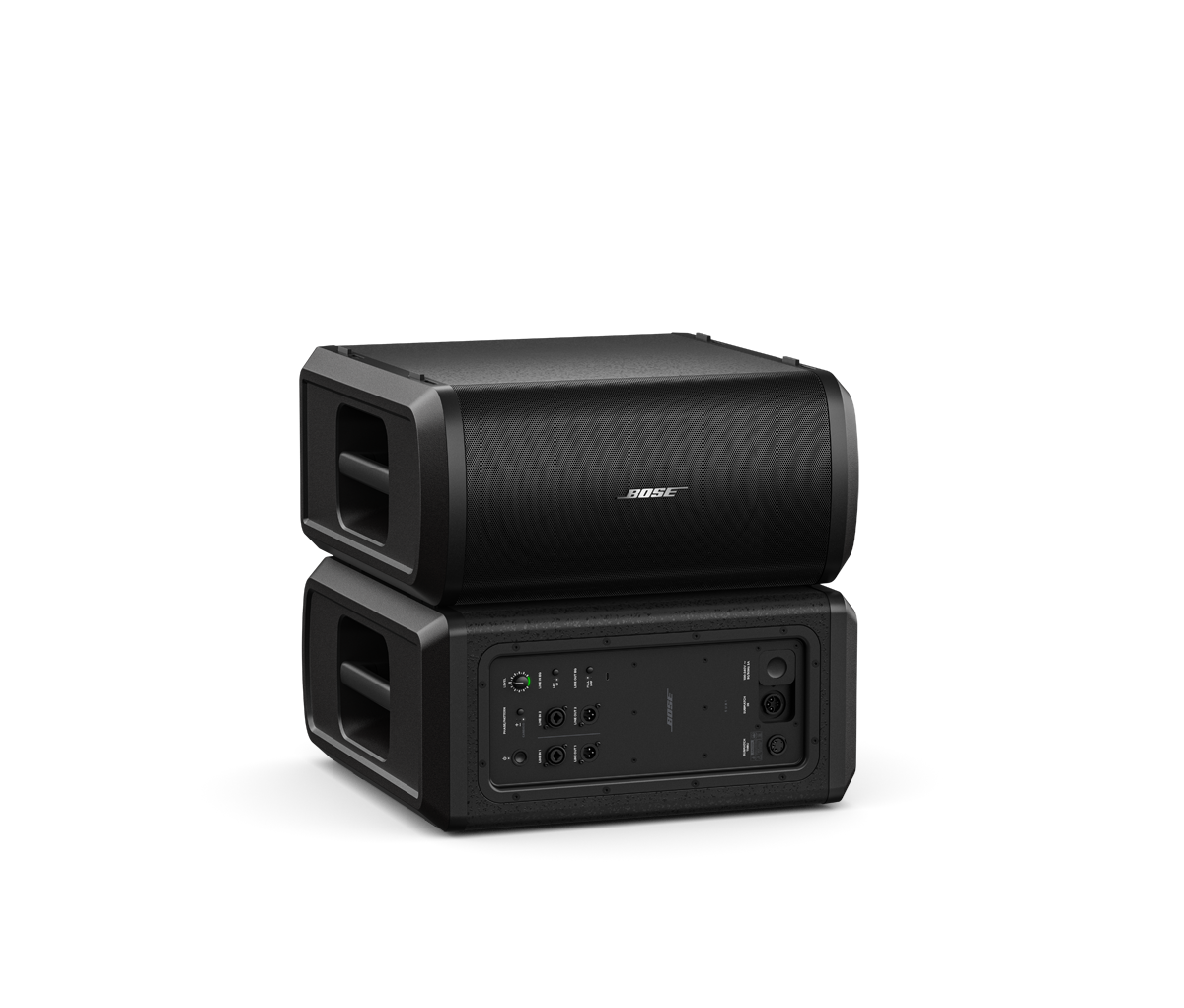

Bose Sub1 Powered Bass Module

Bose

Slim, portable subwoofer with RaceTrack driver delivering deep bass down to 40 Hz.

$1,601

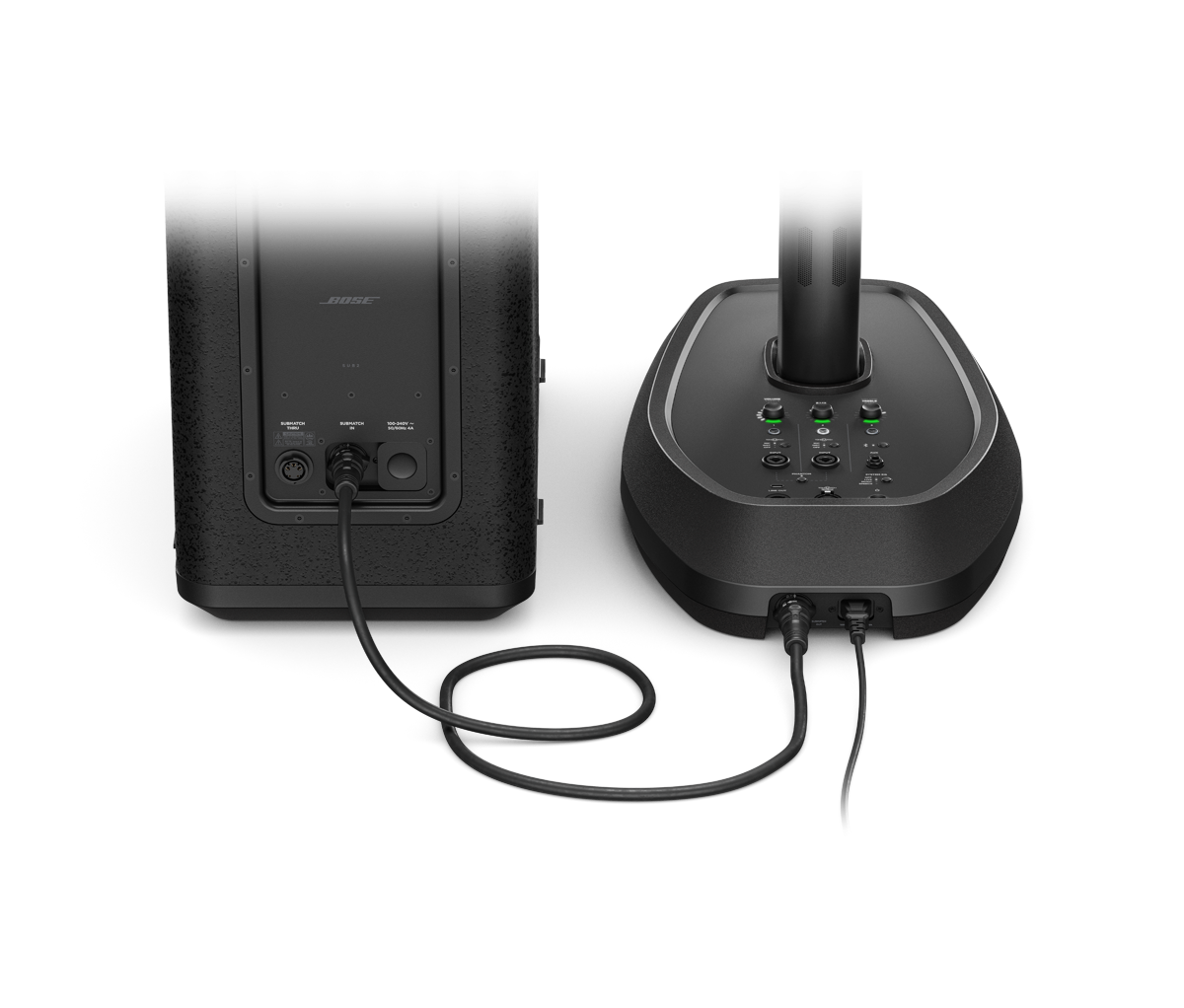

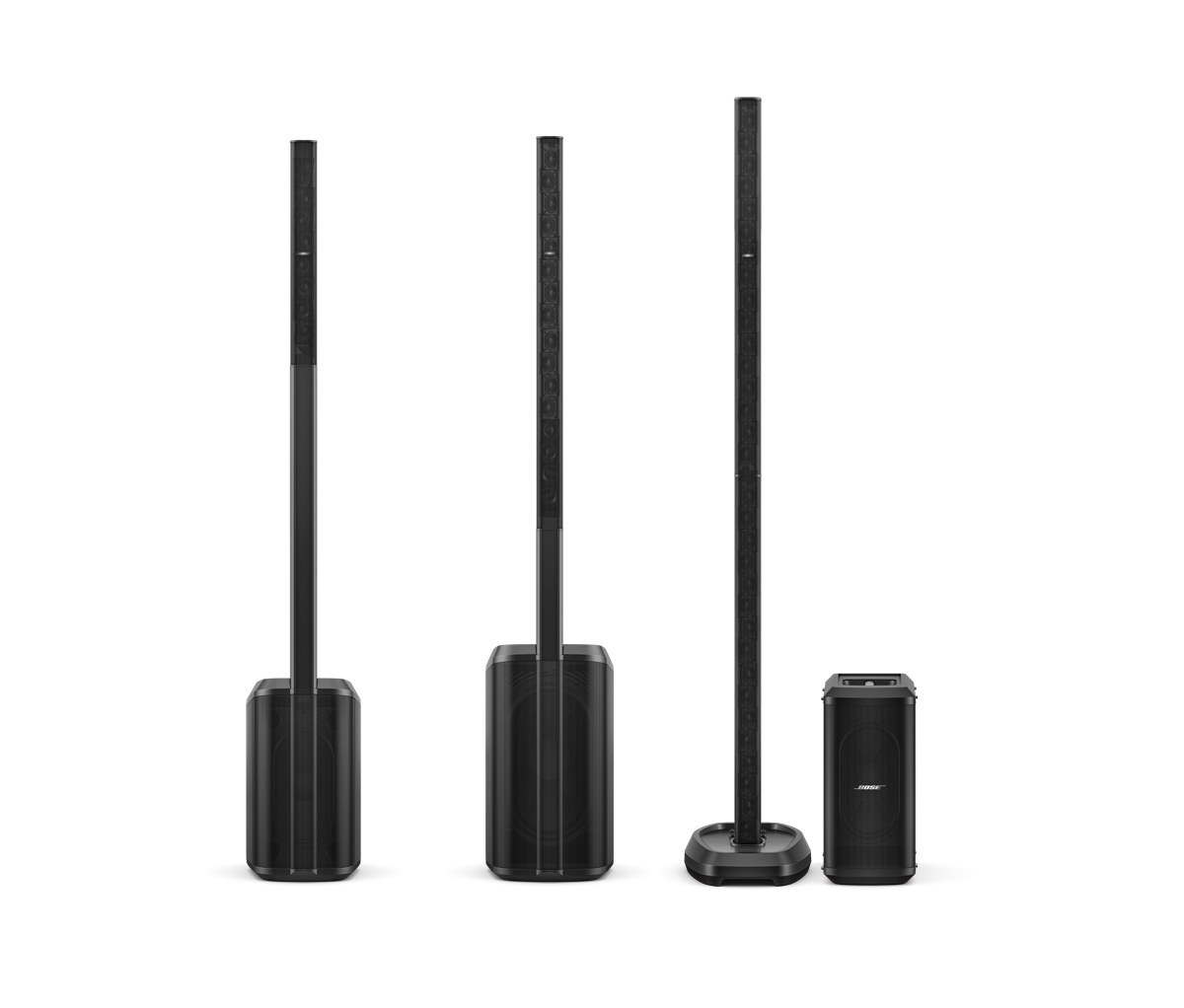

The Bose Sub1 Powered Bass Module is a compact yet powerful subwoofer designed to elevate your portable PA system. Equipped with a unique 7 × 13-inch high-excursion RaceTrack driver, it delivers impactful low-end performance down to 40 Hz in a space-saving enclosure. It pairs seamlessly with the Bose L1 Pro32 via a single SubMatch cable for audio and power, or connects with other systems using line inputs and outputs. Stack multiple Sub1s or activate Cardioid Mode to focus your bass where you need it. With integrated DSP and a rugged yet sleek build, Sub1 is ready for stages, events, and any mobile performance.

SKU: 840918-5100 Category:
Weight15000 g
Dimensions529 × 260 × 533 mm
Brands

Specs:

Frequency Response (-10 dB): 32 Hz – 250 Hz

Max SPL @ 1 m: 124.6 dB

Peak Power Handling: 480 W

Driver: 1 × 7 × 13 in (178 × 330 mm) RaceTrack low-frequency driver

Crossover Frequency: 200 Hz

Inputs: 1 × XLR-1/4″ TRS combo, 1 × SubMatch (multi-pin)

DSP Features: Input/output EQ, phase/pattern inversion

Software Compatibility: Bose Music (Android/iOS)

Computer Interface: USB Type-C

Construction: High-impact polypropylene and birch plywood

Grille: Powder-coated perforated steel

Cooling: Convection

Controls: Power, EQ, volume, LEDs for status and signal
