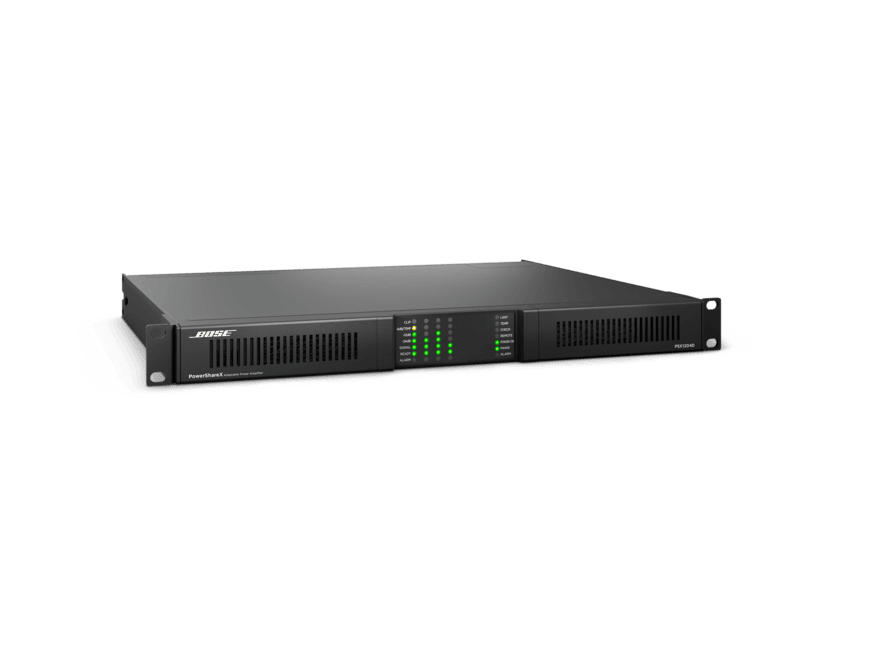

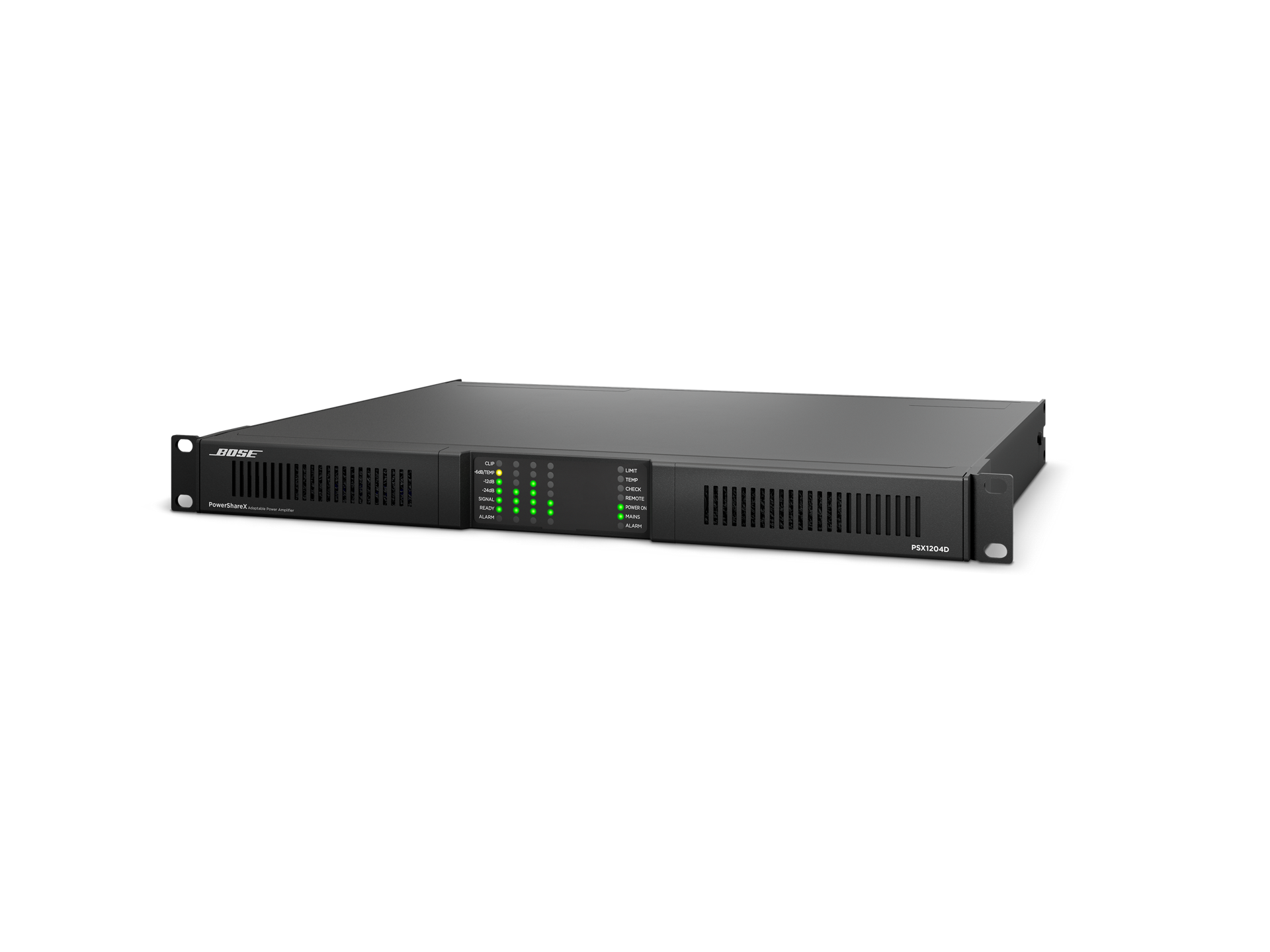

Bose PowerShareX PSX2404D

Specs:

Amplification:

Maximum Peak Power (Symmetrical): 1600 W at 2 Ω / 1200 W at 4 Ω, 8 Ω, 70V, 100V

Maximum Peak Power (Asymmetrical): 3200 W at 2 Ω / 3400 W at 4 Ω / 2600 W at 8 Ω / 3400 W at 70V / 3000 W at 100V

Rated Power (Asymmetrical): 1600 W at 2 Ω / 1700 W at 4 Ω / 1300 W at 8 Ω in 100V mode / 1700 W at 70V / 1500 W at 100V

Frequency Response: 20 Hz – 20 kHz (±1.0 dB), 1 W at 8 Ω

THD+N: < 0.1% (< 0.05% typical, from 0.1 W to half-power) Number of Channels: 4 Power Class: Class D SNR: > 104 dB (A-weighted)

Inputs/Outputs:

Analog Inputs: 4 balanced, line, (1) 6-pin Euroblock

Digital Inputs: 4 Dante in, (1) RJ-45 Dante in

Analog Outputs: 4, (1) 8-pin Euroblock, 7.62 mm

Compliance:

Safety: EN 54-16 certified, voice alarm control and indicating equipment

EMC: Meets EN55103-2 immunity requirements for E2 electromagnetic environment

Electrical:

Current Draw, Idle: 0.45 A at 115 VAC, 60 Hz / 0.25 A at 230 VAC, 50 Hz

Mains Voltage: 100–240 VAC (±10%), 50/60 Hz

AC Power Consumption: 31.1 W idle, 405 W maximum at 1/8 power at 4 Ω

General:

Software Applications: ControlSpace Designer 5.12 or later (Windows)

Computer Interface Connection: RJ-45 (Ethernet)

Indicators and Controls:

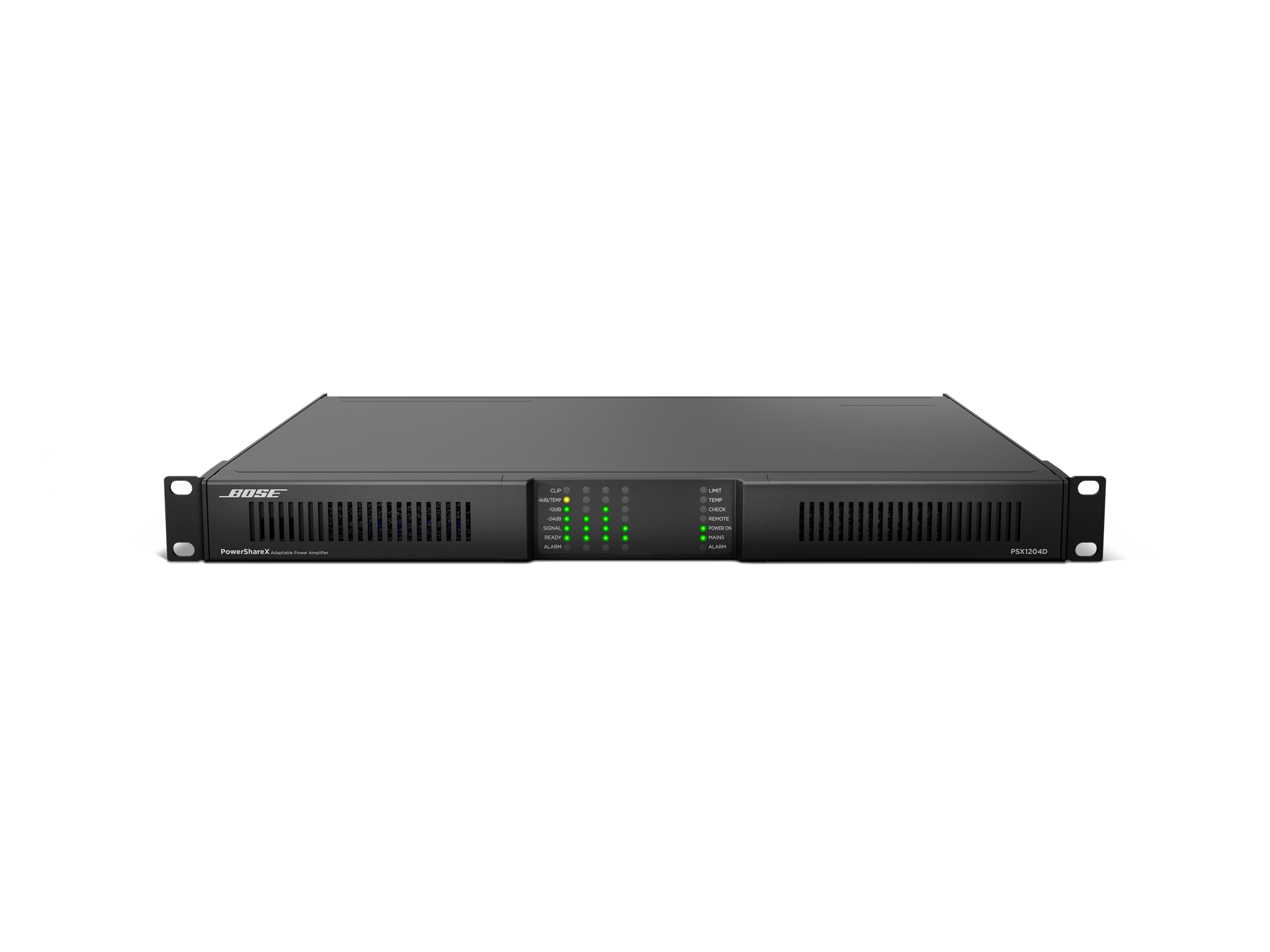

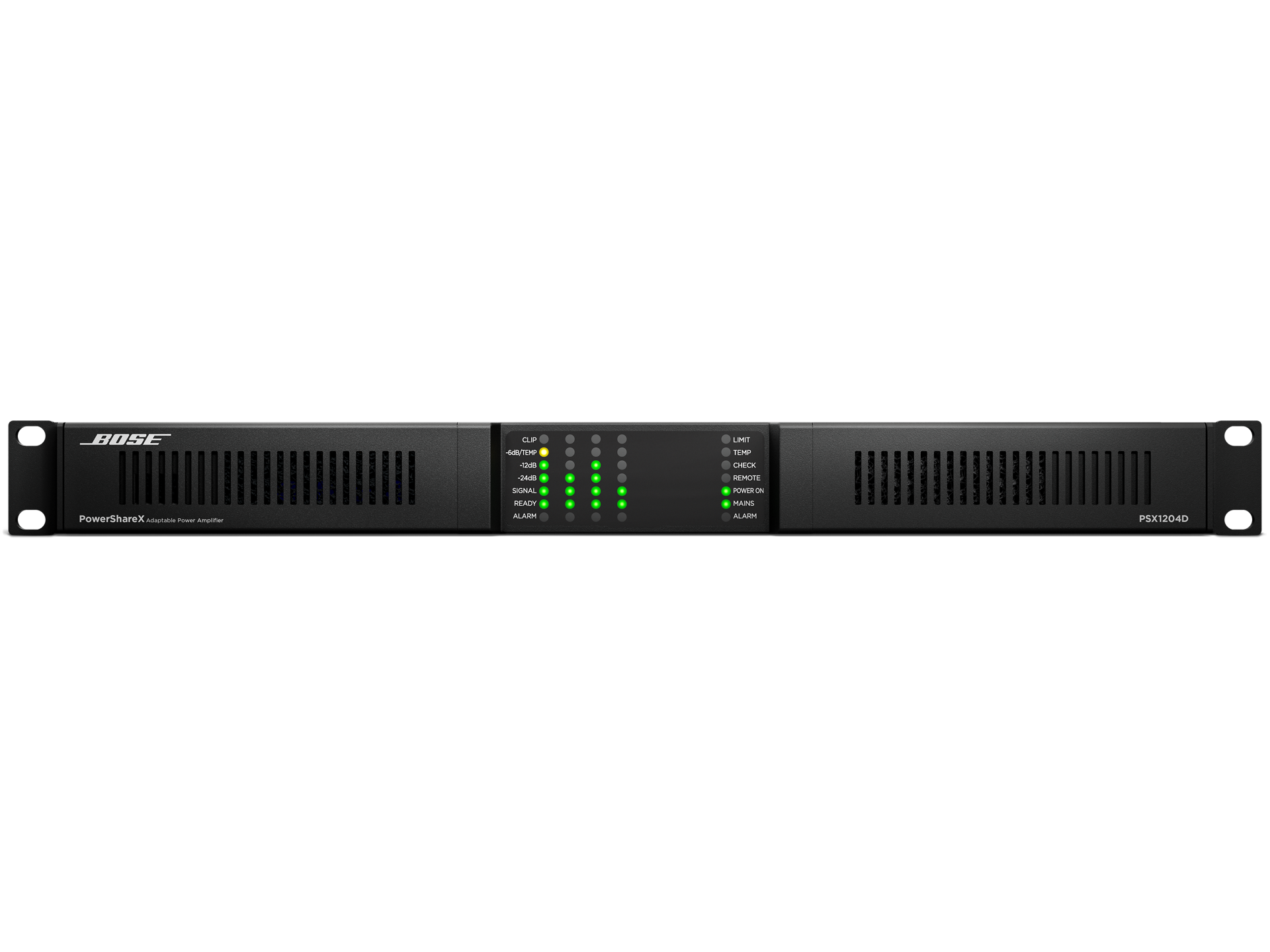

Front Panel: Power button, soft reset button, hard reset button, check button, 4 channel attenuation controls

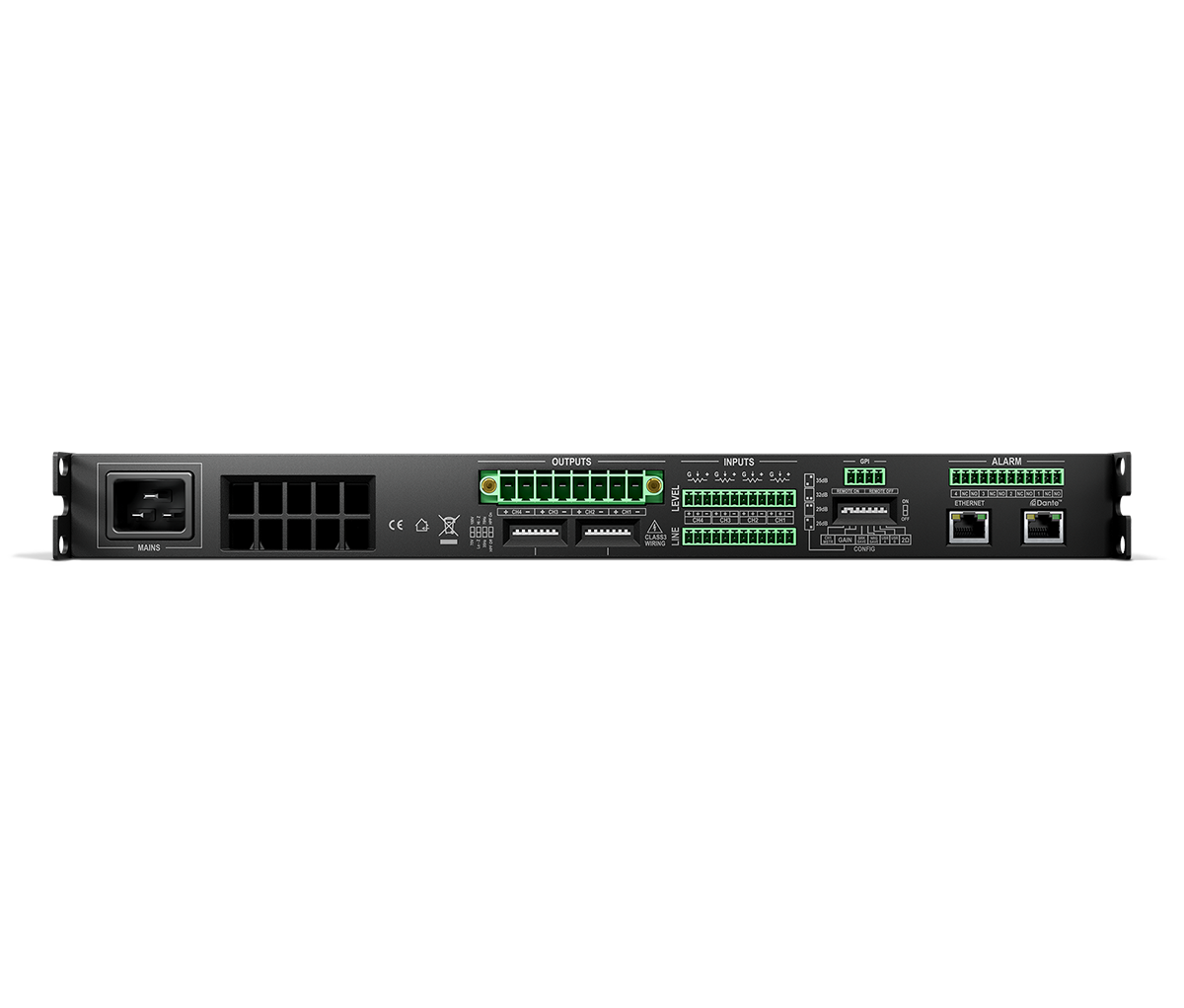

Rear Panel: 16 output DIP switches, 8 system configuration DIP switches

LED Indicators: 21 channel meter LEDs, 7 system status LEDs, 2 power status LEDs

Integrated DSP:

Delay: 2 s (input) + 100 ms (output) for time alignment

Equalization: 8-band parametric EQ (input), 9-band parametric EQ (loudspeaker)

Limiters: Peak voltage, RMS voltage, clip
