Bose POWERMATCH Dante Network Card

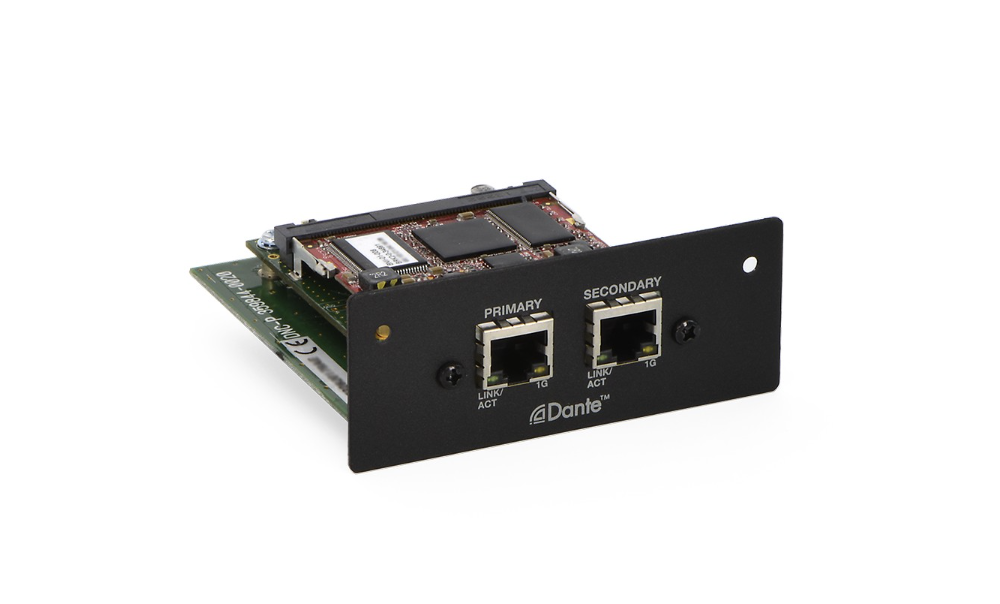

The Dante™ network card for Bose® PowerMatch® configurable professional power amplifiers provides 8 input channels of low-latency digital audio using the Dante audio networking solution from Audinate® . Eight output channels are available for diagnostic monitoring from remote locations. The Dante network card is installed into the digital expansion slot of the amplifier and includes a primary and secondary Gigabit Ethernet port. The secondary port can be configured for switched (default), redundant, or filtered for legacy product network connections. Up to 10 devices can be daisy-chained using the switched port configuration. Bose ControlSpace® Designer™ software offers comprehensive device configuration and control for Dante endpoints, Bose ESP processors and PowerMatch amplifiers to help streamline system design and installation.


The PowerMatch Dante network card provides 8×8 channels of digital audio using Dante, a digital audio networking solution. Dante operates over standard IP Ethernet networks with sample accurate synchronization and automatic device and channel discovery. This card supports both switched and redundant operation – allowing PowerMatch amplifiers to be integrated into small systems without additional network hardware or larger systems utilizing multiple endpoints with redundant network design.

Designed for a wide range of applications, including:

• Performing arts venues

• Hotels and conferencing facilities

• Religious and worship facilities

• Health clubs

• Retail and shopping centers

• Sports venues

• Schools and universities

SKU: 359844-0020 Category:
