Bose POWERMATCH Amplink Card 24-Channel

Bose

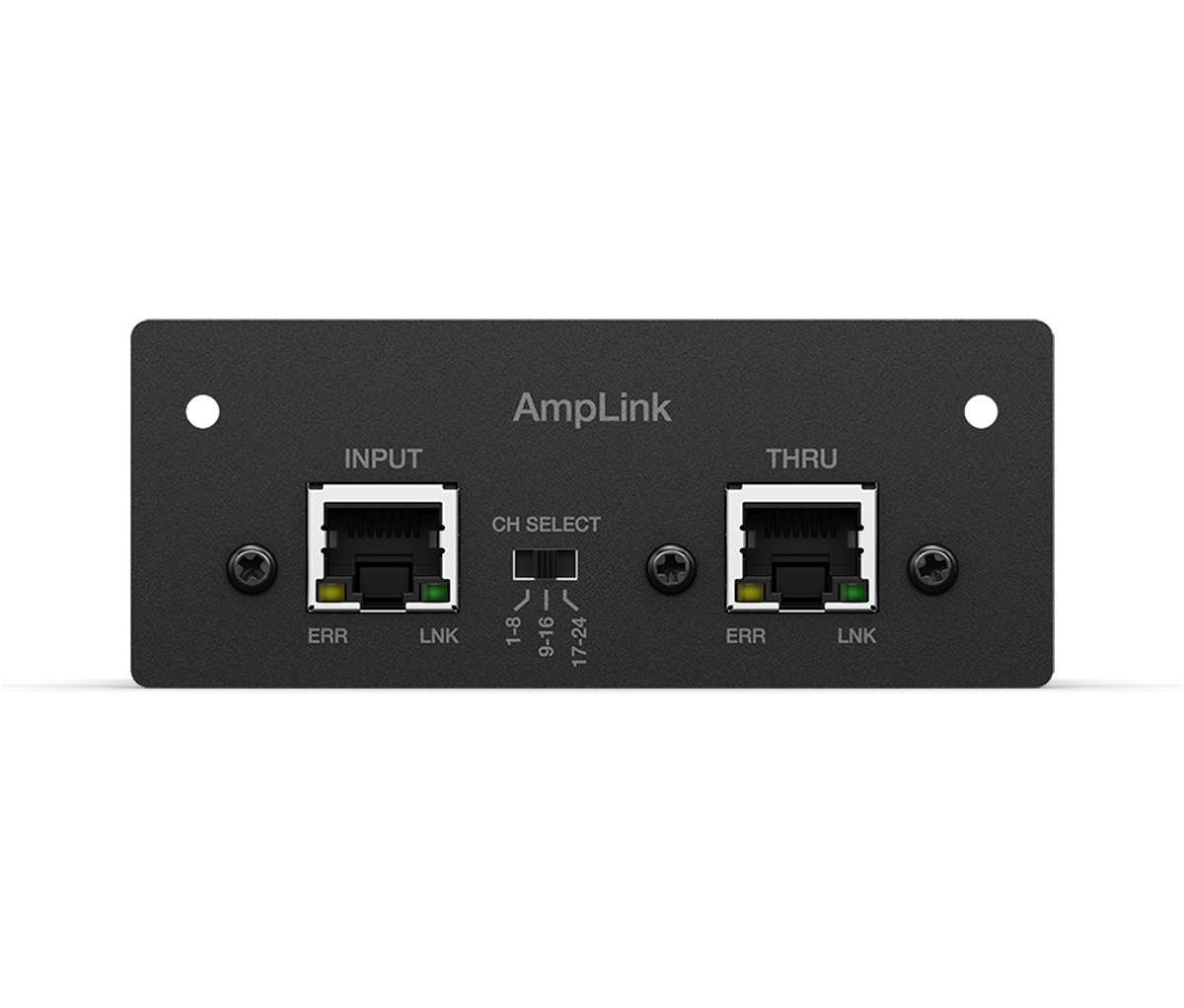

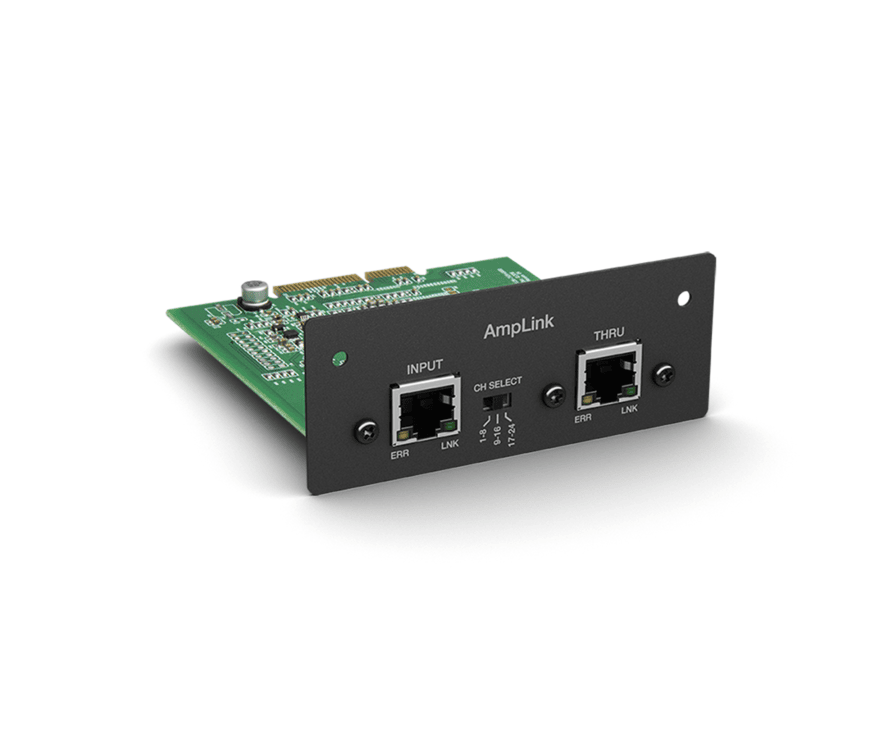

The Bose AmpLink input card for PowerMatch configurable professional power amplifiers installs into the digital expansion slot to receive 24 digital audio channels from a Bose DSP via a shielded CAT 5 cable. Each card includes a THRU connection for daisy-chaining multiple AmpLink amplifiers.

$308

Input Channels
24 (max), channel range selectable by switch on card

Sample Rate / Bit Depth
48 kHz / 24 bit

Connectors
Input, Thru using RJ-45

SKU: 772238-0110 Category:
Weight120 g
Dimensions100 × 70 × 25 mm
Brands

Specs:

Input Channels: 24 AmpLink in

Connectors: (1) RJ-45 AmpLink in, (1) RJ-45 AmpLink thru

Cable Type: Shielded Cat 5, TIA/EIA 568B straight

Max Cable Length: 10 m (32 ft)

Audio Latency: 24 ns (thru)

Sample Rate / Bit Depth: 48 kHz / 24-bit

LED Indicators: (2) Network Speed LEDs, (2) Link/Activity LEDs

Switch: 3-position bank select switch

Color: Black
