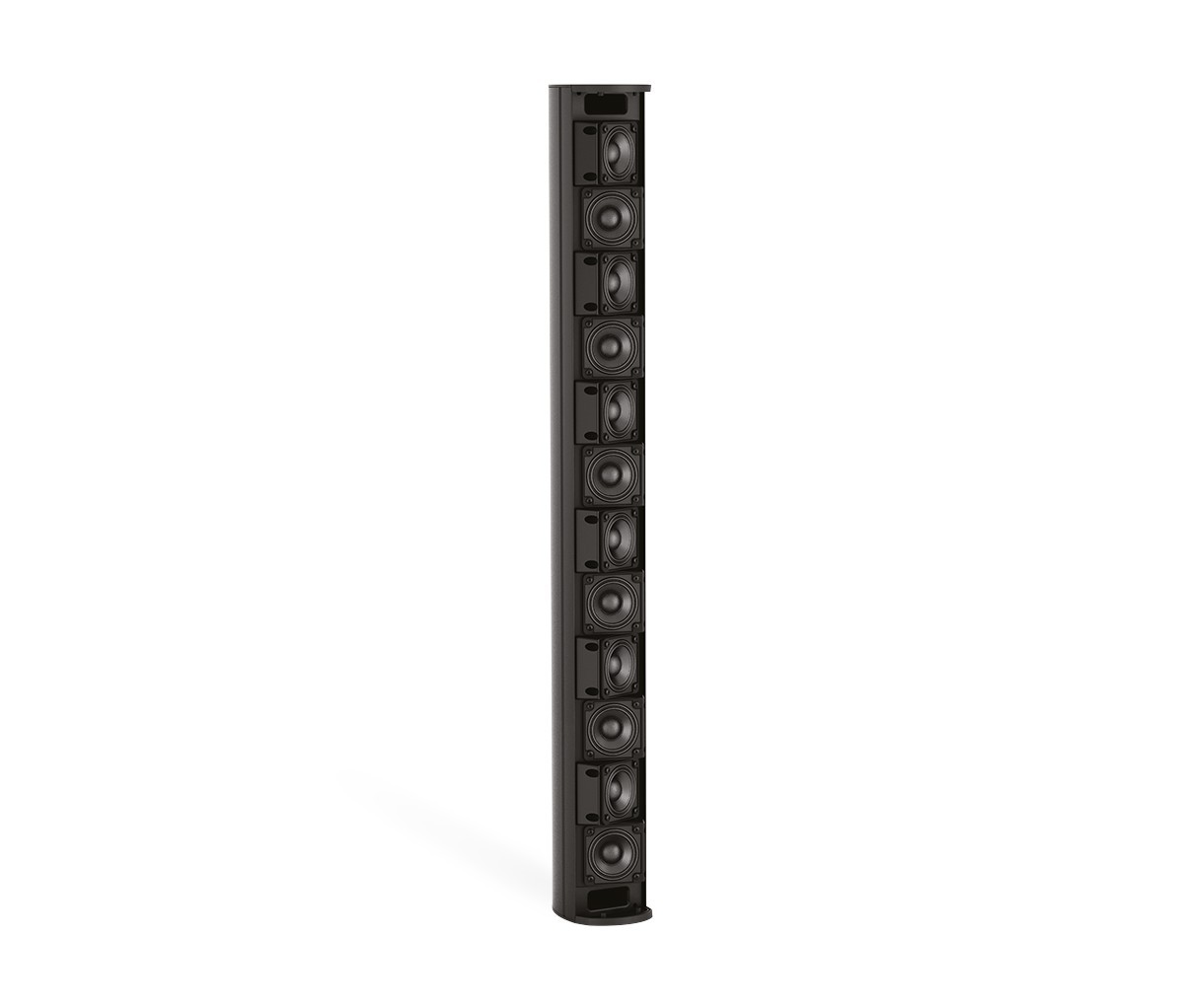

Bose Panaray MA12EX Modular Full range Line array Loudspeaker

Due to our distributors restriction, we cannot sell this product online. Please call (02) 9600 6655 for Special Price & to order this product. The product may also be

Out of stock

Bose Panaray MA12EX is a full-range loudspeaker. This is for indoor and outdoor applications.
  • Articulated Array speaker
  • Weather-resistant components
  • For indoor and outdoor applications

  • Articulated Array speaker configuration provides wider 160? horizontal coverage
  • Weather-resistant components allow use in outdoor applications.
  • Designed to provide outstanding vocal intelligibility in acoustically demanding spaces.
  • Slim column enclosure blends with almost any d?cor.
  • For indoor and outdoor applications.


  • Houses of worship
  • Multi-purpose spaces
  • Recreation
  • Restaurants and bars
  • Auditoriums
  • Transportation facilities
  • Gymnasiums
  • Atriums and malls


  • Twelve 2.25″ (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
  • Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves ?throw? distance and reduces unwanted floor/ceiling reflections
  • Articulated Array? design provides a wide 160? horizontal coverage with 20? nominal vertical coverage for a single module. Actual vertical coverage varies with the number of modules inline array configuration
  • Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers
  • Optional brackets allow easy installation of single-, double- or triple-stack line array modules

Home Speakers


  • Extruded-aluminum sidewalls with zinc-plated steel top and bottom endcaps, all powder coated


  • Outdoor per IEC 529 IPX5


  • Two (2) parallel-wired NL4 Neutrik® Speakon® connectors
  • Two (2) two-conductor barrier strips

Suspension / Mounting

  • Six (6) x M6 threaded inserts (back)


  • 38.8″ H x 4.1″ W x 5.5″ D (985 mm x 104 mm x 139 mm)

Net Weight

  • 21 lb (9.4 kg)

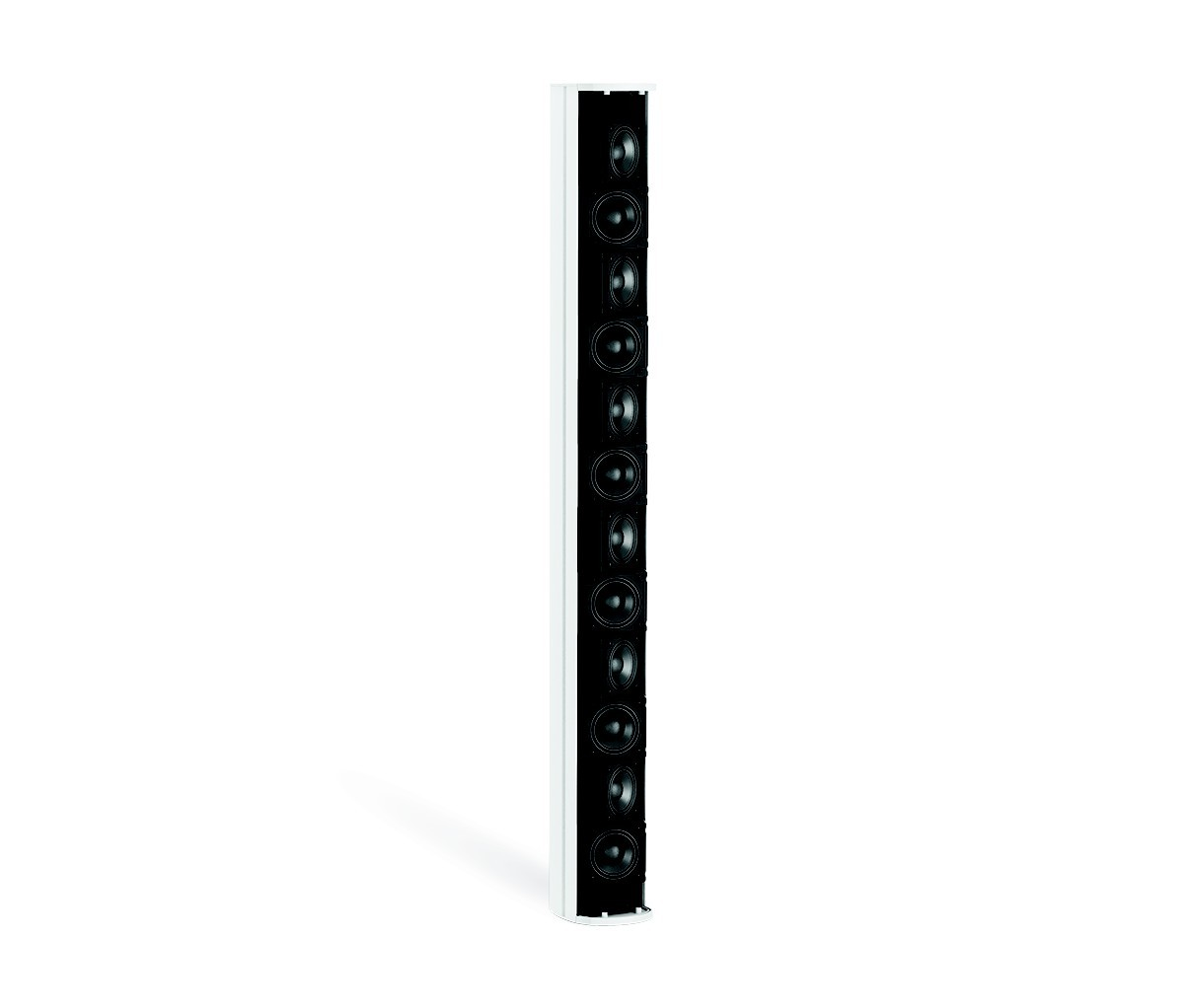

  • Black, White, Paintable

Package Contents

  • 1 loudspeaker
