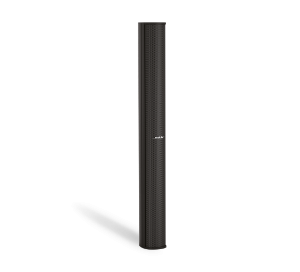

Bose Panaray MA12 Modular Mid/High Line Array Loudspeaker

Availability:

Out of stock


Bose Panaray MA12 is a mid and high loudspeaker. This is a design for providing outstanding vocal.
  • Low-frequency loudspeaker
  • For indoor applications
  • Mid/high configuration

  • Low-frequency loudspeaker Wide 145? horizontal coverage.
  • Designed to provide outstanding vocal intelligibility in acoustically demanding spaces.
  • Slim column enclosure blends with almost any d?cor.
  • For indoor applications only.

Applications

  • Houses of worship
  • Multi-purpose spaces
  • Recreation
  • Restaurants and bars
  • Auditoriums
  • Transportation facilities
  • Gymnasiums
  • Atriums and malls

Key Features

  • Twelve 2.25″ (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
  • Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves ?throw? distance and reduces unwanted floor/ceiling reflections
  • 145? horizontal x 20? nominal coverage for a single module. Vertical coverage varies with the number of modules stacked inline array configuration
  • Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement
  • Optional brackets allow easy installation of single-, double- or triple-stack line array modules
Categories

Home Audio Accessories

System Performance

Frequency Response (+/-3 dB) 1
155 Hz – 12 kHz

Frequency Range (-10 dB) 1

  • 100 Hz – 16 kHz

Nominal Dispersion 2

  • 145° H x 20° V

Recommended High-Pass Filter

  • 125 Hz

Loudspeaker EQ

  • Required

Overload Protection

  • PTC / Lamp

Long-Term Power Handling 3

  • 300 W (1200 W peak)

Sensitivity (SPL / 1 W @ 1 m) 4

  • 88 dB SPL

Maximum SPL @ 1 m 5

  • 113 dB SPL (119 dB SPL peak)

Nominal Impedance

  • 8 Ω

Transformer Taps (70/100 V)

  • CVT-MA12 transformer available

Transducers

Driver Compliment

  • Twelve (12) 2.25″ (57 mm) mid/high-frequency drivers

Physical

Enclosure

  • Extruded-aluminum sidewalls with steel top and bottom endcaps, all powder coated

Grille

  • Powder-coated steel grille

Environmental

  • Indoor use only

Connectors

  • Two (2) parallel-wired NL4 Neutrik® Speakon® connectors
  • One (1) two-conductor barrier strip

Suspension / Mounting

  • Four (4) x M6 threaded inserts (back)

Dimensions

  • 38.8″ H x 4.2″ W x 5.0″ D (984 mm x 105 mm x 128 mm)

Net Weight

  • 19 lb (8.5 kg)

Shipping Weight

  • 21 lb (9.4 kg)

Product Code

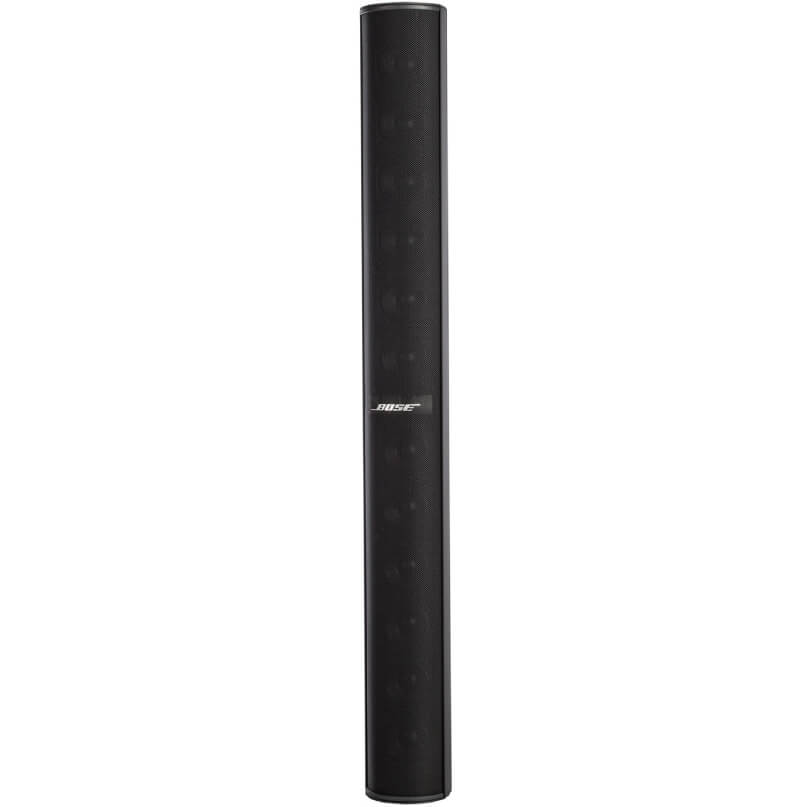

Black

  • 040189

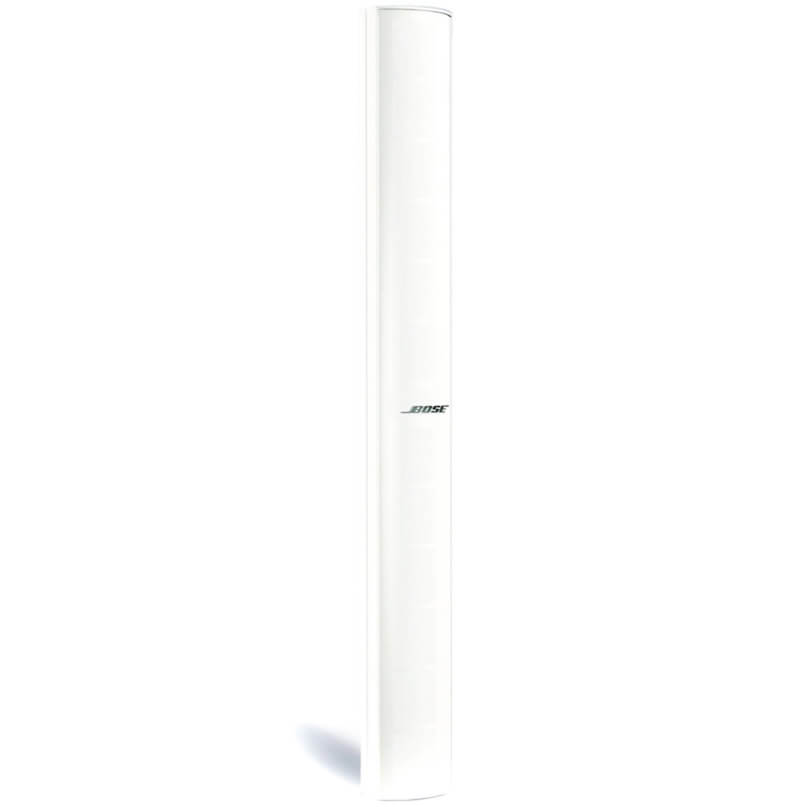

White

  • 040188
