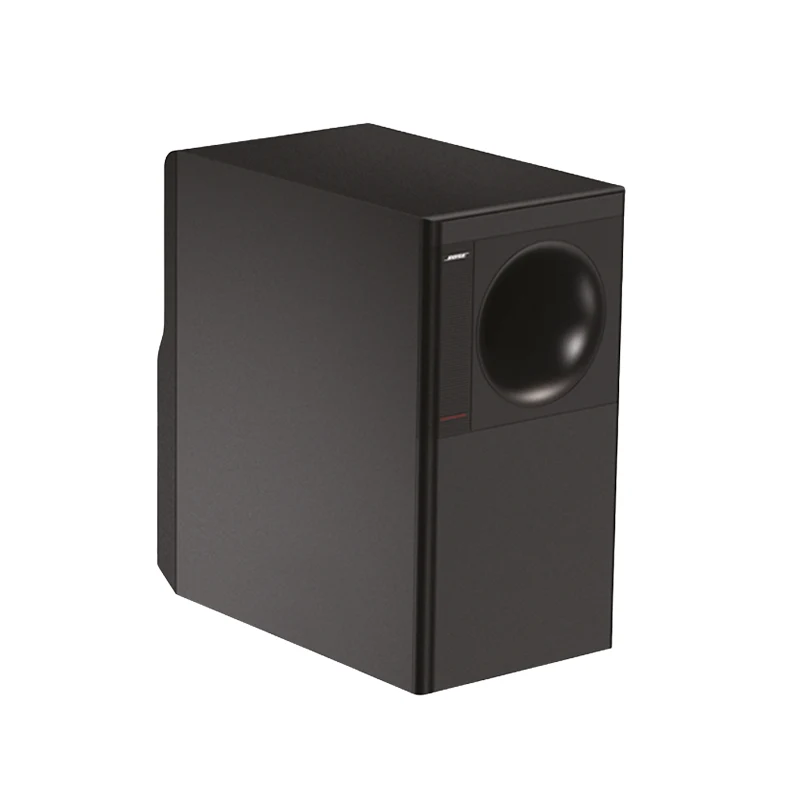

Black subwoofer with a large circular front driver in a rectangular cabinet.
White front-loading laundry appliance with a large circular door and a side vent panel.
Sales Specialist
Need help? Contact our sales specialist
(02) 9600 6655 | Email us
,

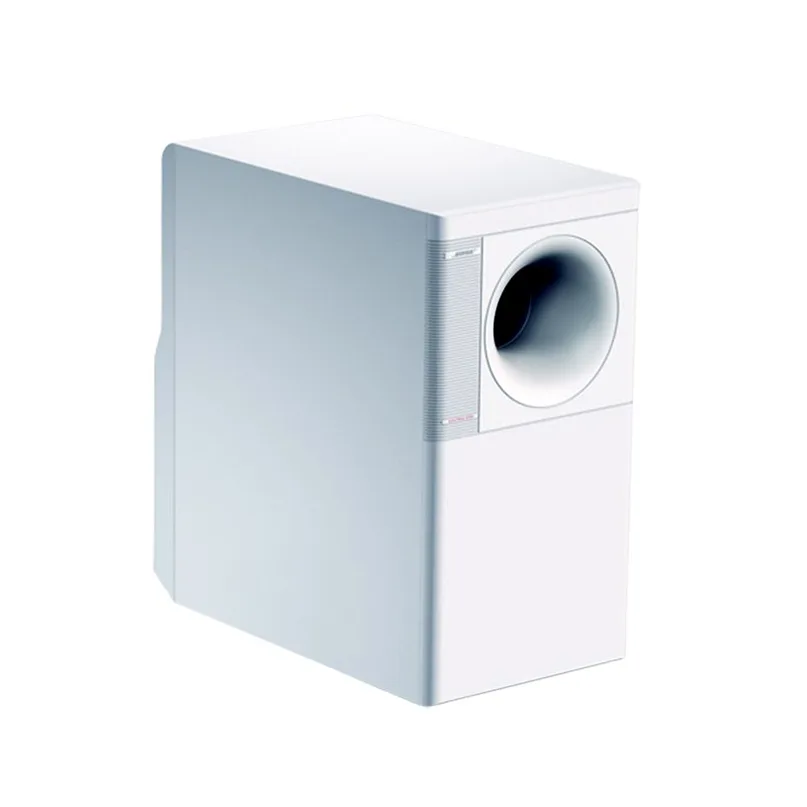

Bose FreeSpace 3 Surface Mount Bass Module

Bose
Availability:

Out of stock

Designed to provide surface-mount bass augmentation for new and existing background music systems. Features one 5.25-inch (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion. For indoor applications only.

KEY FEATURES

  • Low-frequency loudspeaker featuring a woofer that delivers deep, non-localized bass without audible distortion
  • For surface-mount applications
  • Acoustimass speaker technology filters out audible distortion to deliver non-localized bass
  • Module design allows parallel connection of multiple bass modules
  • Selectable or low impedance

This product is currently out of stock and unavailable.

Bose FreeSpace 3 Acoustimass bass modules combine with satellite speakers to yield crystal-clear, extended-bandwidth reproduction of voice and music for retail, restaurant, hospitality operations, and a wide range of other installed applications. This speaker’s 5.25-inch driver delivers chest-pounding bass all the way down to 40Hz, while 70V/100V transformer taps at 25W, 50W, 100W, and 200W enable it to work with a wide range of playback systems. At Sweetwater, we appreciate the unparalleled sound quality and impressive performance of the FreeSpace 3 Acoustimass bass module — it’s a top-shelf solution for a myriad of applications.

  • 100W (mono)/50W (stereo), 5-ohm surface-mount subwoofer/bass module
  • Designed to work with FreeSpace 3 satellite speakers
  • 5.25” low-frequency driver ensures extended-bandwidth audio reproduction
  • Delivers chest-pounding bass all the way down to 40Hz
  • 70V/100V transformer taps at 25W, 50W, 100W, and 200W for compatibility with a wide range of systems
SKU: N/A Categories: ,
Weight7900 g
Dimensions356 × 191 × 345 mm
Brands

Color

Black, White

COMPLIANCE
EN 54-24 CertifiedNo
PHYSICAL
ColorsBlack, white
Enclosure MaterialHigh-density wood composite with solid color PVC laminate
EnvironmentalIndoor only
Suspension/MountingWall-mount bracket, preattached
Product Dimensions (H×W×D)14.0 in × 7.5 in × 13.6 in (356 mm × 191 mm × 345 mm) / width with bracket: 8.8 in (222 mm)
Net Weight17.5 lb (7.9 kg)
Shipping Weight25.0 lb (11.3 kg)
PERFORMANCE
Frequency Range (-10 dB)40 Hz – 315 Hz
Coverage, HorizontalOmnidirectional below 200 Hz
Calculated Maximum SPL @ 1 mPer channel: 96 dB continuous, 102 dB peak / Mono: 102 dB continuous, 108 dB peak
Nominal Impedance5 Ω mono direct (transformer bypassed)
Power Handling, long-term continuous70/100 V: 200 W mono / Low impedance: 50 W per channel stereo or 100 W mono
Power Handling, Peak70/100 V: 800 W peak mono / Low impedance: 200 W peak per channel stereo or 400 W peak mono
Recommended Signal ProcessingRecommended
Sensitivity (SPL/1 W at 1 m)Per channel: 76 dB / Mono: 79 dB
Transformer Taps, 100V25 W, 50 W, 100 W, 200 W
Transformer Taps, 70V25 W, 50 W, 100 W, 200 W
Coverage, VerticalOmnidirectional below 200 Hz
TRANSDUCERS
Driver ProtectionRecommended high-pass filter 40 Hz high-pass filter
Low-Frequency5.25 in (133 mm) dual-voice-coil low-frequency driver
