In-Ceiling and In-Wall Speakers

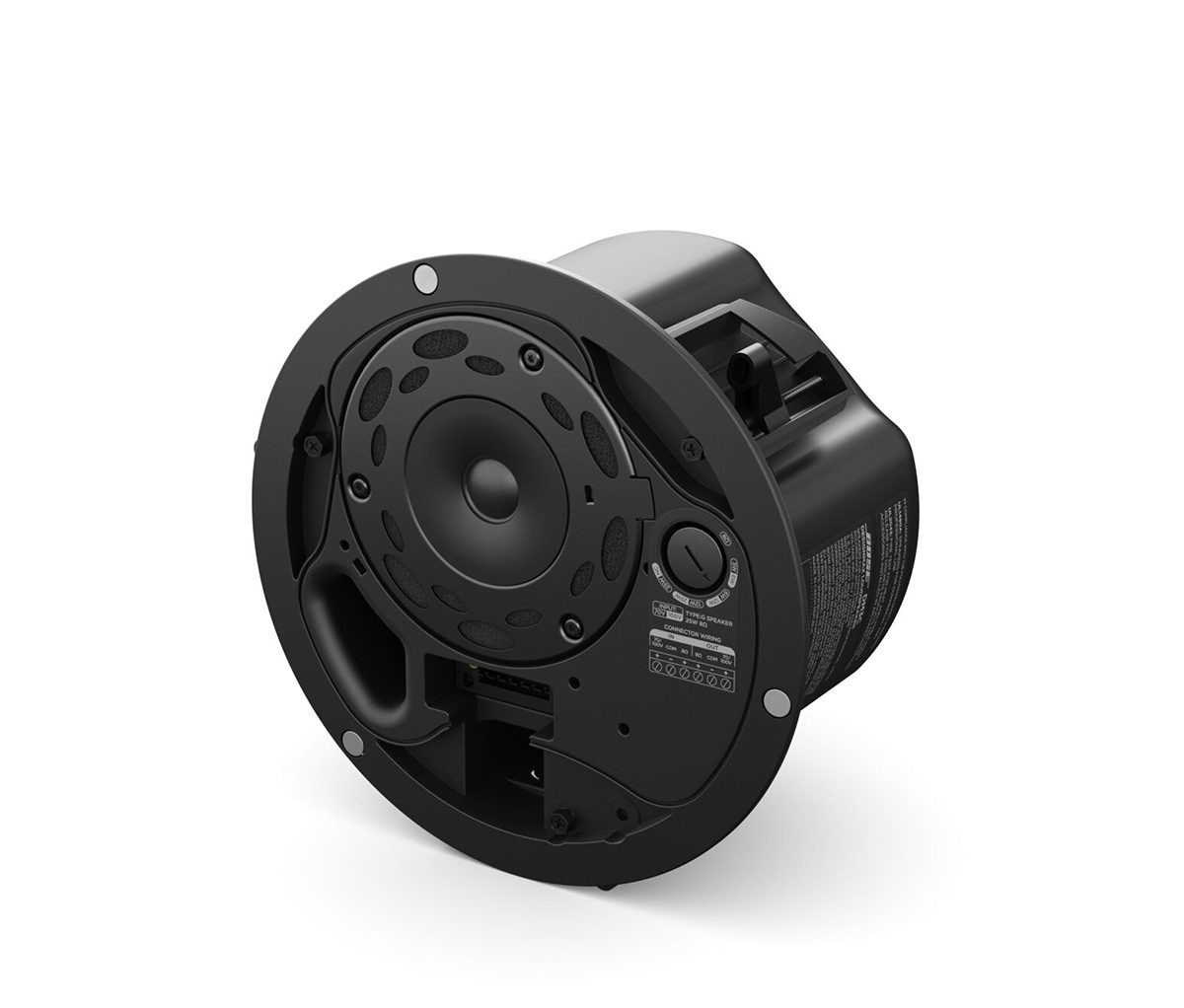

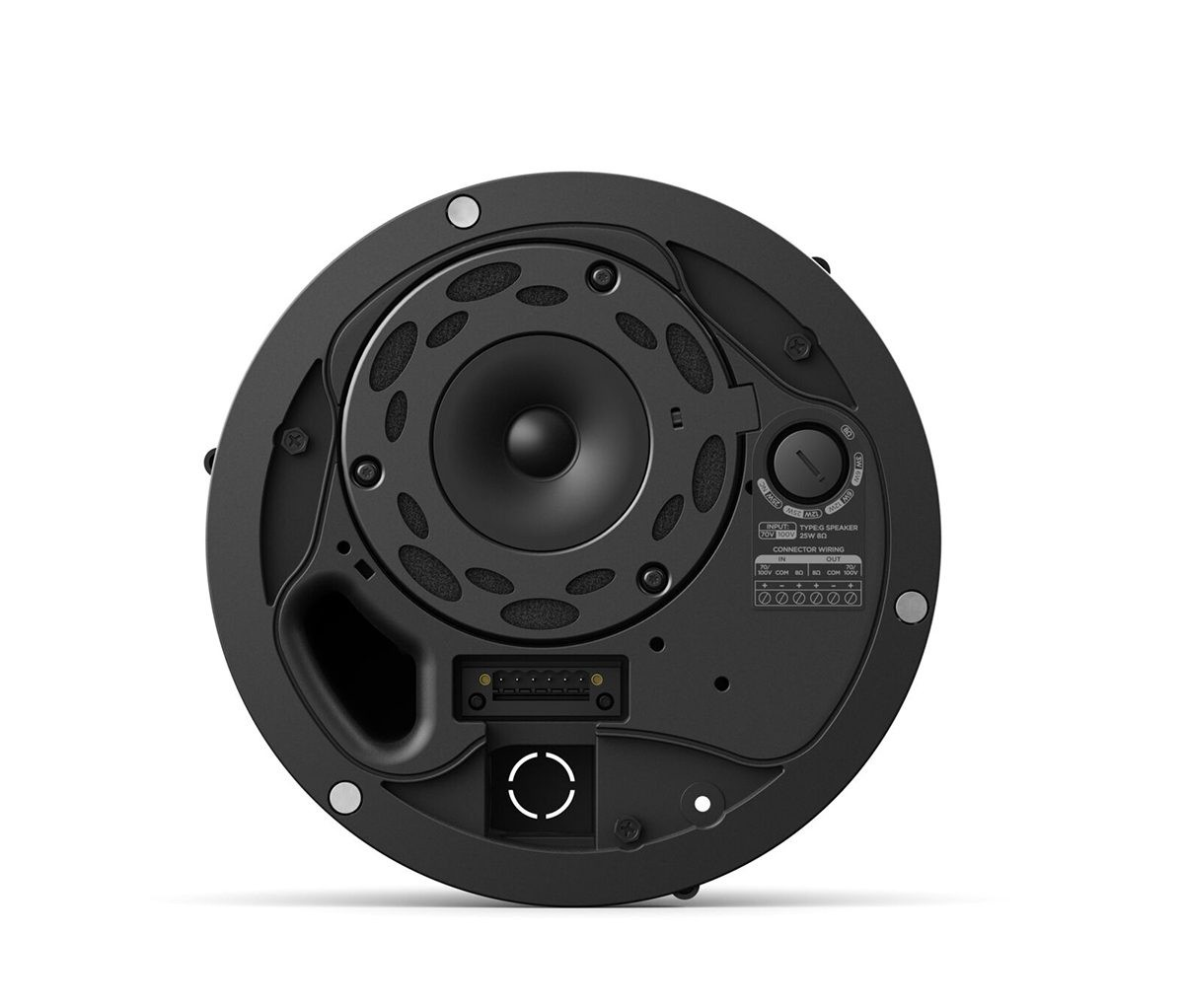

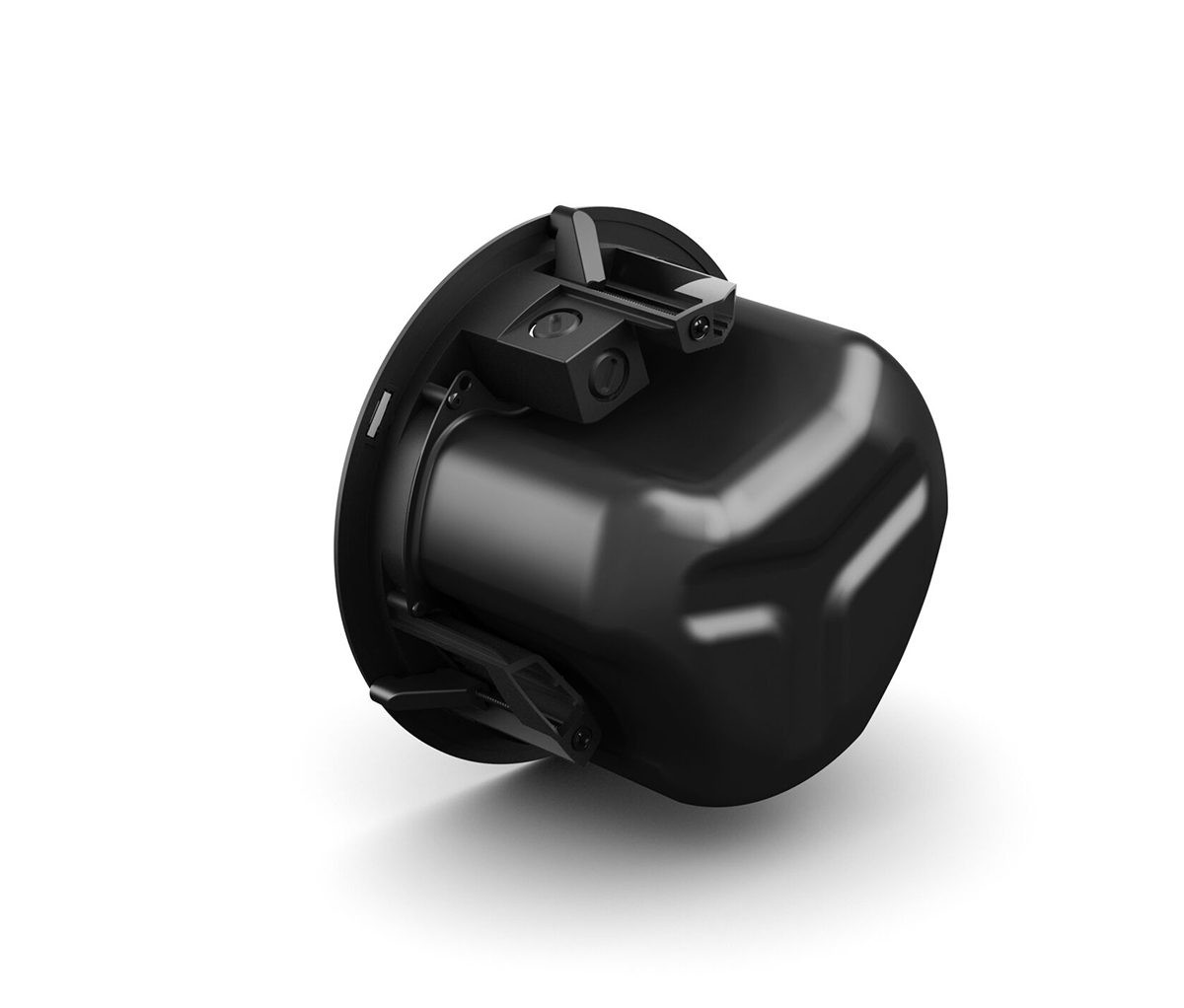

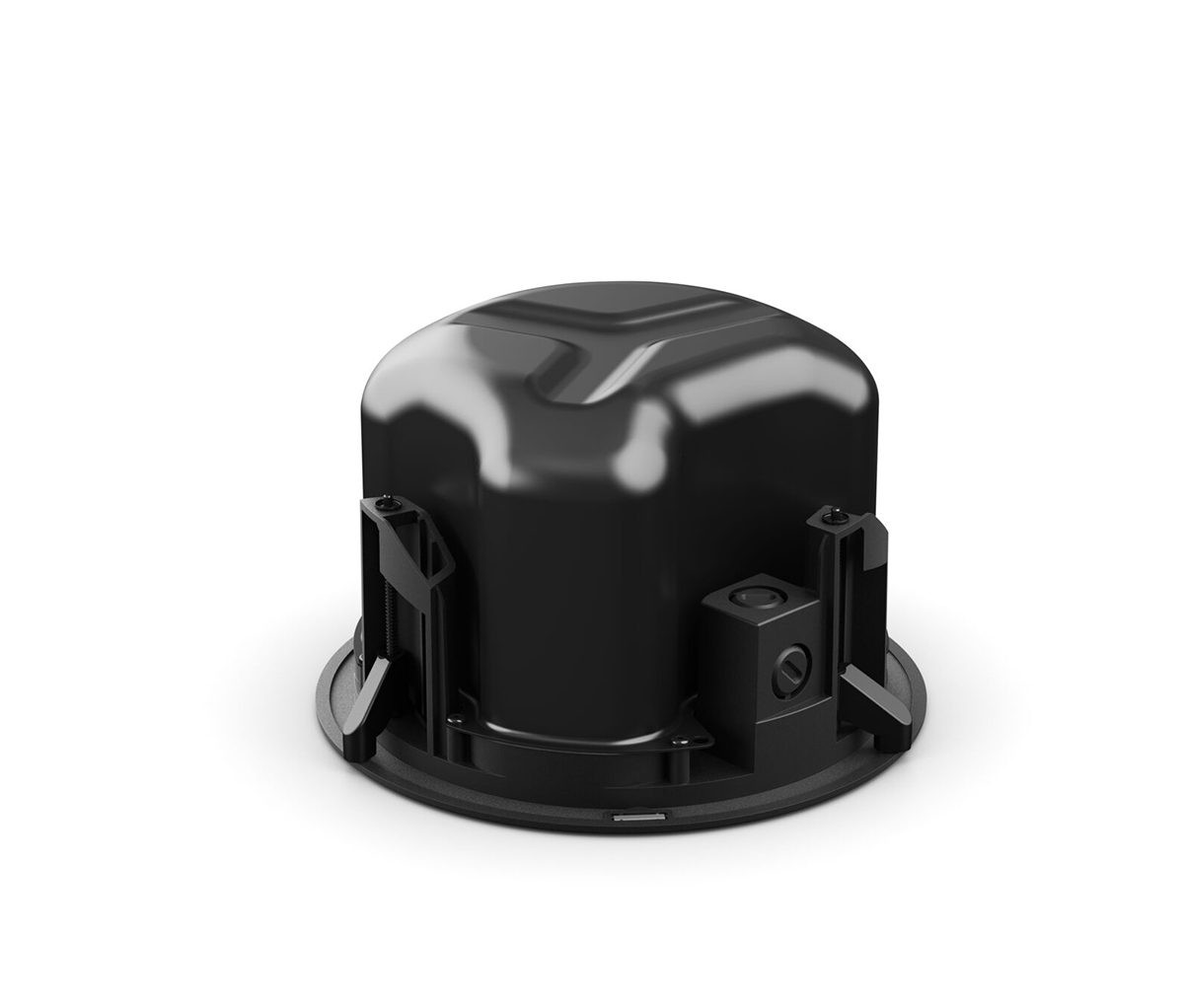

Bose DesignMax DM3C Loudspeakers (1 Pair)
Coaxial 3.5″ in-ceiling speakers with premium clarity and surprising bass for compact installs.
$949
The Bose DesignMax DM3C loudspeakers deliver articulate highs and impressive low-end from a compact in-ceiling design. With a 3.5″ woofer and 0.75″ coaxial tweeter utilizing the Dispersion Alignment system, they ensure consistent sound coverage at 135° conical. Designed for seamless aesthetics with paintable, magnetically attached grilles, these 30-watt speakers install quickly using the patented QuickHold system. Ideal for hospitality, retail, or conference applications, the DM3C enhances any space with performance and style.
| Weight | 2700 g |
|---|---|
| Dimensions | 255 × 255 × 154 mm |
| Brands | |
| Color | Black, White |
Specs:
Frequency Range (-10 dB): 75 Hz – 20,000 Hz
Sensitivity (SPL/1 W at 1 m): 83 dB
Maximum SPL (Calculated @ 1 m): 98 dB
Power Handling (Continuous/Peak): 30 W / 120 W
Nominal Impedance: 8 Ω (transformer bypass)
Transformer Taps (100V): 6, 12, 25 W, bypass
Transformer Taps (70V): 3, 6, 12, 25 W, bypass
Coverage: 135° conical (H/V)
Transducers:
 - LF: 1 × 3.25 in (83 mm) woofer
 - HF: 1 × 0.75 in (20 mm) coaxial neodymium tweeter
Crossover: 1.7 kHz passive 2-way
Driver Protection: High-pass at 80 Hz, 24 dB/octave
EQ/Processing: Not required (Bose EQ/SmartBass optional)
Mounting: (3) QuickHold arms, (3) safety cable points
Compliance: UL-1480A, UL2043, NFPA 70 & 90A, CE
Environment: Indoor only
Enclosure: Engineered plastic with steel backcan

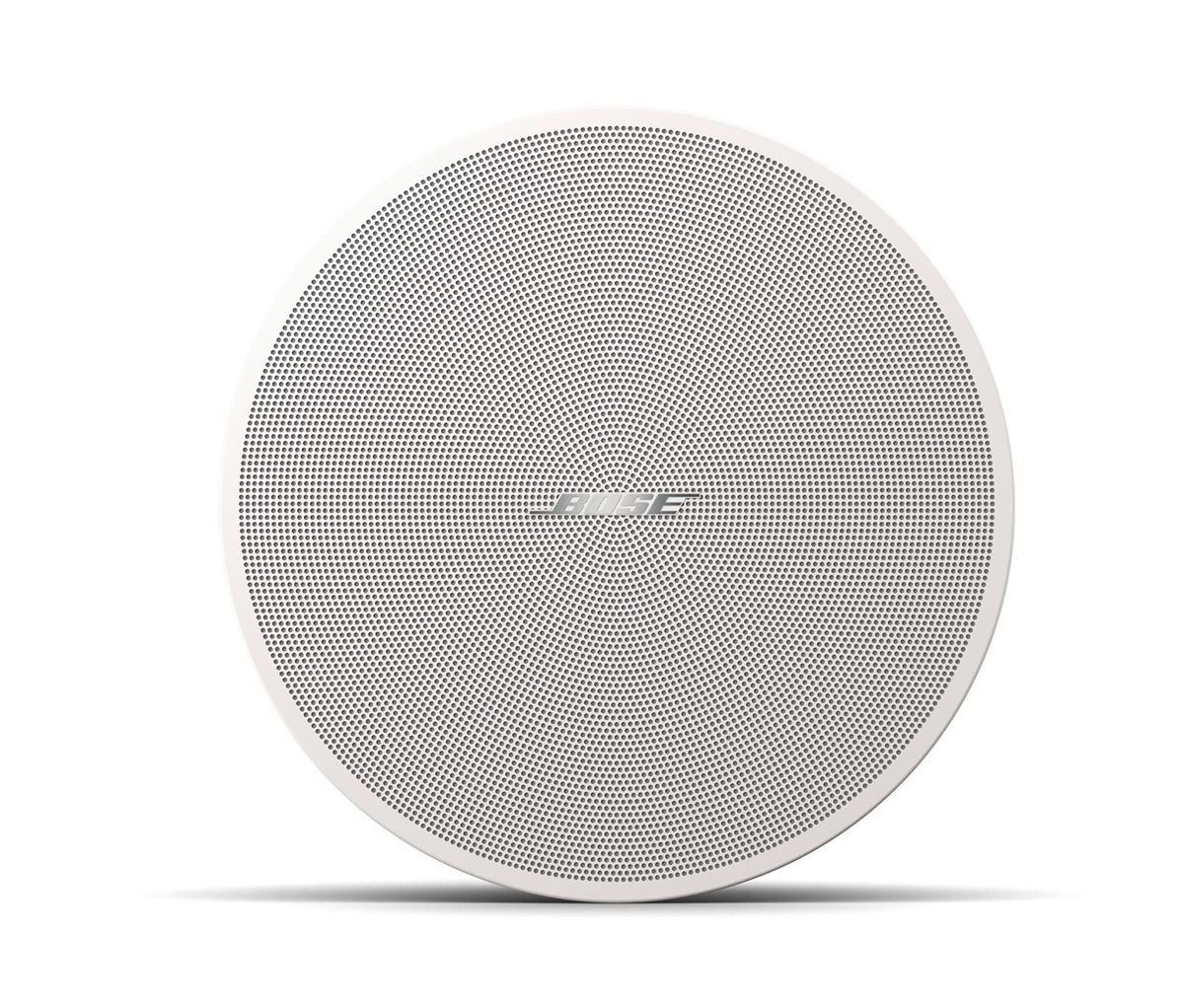

Grille: Perforated steel, paintable, magnetic with safety tether
