Bose CONTROLSPACE EX-1280C Processor


Deliver a better end-user experience with conferencing systems that sound great and are easier to set up and operate. A flexible DSP platform for scalable systems, ControlSpace EX conferencing processors have the features to support conferencing systems of various sizes and the flexibility to meet future needs. They’re part of a comprehensive family of conferencing products — audio processors, amplifiers, ControlSpace EX Dante Endpoints, and Bose loudspeakers — that deliver high-quality audio from end to end in any conference room. Choose from three different models, combine them to match project requirements and budget, and ensure the conferencing system you’re building today can adapt and grow tomorrow.


All-in-one design supports simultaneous VoIP, PSTN and USB soft codecs in a single 1RU model

12 acoustic echo cancellers (AEC) route to both analog and Dante® inputs; multiple references allow one EX-1280C processor to support multiple rooms or AEC-sharing across multiple processors

Adaptable noise cancellation on each AEC channel; non-linear processing and comfort noise to enhance the clarity and intelligibility of meetings

2-line VoIP with an internal web interface allowing IT personnel to configure VoIP parameters without design file access or integrator involvement

PSTN connection (RJ-11) for worldwide POTS/analog telephone systems

USB connection facilitates easy integration with PC soft codecs

Dante audio networking supports 64 x 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones

Bose AmpLink port provides 8-channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose amplifiers

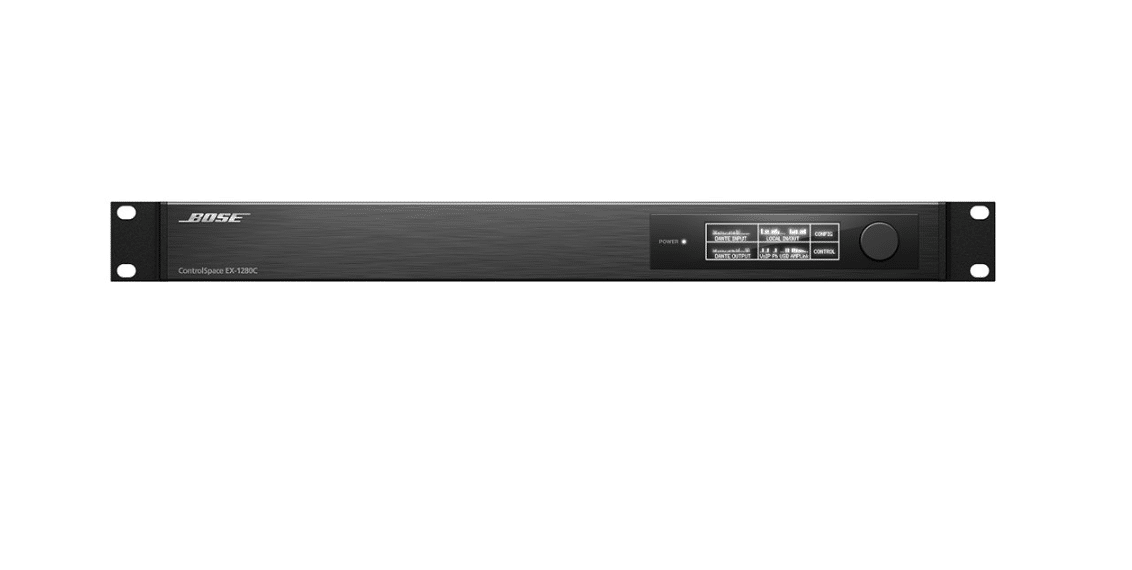

Front-panel interface features large OLED display and rotary encoder for setting network parameters and monitoring channel activity

GPIO (5 in/5 out) for external connections including microphone pushbuttons or driving microphone LEDs

SKU: 772234-5110 Category:
Weight 5395 g
