Audio Controller

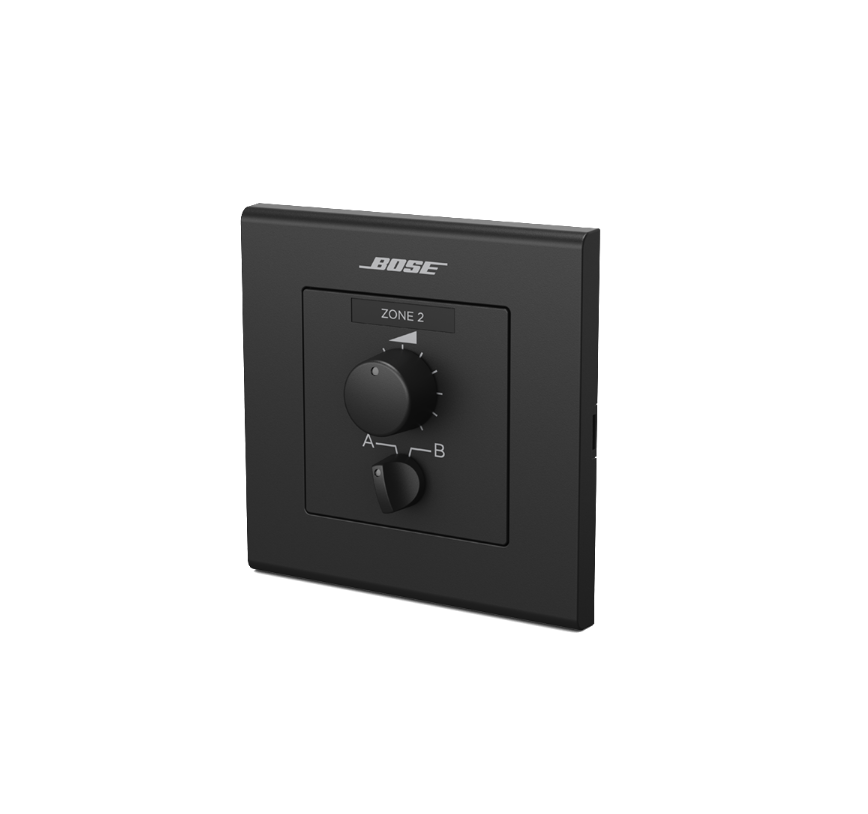

Bose CONTROLCENTER CC-2
Bose® ControlCenter CC-2 zone controllers provide volume control and A/B source selection for FreeSpace® and ControlSpace® products. They are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan. The zone controllers use Cat 5 wiring and can be daisy-chained using the two RJ-45 connectors for simplified wiring.
$170
- ControlCenter Series – Remote end-user interfaces for use with Bose FreeSpace® amplifiers, PowerShare amplifiers and ControlSpace®, processors. Three control configurations offer volume control (CC-1), volume plus A/B source selection (CC-2) and volume plus A/B/C/D source selection (CC-3).
- Variant Options – Available in white or black and is offered in North American, Japanese, and EU form-factors to adapt to common electrical box sizes.
- Support for Decora®-style wall plates – North American and Japanese models are designed for use with Decora-style wall plate covers (not included). The 86×86 mm European model is supplied as a finished wall plate that supports 60 mm screw spacing.
- Custom Labels – Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling.
| Weight | 160 g |
|---|---|
| Dimensions | 38 × 38 × 105 mm |
| Brands |
Specs:
Functions: Volume control, A/B source selection
Compatible Systems: FreeSpace and ControlSpace systems (e.g., ESP-880A, IZA series)
Control Interface: Volume knob and source selector knob
Connectors: 2 × RJ-45, TIA/EIA 568B wiring standard
Max Cable Length:
609 m (2000 ft) to FreeSpace amplifiers
152 m (500 ft) shielded / 30 m (100 ft) unshielded to ControlSpace processors
Max Controllers per Processor: 2
Cable Type: Cat 5
Custom Labeling: Includes pre-printed and blank label options
Mounting: 1-gang electrical box (NA, EU, JP standards)
Available Colors: Black, White
