Blustream RX70AMP HDBaseT? Receiver with Integrated Audio Amplifier

Blustream
Availability:

Out of stock


Our RX70AMP HDBaseT? Receiver with an integrated audio amplifier delivers advanced integration of audio within an AV installation. The HDBaseT? receiver enables HDMI and Bi-directional IR to be received from up to lengths of 70m over a single CAT cable.
  • Video Connectors
  • Audio Connectors
  • IR Port
  • Power Supply
  • HDCP compliant

  • The audio from the HDBaseT? signal can then be extracted and output via either the 30W 2.1ch digital amplifier or via digital audio output.
  • The RX70AMP also features local HDMI and audio inputs, ARC integration, line-level output, EDID management, and RS-232 control.

Key Features

  • Integrated 2.1ch Class-D 30 watt per channel digital stereo amplifier
  • Analogue pre-out Left / Right output + Subwoofer output
  • 3x Audio / Video inputs:
  • HDBaseT? / Local HDMI source
  • ARC (Audio Return Channel) from the connected compatible display device
  • Local analogue Left/Right audio input
  • Extends HDMI up to a distance of 70m over a single CAT cable from a compatible HDBaseT? transmitter
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio de-embedded to both analogue L/R audio and coaxial digital outputs concurrently
  • Supports Audio Return Channel (ARC) via HDMI and optical input (selectable)
  • Supports bi-directional RS-232 pass through
  • Supports bi-directional IR from all input and output locations
  • Supplied with Blustream IR receivers and emitters
  • Control via IR (remote control included), RS-232

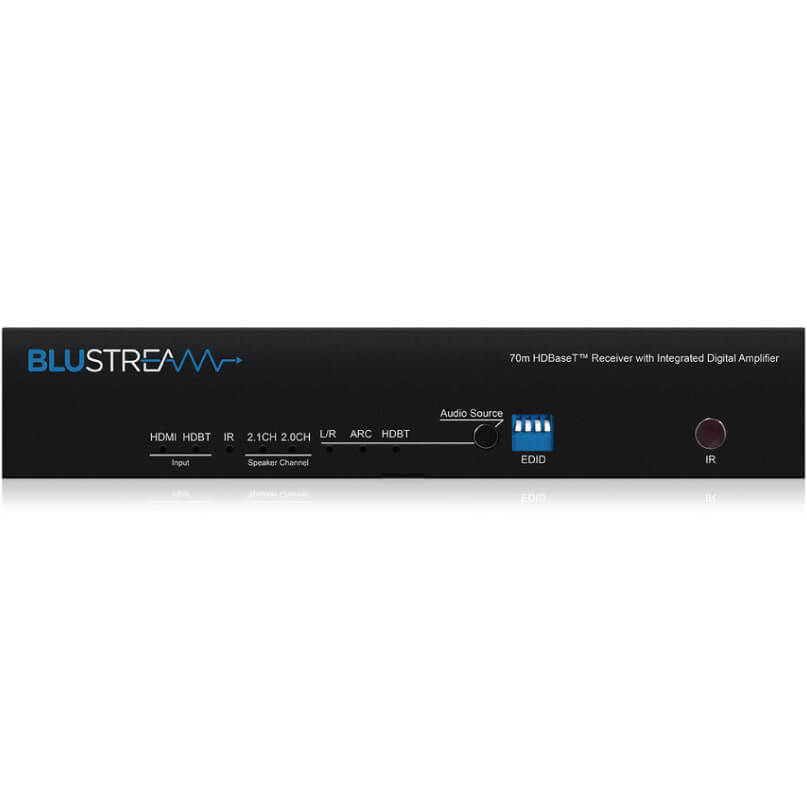

  • Control via front panel button for audio input
  • Advanced EDID management
  • HDCP compliant
SKU: RX70AMP Category:
Brand

Specifications

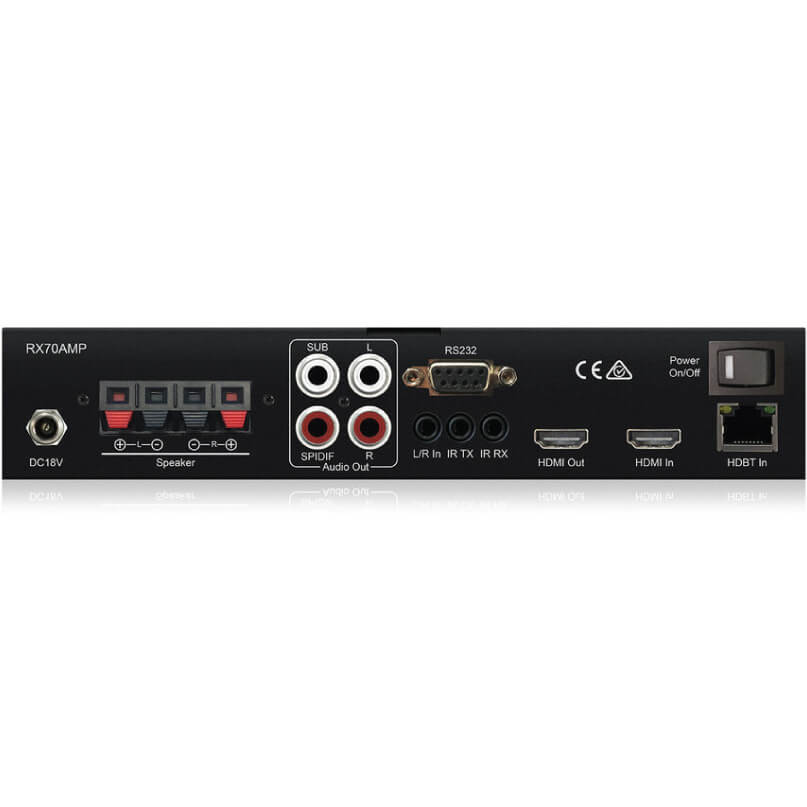

  • Video Input Connectors: 1x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
  • Video Output Connectors: 1x HDMI Type A, female
  • Audio Output Connectors: 1x RCA (SPDIF), 1x RCA (subwoofer), 1x 4-pin spring terminal connector, 2x RCA (L/R)
  • DIP Switch: 4-pin
  • RS-232 Serial Port: DB9, female
  • IR Input Ports: 1x 3.5mm stereo jack
  • IR Output Ports: 1x 3.5mm mono jack
  • Mounting brackets included
  • Product Dimensions (WxDxH): 220 x 135 x 40mm (with connections)
  • Product Dimensions (WxDxH): 220 x 125 x 40mm (without connections)
  • Product Weight: 0.8kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): 340 x 205 x 125mm
  • Shipping Weight: 2.0kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Power Supply: 18V / 4A DC, screw type connector

  • 1x RX70AMP
  • 1x Remote control
  • 1x Rack mounting kit
  • 1x 18V / 4A power supply
  • 1x IR emitter
  • 1x IR receiver
