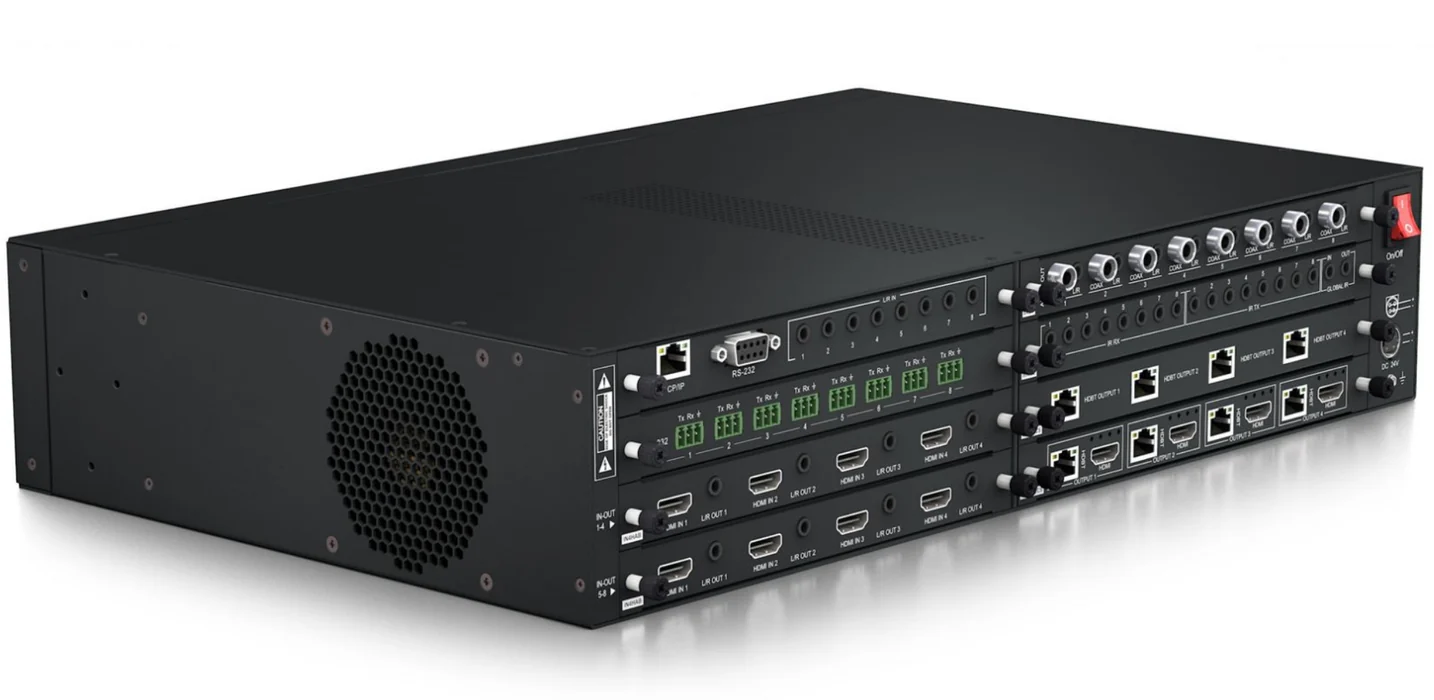

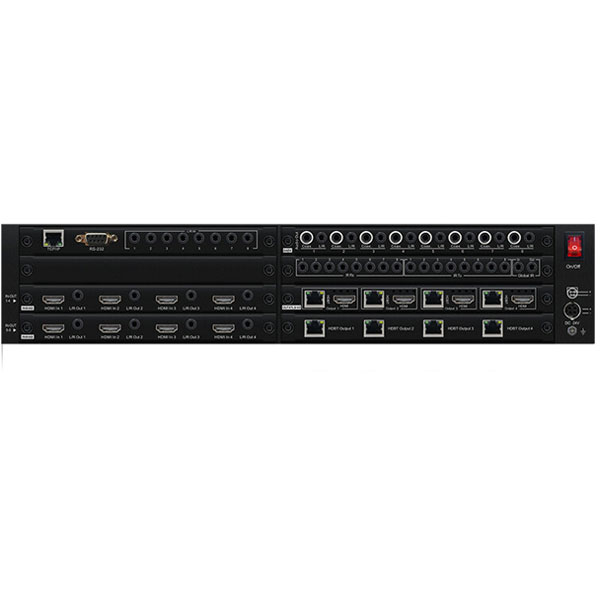

Blustream PRO88HBT100CS
Seamless 4K HDR Distribution: The Ultimate 8×8 Matrix Solution for Professional AV Setups.
$10,122
Blustream PRO88HBT100CS is a high-performance 8×8 HDMI 2.0 matrix switcher designed for professional AV installations requiring robust 4K HDR signal distribution. Utilizing advanced HDBaseT™ technology and Color Space Conversion (CSC), it delivers HDMI, bi-directional IR, and Power over Cable (PoC) over a single CAT cable, extending 4K 60Hz 4:4:4 signals up to 70 meters and 1080p signals up to 100 meters. The matrix supports independent downscaling of 4K inputs, allowing compatibility with both 4K and 1080p displays simultaneously. Additional features include four simultaneous HDMI outputs, audio breakout with line-level preamp volume control, and a web-based interface for control and configuration.
| Weight | 500 g |
|---|---|
| Dimensions | 440 × 173 × 422 mm |
| Brands |
Video Input Connectors: 8 x HDMI Type A, 19-pin, female
Video Output Connectors: 8 x HDBaseT™ RJ45 connector, 4 x HDMI Type A, 19-pin, female
Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
TCP/IP Control: RJ45, female
Ethernet / Network: RJ45, female
IR Input Ports: 9 x 3.5mm stereo jack
RS-232 Serial Port: DB-9, female
Rack-Mountable: 2U rack height, rack ears included
Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
Shipping Weight: 5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 12V/6A DC
