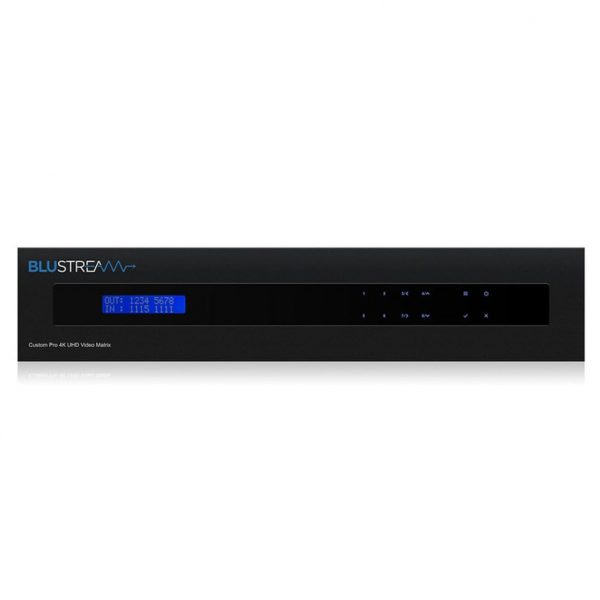

Blustream PRO48HBT70 Custom Pro 4×8 HDBaseT? Matrix (70m) – 2-Way IR and Audio Breakout

  • Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
  • Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
  • Operating Temperature: 32?F to 104?F (0?C to 40?C)
  • Storage Temperature : -4?F to 140?F (-20?C to 60?C)
  • Power Supply: 24V/6A DC

The PRO48HBT70 is a configured 4K HDCP 2.2 compliant 4×8 HDBaseT? Matrix, transmitting HDMI, Bi-directional IR, and PoH (PoE) up to lengths of 70m @ 1080p over a single CAT cable. The matrix also provides advanced audio breakout features. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience.


Advanced HDBaseT? technology offering uncompressed video and audio with zero latency

Supports 4K UHD video up to 40m @ 4K (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission

Control of Matrix via front panel, RS-232, TCP/IP, and Web GUI

Features 8 x HDMI audio breakouts from corresponding video zone outputs to coaxial digital and analog L/R audio outputs

8 x IR inputs for distribution of IR to compatible HDBaseT? receivers

Quick-release card module fittings allowing a simple population of input and output cards

Supports PoH (Power over HDBaseT?) when used with compatible HDBaseT? input/output cards

Web interface module for control and configuration of Matrix

3rd Party drivers available for all major home control brands

Advanced EDID management

HDCP 2.2 compliant

SKU: PRO48HBT70 Category:

Home Audio Accessories
