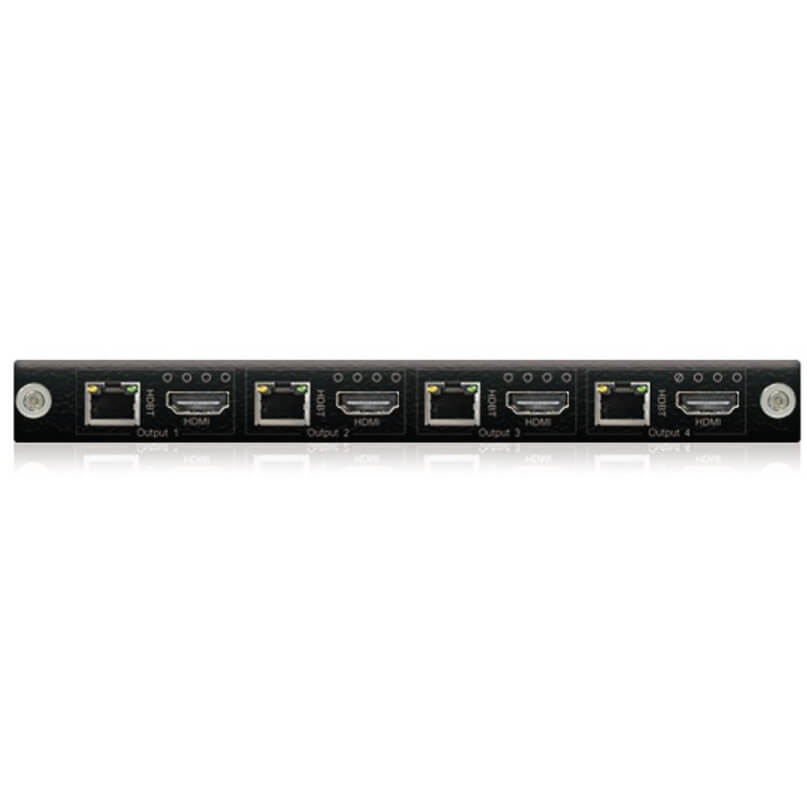

Blustream PRO-OUT4TLS Custom Pro 4K – Output Board


Out of stock

  • Video Output Connectors: 4x HDMI Type A, 19-pin, female, 4x HDBaseT? RJ45 connector
  • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32 F to 104 F (0 C to 40 C)
  • Storage Temperature: -4 F to 140 F (-20 C to 60 C)


The PRO-OUT4TLS output board offers 4x dual HDMI / HDBaseT outputs for connection to an HDBaseT receiver and HDMI display per zone. The PRO-OUT4TLS also features quick-release card module fittings allowing simple installation into the Custom Pro Matrix hub.


Advanced HDBase technology offering uncompressed video and audio with zero latency

Features 4x simultaneous HDMI / HDBaseT outputs for connection to HDMI displays / AVRs and compatible Blustream HDBaseT receivers

Extends 1080p HDMI up to a distance of 70m over a single CAT cable

Supports 4K UHD video up to 40m (3840 x 2160 30Hz 4:4:4, 4096 x 2160 24Hz 4:4:4, and 4K 60Hz 4:2:0)

Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission

Quick-release card module fittings allow simple population of input and output cards in the Custom Pro Matrix Hub

HDCP 2.2 compliant

To be used with the HEX70B-RX or HEX70ED-RX receivers
