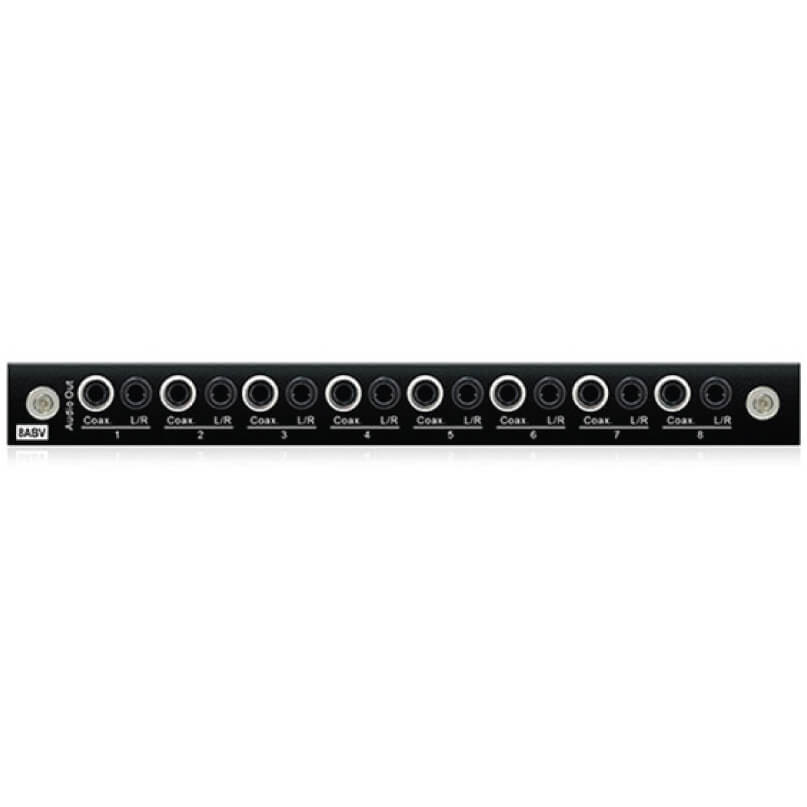

Blustream PRO-8ABV 8 Dual Output Audio Breakout Board


The PRO-8ABV audio breakout board offers 8x simultaneous coaxial digital and variable line-level analog L/R audio outputs and features.
  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm
  • Shipping Weight: 0.5kg
  • Storage Temperature : -4?F to 140?F (-20?C to 60?C)


  • Features 8x HDMI audio breakouts from corresponding video zone output to coaxial digital and analog L/R audio outputs
  • Analog audio outputs include variable line-level control (supports 2ch PCM)
  • Quick-release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub


  • The PRO-8ABV?features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
SKU: PRO-8ABV Category:

  • Audio Output Connectors: 8x RCA (SPDIF), 8x Analogue Left/Right audio (3.5mm stereo jack)
  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
