Blustream PLA66ARC-V2 6×6 HDBaseT? AV Matrix


Out of stock

6×6 HDBaseT? AV Matrix – 100m (4K up to 70m), Bi-directional IR & RS-232, PoH (PoE), Simultaneous HDBaseT? / HDMI Outputs, 1 HDBaseT? Input, Independent Audio Matrix, ARC enabled, Line Level Volume Control, LAN serving, HDCP 2.2 & Web GUI.
  • Features 6x HDMI inputs
  • Supports ARC (Audio Return Channel)
  • Supports all known HDMI audio


Out of stock

  • Our Platinum 6×6 HDBaseT? Matrix delivers a range of industry-leading features.
  • The PLA66ARC is a 4K HDCP 2.2 compliant 6×6 matrix, transmitting HDMI, Bi-directional IR, and PoH (PoE) up to lengths of 100m over a single CAT cable.
  • ?The matrix also provides advanced features including independent audio routing, Audio Return Channel (ARC), simultaneous HDBaseT?/HDMI outputs, 1 HDBaseT? input, RS-232 pass through to enable seamless 3rd party control integration, and web interface module for control and configuration of the matrix.
  • ?The matrix can be configured using the Blustream Software, allowing the user to define audio channels, designate EDID presets, and insert audio delays on outputs to correct any lip-sync issues within the system.
SKU: PLA66ARC-V2 Category:

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Features 6x HDMI inputs which can be independently routed simultaneously to 6x HDBaseT™ + HDMI outputs
  • Extends HDMI up to distance of 100m 1080P and 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Input 1 supports Dual HDBaseT™ & HDMI to enable the integration of remote HDMI sources up to 100m distance (4K up to 70m)
  • Up to 18×12 Audio Matrix independently controllable from the video:-
  1. – 6x independent analog L/R audio inputs which can be routed to audio outputs or embedded onto HDBaseT™ / HDMI outputs
  2. – HDMI audio breakout to Coaxial digital and analog L/R audio outputs with variable pre-amp line level control
  3. – Supports ARC (Audio Return Channel) via HDMI or Optical digital inputs from compatible HEX100ARC-RX receivers.
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission
  • Bi-directional IR & RS-232 from all input and output locations (with compatible transmitters & receivers)

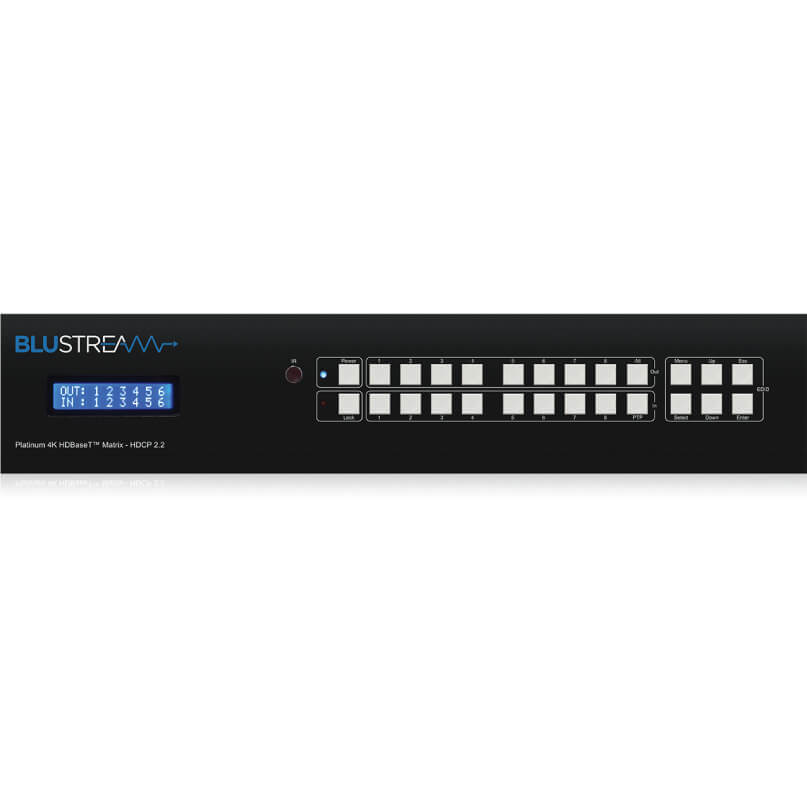

  • Control of Matrix via front panel, IR, RS-232, TCP/IP, and web interface module
  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ transmitters & receivers
  • 3rd Party drivers available for all major home control brands
  • HDCP 2.2 compliant with advanced EDID management
  • 2U Design for 19” rack mount integration – mounting kit included
