Blustream MX42AB 4×2 4K HDMI Matrix


Out of stock

Our MX42AB 4K HDMI matrix individually distributes four HDMI sources to two displays enabling all sources to be viewed seamlessly as required within a matrix configuration.

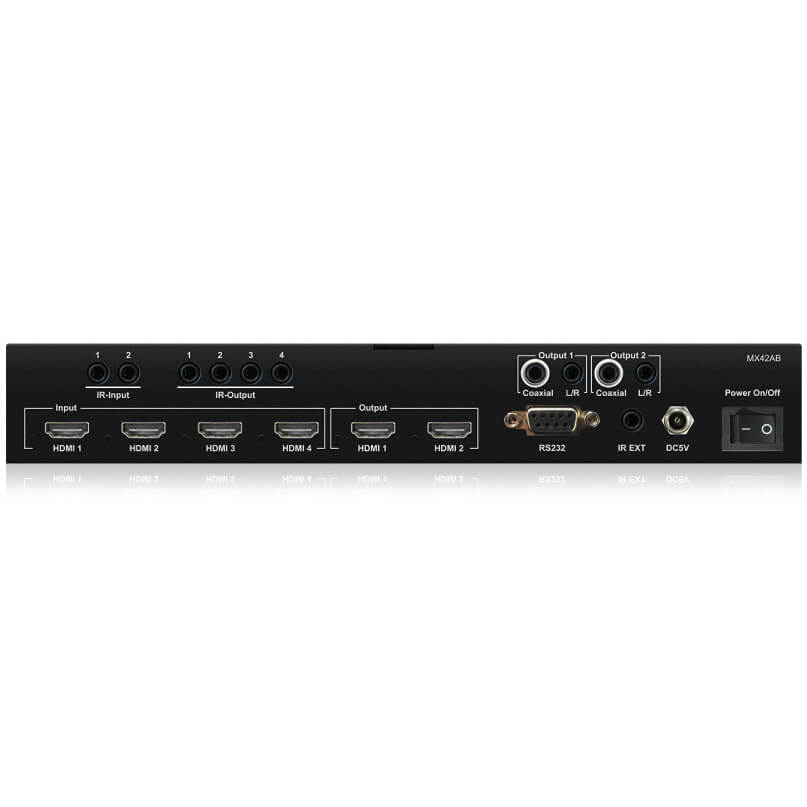

  • Video Connectors
  • Audio Connectors
  • IR Port
  • Power Supply
  • HDCP compliant


Out of stock

  • The unit transmits all HDMI resolutions up to and including 4K.
  • The 4-input matrix also includes the advanced features of an audio breakout, RS-232 control, and EDID management.

Key Features?

  • Features 4x HDMI inputs which can be independently routed to both HDMI outputs
  • Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports 3D signal display
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission
  • HDMI audio breakout to associated output analog L/R audio and Coaxial digital outputs concurrently
  • Routed IR
  • Supplied with Blustream IR receivers and emitters

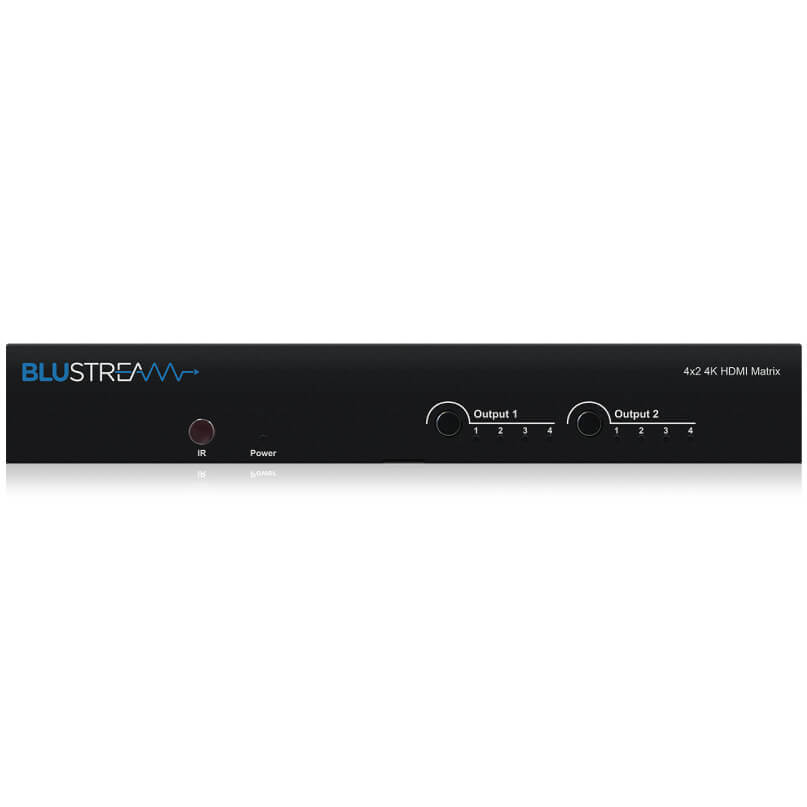

  • Control via front panel, IR, and RS-232
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
SKU: HEX31WP-TX Category:
