Blustream CMX42AB 4×2 4K HDMI Matrix
Our MX42AB 4K HDMI matrix individually distributes four HDMI sources to two displays enabling all sources to be viewed seamlessly as required within a matrix configuration.
- Video Connectors
- Audio Connectors
- IR Port
- Power Supply
- HDCP compliant
$649
- The unit transmits all HDMI resolutions up to and including 4K.
- The 4-input matrix also includes the advanced features of an audio breakout, RS-232 control, and EDID management.
Key Features
- Features 4x HDMI inputs which can be independently routed to both HDMI outputs
- Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports 3D signal display
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission
- HDMI audio breakout to associated output analog L/R audio and Coaxial digital outputs concurrently
- Routed IR
- Supplied with Blustream IR receivers and emitters

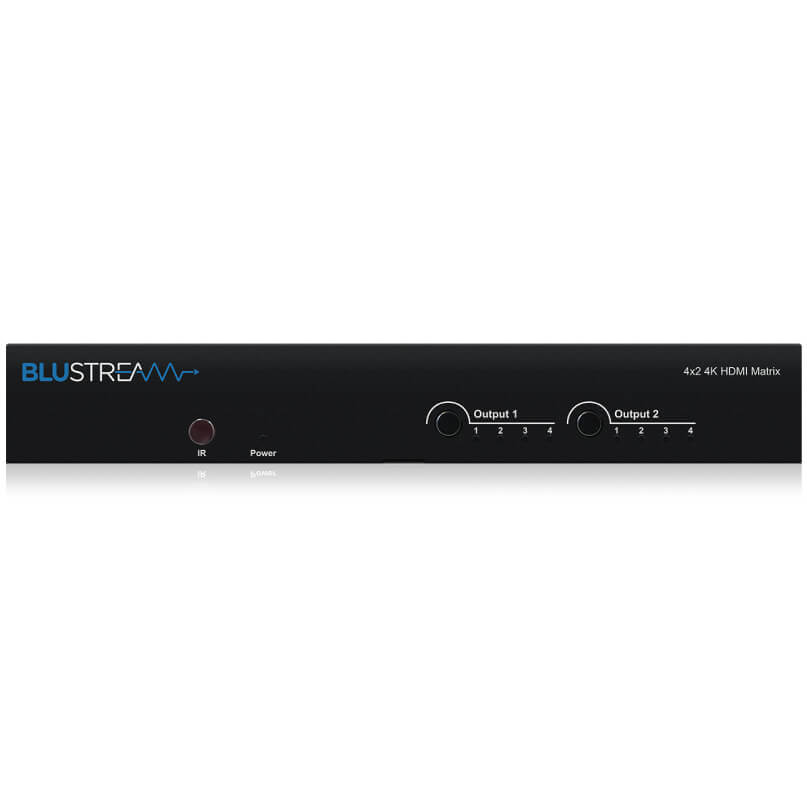

- Control via front panel, IR, and RS-232
- 3rd Party drivers available for all major home control brands
- Advanced EDID management
| Brand |
|---|
Specifications

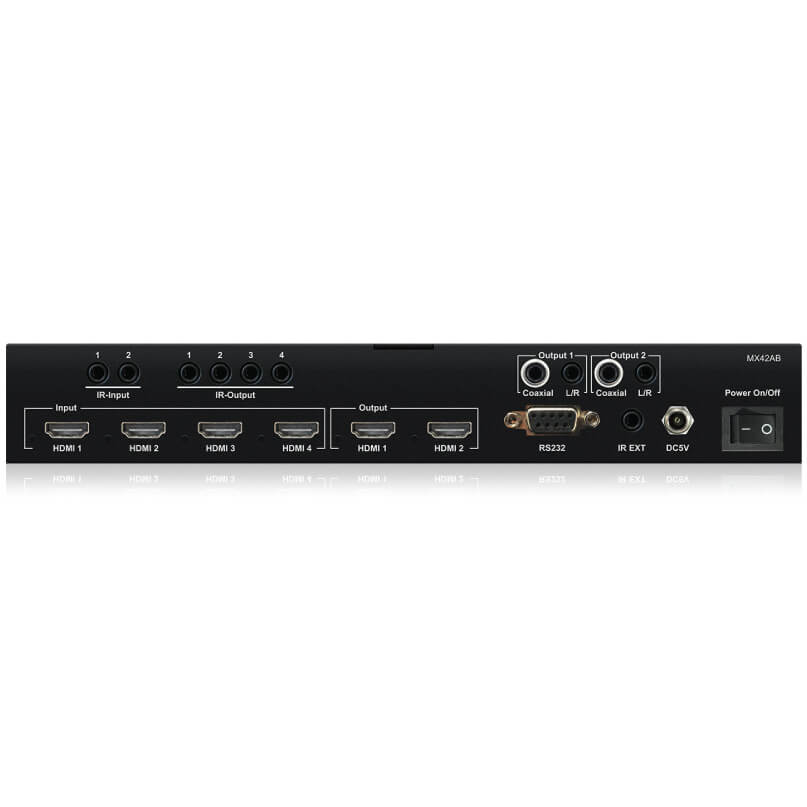

- Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking
- Video Output Connectors: 2x HDMI Type A, 19-pin, female, locking
- Audio Output Connectors: 2x RCA (SPDIF), 2x Audio 3.5mm stereo jack
- RS-232 serial port: DB-9, female
- IR Input ports: 3x 3.5mm stereo jack
- IR Output ports: 4x 3.5mm mono jack
- Product Dimensions (WxDxH): 200 x 115 x 50mm (with feet & connections)
- Product Dimensions (WxDxH): 260 x 105 x 40mm (without feet & connections)
- Product Weight: 0.8kg (excluding accessories)
- Carton / Box Dimensions (WxDxH): 340 x 205 x 120mm
- Shipping Weight: 1.5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V / 1A DC, screw type connector
Box Contents
- 1x MX42AB
- 1x 5V / 1A DC power supply
- 1x Remote control
- 1x User manual
