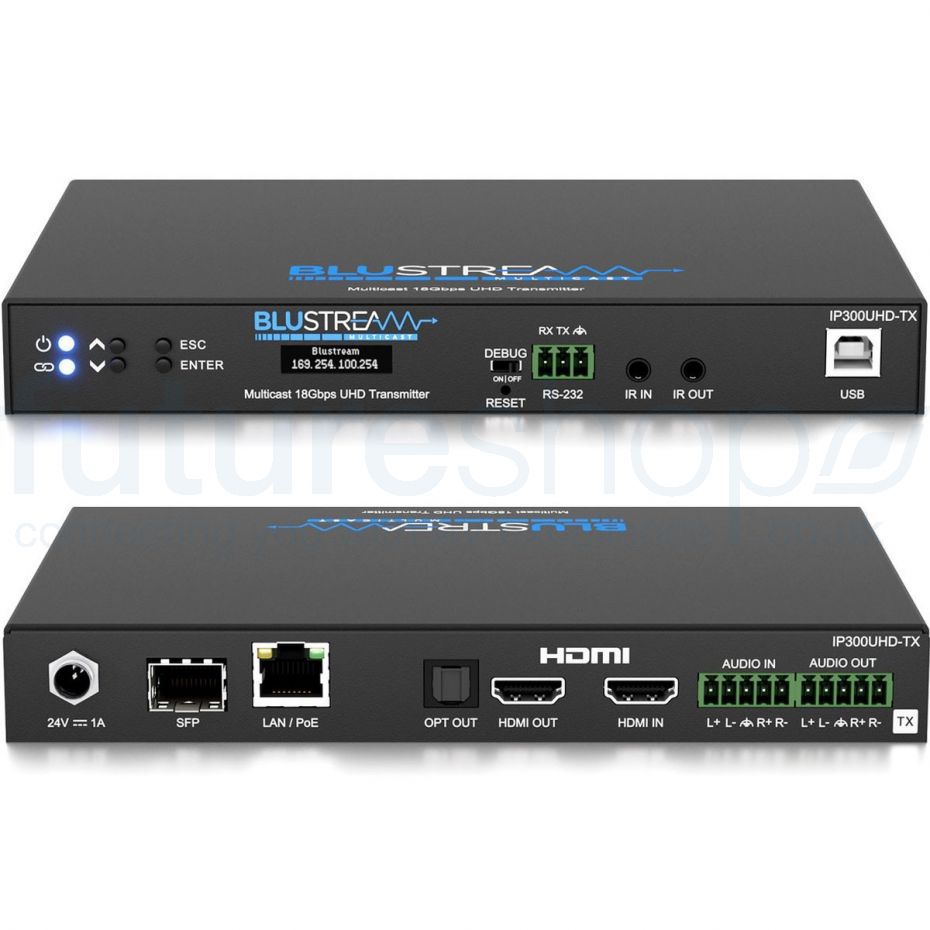

Blustream IP300UHD-TX
The Blustream IP300UHD-TX is a high-performance 4K HDMI 2.0 transmitter designed for professional AV over IP applications. Utilizing visually lossless compression, it delivers 18Gbps HDMI signals with virtually zero latency over a 1Gb managed network. The device supports HDR formats, including Dolby Vision, and offers flexible connectivity options with both copper and fiber interfaces. Additional features include HDMI loop-out, bi-directional IR, RS-232, USB/KVM, and PoE support, making it ideal for scalable, low-latency AV installations.
$1,399
The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K 18Gbps HDMI video over a 1Gb managed network. Featuring full interoperability with the IP350UHD product line where Dante is required, the IP300UHD-TX is an industry leading 4K HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, HDCP2.2, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface. The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.
Â
Â
P.S. Its blustream not bluestream. Most of the people misspells it.Â
| Weight | 200 g |
|---|---|
| Dimensions | 150 × 50 × 180 mm |
| Brands |
• Video Input: 1 x HDMI Type A, female
• Video Output: 1 x LAN RJ45 connector, 1 x SFP connector, 1 x HDMI Type A, female
• Audio Input: 1 x 5-pin Phoenix connector
• Audio Output: 1 x 5-pin Phoenix connector, 1 x Optical (S/PDIF)
• Ethernet Port: 1 x LAN RJ45 connector
• Fiber Port: 1 x SFP connector (fiber module not supplied)
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector
• USB/KVM Port: 1 x USB2.0-type B for KVM
• IR Input: 1 x 3.5mm stereo jack
• IR Output: 1 x 3.5mm mono jack
• Dimensions (W x D x H): 190mm x 128mm x 25mm
• Packaging Dimensions (W x D x H): 260mm x 180mm x 55m
• Unit Weight: 0.75kg
• Power Consumption: 8W (max)
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSU
