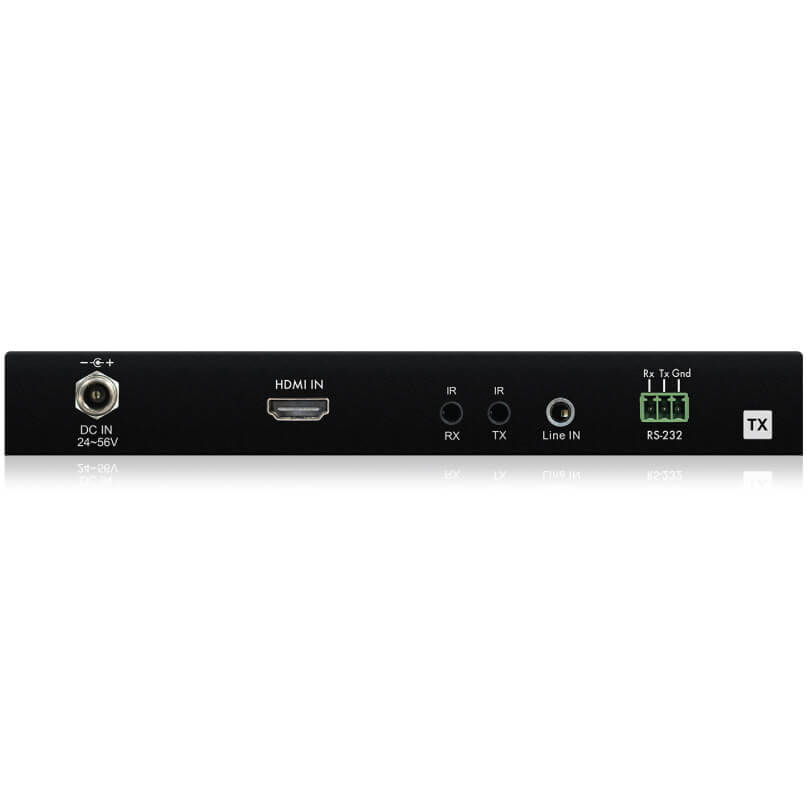

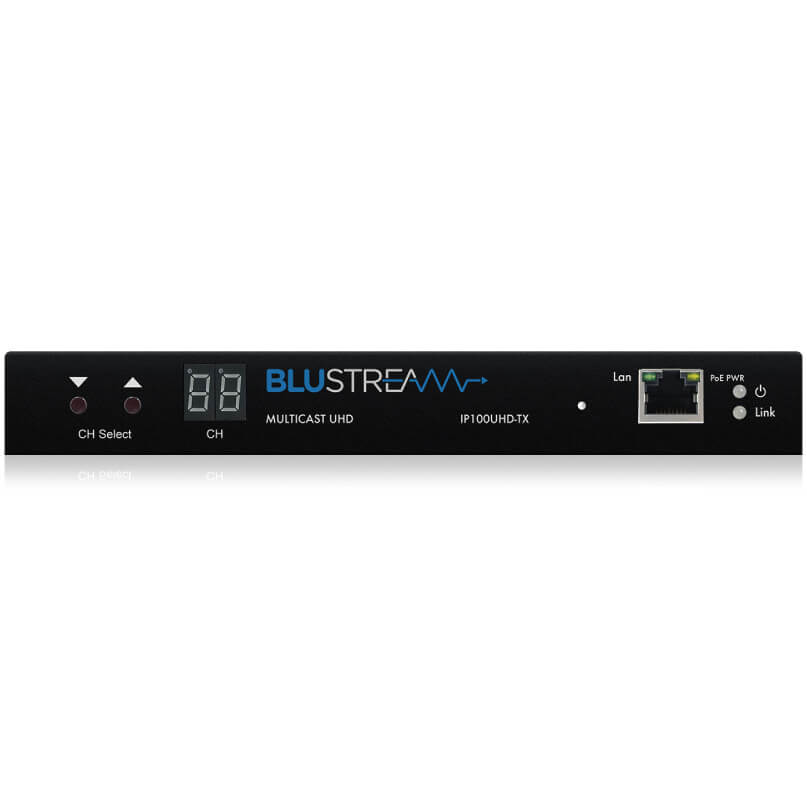

Blustream IP100UHD-TX UHD Video Transmitter


Out of stock

IP Multicast UHD Video Transmitter over 1GB Network, Bi-directional IR & RS-232, PoE, Analogue Audio Embedding, and HDCP 2.2.
  • Virtually unlimited system size
  • Analogue L/R audio embedding
  • Supports up to 4K UHD video


  • Matrix distribution (requires 1GB network switch)
  • Video wall (requires 1GB network switch)
  • One-to-one HDMI extender (no network switch required)
  • One-to-many HDMI extender (no network switch required)

  • Our UHD Multicast distribution platform allows virtually latency-free (1 frame) distribution of HDMI video over a 1GB Network switch.
  • The IP100UHD-TX is an industry-leading 4K HDCP 2.2 HDMI transmitter that using visually lossless compression technology delivers HDMI, Bi-directional IR, and RS-232 up to lengths of 100m over standard network architecture.
  • The IP100UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE.
  • With multiple?configuration options available the Multicast solution is ideal for both commercial and residential installations.
SKU: IP100UHD-TX Category:

  • Advanced UHD video over 1GB Network (compatible with most common brands of layer 3 managed network switches)
  • Virtually unlimited system size
  • Extends HDMI up to a distance of 100m over the standard network architecture
  • Supports up to 4K UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
  • PoE (Power over Ethernet) to power Blustream products from PoE switch
  • HDCP 2.2 compliant with advanced EDID management
  • Analogue L/R audio embedding
  • Bi-directional RS-232 and IR pass-through
  • Local 24-56V power supply (should Ethernet switch not support PoE)
