Blustream HSP14CS 4-Way 4K HDBaseT? Splitter with Smart Scale Technology – 70m


  • Advanced HDBaseT? technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Features 1 x HDMI input that is replicated to 4 x HDBaseT? outputs
  • Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission
  • HDMI audio breakout to both analog L/R audio and coaxial digital outputs concurrently


Our HSP14CS 4K HDBaseT? CSC splitter distributes a single HDMI 2.0 4K 60Hz 4:4:4 source to four simultaneous HDBaseT? outputs with independent down-scaling of 4K video inputs to allow those displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays. It transmits HDMI, Bi-directional IR, and PoH (PoE) up to lengths of 70m (40m 4K 60Hz 4:4:4) over a single CAT cable. The 4-Way splitter also features audio breakout, EDID management, and HDMI loop-out for integrating local displays or cascading to multiple devices.

SKU: HSP14CS Category:

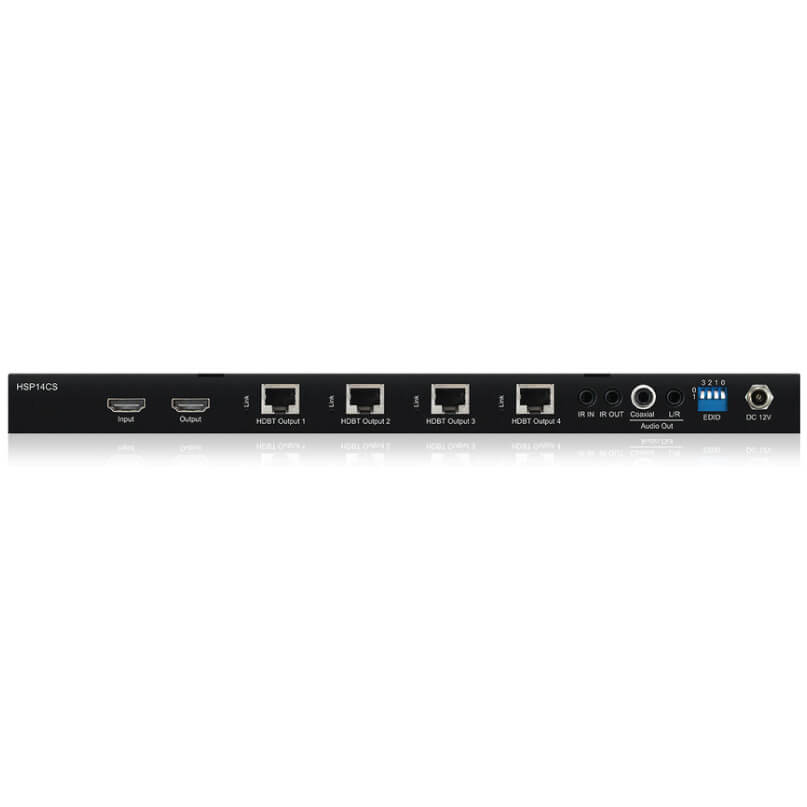

Video Input Connectors: 1 x HDMI Type A, 19-pin, female

Video Output Connectors: 4 x HDBaseT™ RJ45, 1 x HDMI Type A, 19-pin, female

Audio Output Connectors: 1 x RCA (S/PDIF), 1 x 3.5mm stereo jack (L/R)

EDID: 4-PIn DIP switch

IR Input ports: 1 x 3.5mm stereo jack

IR Output ports: 1 x 3.5mm mono jack

Mounting kit included

Casing Dimensions (W x D x H): 307mm x 144mm x 23mm

Dimensions Including Connections (W x D x H): 307mm x 152mm x 31mm

Shipping Weight: 1.1kg

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Power Supply: 12V/5A DC
