Blustream HMXL44CS-KIT 4×4 HDBaseT CSC Matrix Kit – 70m

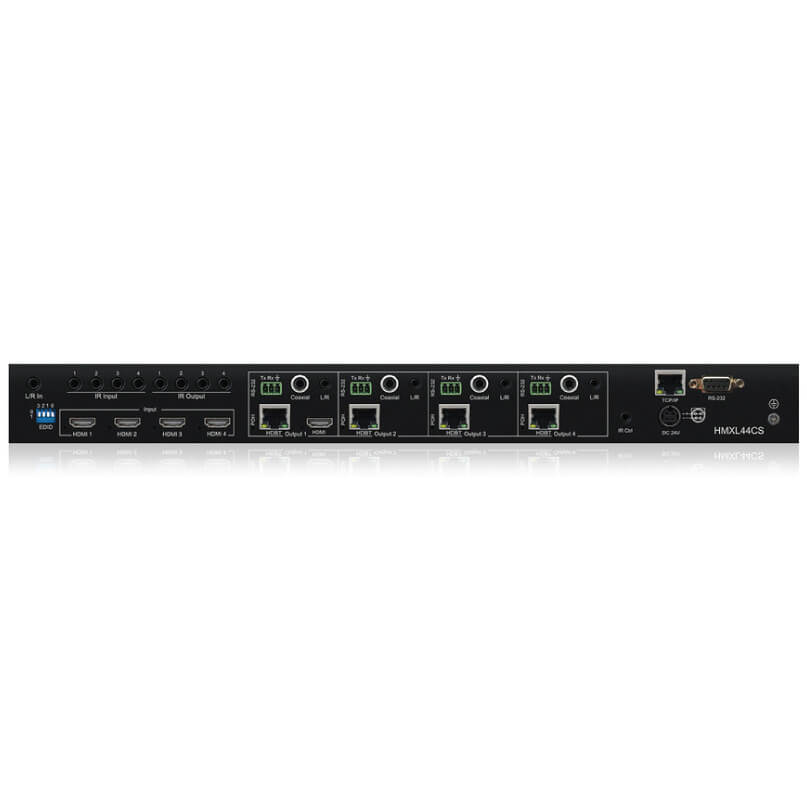

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT? RJ45 connector
  • Audio Output Connectors: 4 x 3.5mm stereo jack, 4 x RCA Coaxial Digital
  • Audio Input Connectors: 1 x 3.5mm stereo jack
  • RS-232 serial port: 1 x DB-9, female, 4 x 3-pin Phoenix sockets for each zone (DB9 serial to Phoenix connector cables supplied)
  • TCP/IP Control: 1 x RJ45, female
  • IR Input ports: 5 x 3.5mm stereo jack
  • IR Output ports: 4 x 3.5mm mono jack
  • Unit Dimensions (W x D x H): 440mm x 245mm x 52mm (with feet & connections)
  • Unit Weight: 2.98kg


Our Essential 4×4 HDBaseT? Matrix offers unprecedented performance and value for the custom installation market. The HMXL44CS-KIT is an HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix package utilizing CSC technology to deliver HDMI, Bi-directional IR, RS-232, and PoH (PoE) up to lengths of 70m over a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT?/HDMI on output 1, video down conversion on HDBaseT? output 1, audio breakout with pre-amp variable line-level control, and a web browser interface module for control and configuration of the matrix. The HMXL44CS-KIT is supplied with 4 x HEX70CS-RX Receivers.


Advanced HDBaseT? technology offering distribution of video and audio over a single CAT cable

Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT? outputs

Output 1 features simultaneous HDMI and HDBaseT? output

Video down-conversion on HDBaseT? output 1 allows for a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs

Supports 4K 60Hz 4:4:4 UHD video up to 40m

Extends HDMI 1080p video up to 70m

Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

HDMI re-clocking on the HEX70CS-RX HDBaseT? Receivers to help solve HDMI HDCP, compatibility, and handshaking issues

Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions

Analogue (L/R) audio input can be embedded onto any combination of HDMI inputs concurrently

Web interface module for control and configuration of the Matrix

Supports bi-directional IR and RS-232 on all HDBaseT? outputs

Supplied with Blustream IR receivers and emitters

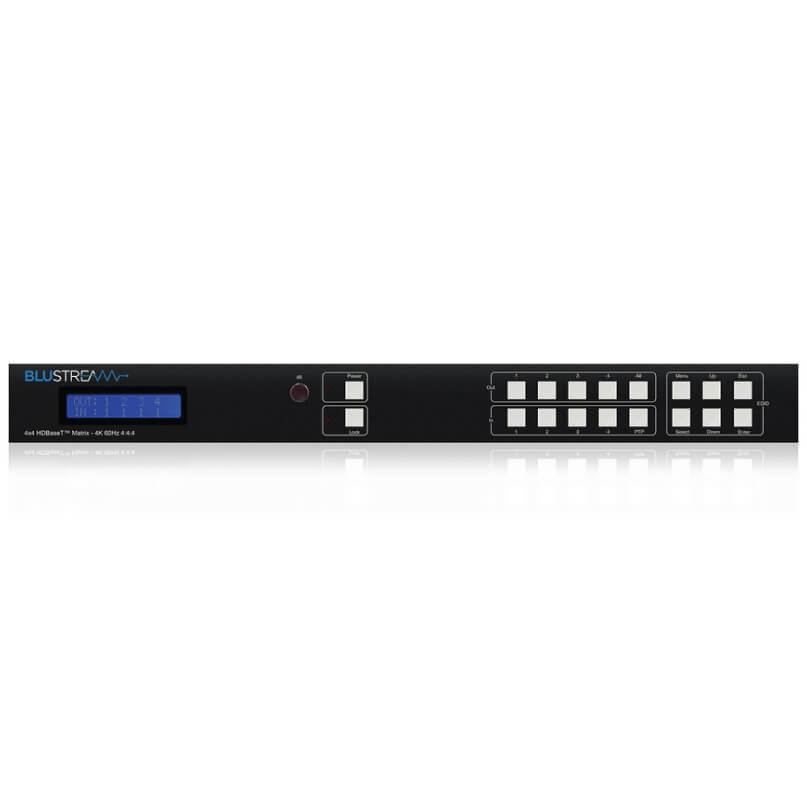

Control via front panel, IR, RS-232, and TCP/IP

Supports PoH (Power over HDBaseT?) to power supplied HDBaseT? receivers

3rd Party drivers available for all major home control brands

1U Design for 19″ rack mount integration – mounting kit included

Advanced EDID management

HDCP 2.2 compliant

SKU: HMXL44CS-KIT Category:
