Blustream HEX70ED-RX HDBaseT Receiver


Out of stock

Our HEX70ED-RX 4K UHD HDBaseT? receiver offers market-leading features and outstanding value.
  • Video Connectors
  • IR Port
  • HDCP compliant
  • Power Consumption:
  • Mounting kit

The product receives HDMI, RS-232, Bi-directional IR, and Bi-directional PoH (PoE) up to lengths of 70m.


Key Features

  • Receives an HDBaseT? signal from a compatible HDBaseT? transmitter from a distance of up to 70m over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission
  • Supports bi-directional PoH (Power over HDBaseT?) to power receiver from compatible Blustream Matrix or Transmitter
  • Supports bi-directional RS-232 pass-through
  • Supports bi-directional IR from all input and output locations
  • HDCP compliant
SKU: HEX70ED-RX Category:

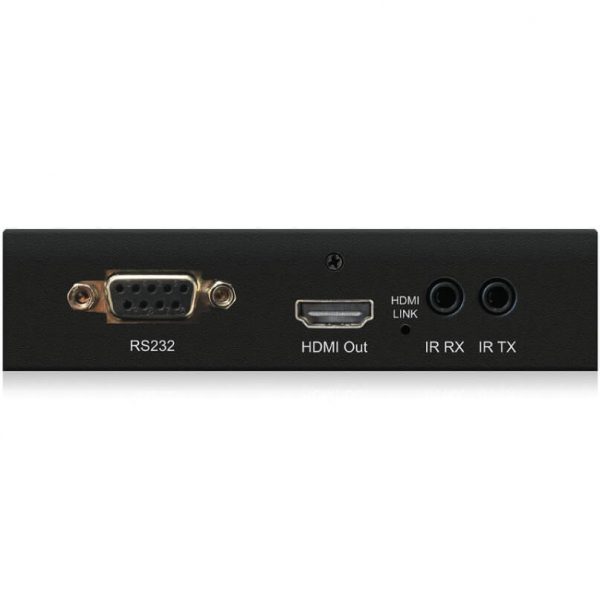

  • Video input: 1x HDBaseT™ RJ45 connector
  • Video output: 1x HDMI Type A, 19-pin, female
  • IR Input Ports: 1x 3.5mm stereo jack
  • IR Output Ports: 1x 3.5mm mono jack
  • RS-232 Serial Port: 1x DB-9 female
  • Power Consumption: 9.5W
  • Power supplied from compatible Blustream Matrix or Transmitter
  • Balun Dimensions (WxDxH): 110 x 115 x 26mm (with connections)
  • Balun Dimensions (WxDxH): 110 x 110 x 26mm (without connections)
  • Ind. Balun Weight: 0.35kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): 190 x 160 x 45mm
  • Shipping Weight: 0.45kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting kit included

Box Contents

  • 1x HEX70ED-RX
  • 1x Mounting brackets
