Blustream HEX70CS-RX HDBaseT? CSC Receiver


Our HEX70CS-RX HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT? Receiver offers market-leading features and outstanding value utilizing CSC technology.
  • IR Output ports: 1x 3.5mm mono jack
  • Power Consumption: 5.6W
  • Shipping Weight: 0.5kg


  • The product extends HDMI, Bi-directional IR & RS-232, and Bi-directional PoH (PoE) up to lengths of 70m (4K 40m).
  • The Receiver features simultaneous analog stereo and digital coax audio breakout.


  • Advanced HDBaseT? technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Supports 4K60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions
  • HDMI re-clocking to help solve HDMI HDCP, compatibility, and handshaking issues
  • HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently
  • Supports bi-directional RS-232 pass-through
  • Supports bi-directional IR pass-through
  • Advanced EDID management
  • HDCP2.2 compliant
SKU: HEX70CS-RX Category:

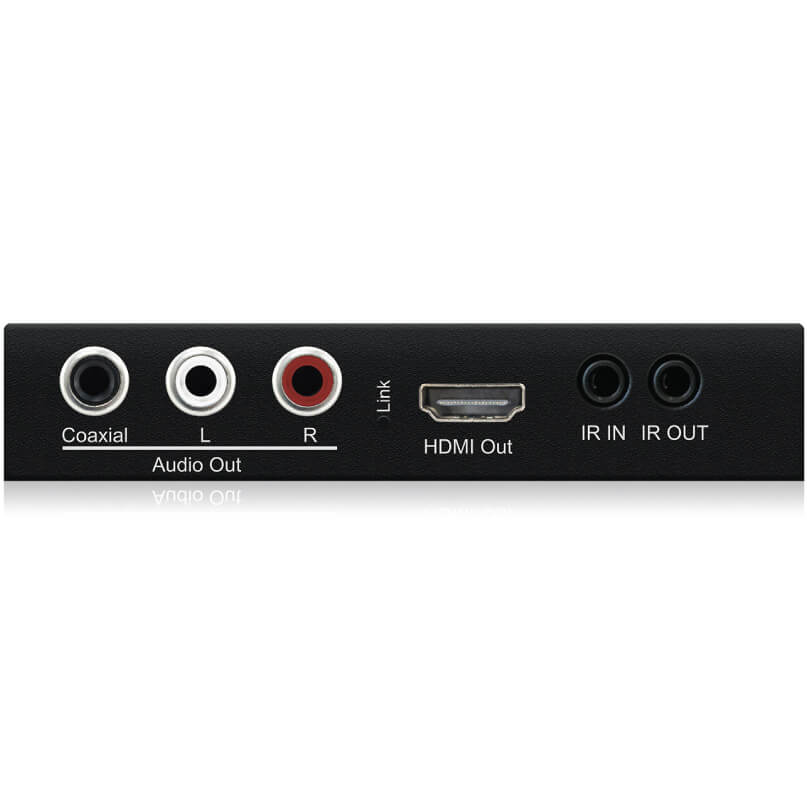

  • Audio Output Connectors: 1x RCA (SPDIF) & 2x Analogue RCA (Left/Right)
  • IR Output ports: 1x 3.5mm mono jack
  • IR Input ports: 1x 3.5mm stereo jack

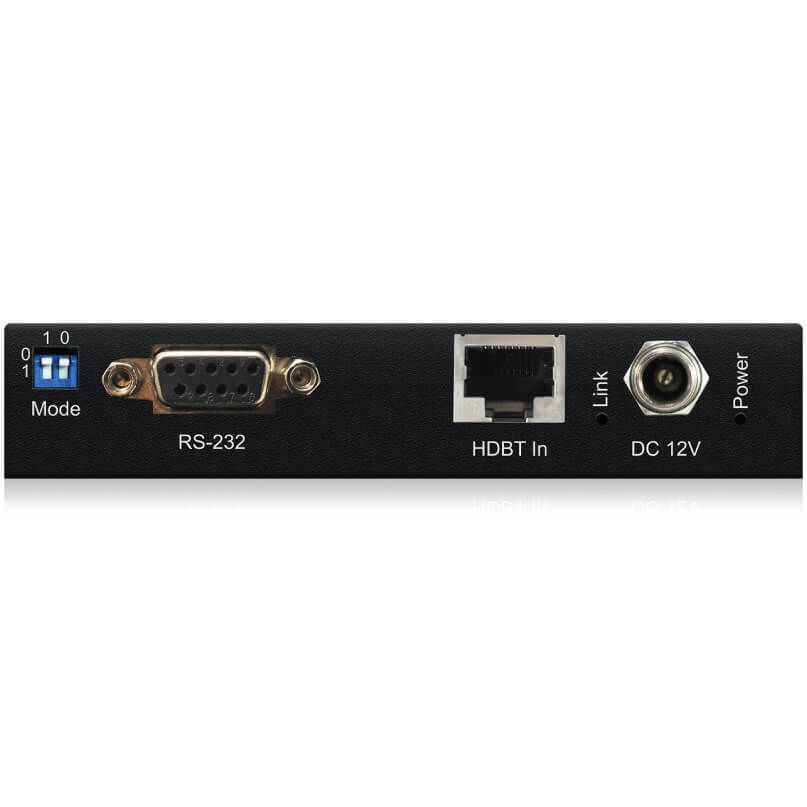

  • RS-232 serial port: 1x DB-9 female
  • Video Output Connectors: 1x HDMI Type A, female
  • Video Input Connectors: 1x HDBaseT™ RJ45 connector
  • Power Supply: 12V / 2A DC, screw type connector (not supplied)
  • Power Consumption: 5.6W
  • Unit Dimensions (WxDxH): 113 x 124 x 22mm (without connections)
  • Unit Dimensions (WxDxH): 113 x 138 x 22mm (with connections)
  • Unit Weight: 0.35kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): TBCmm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting kit included
