Blustream HEX100CS-KIT HDBaseT CSC Extender Kit – 100m


  • Advanced HDBaseT? technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Supports 4K 60Hz 4:4:4 UHD video up to 70m
  • Extends HDMI 1080p video up to 100m
  • Features 1 x HDMI loop-out on HEX100CS-TX for integrating local displays or cascading to multiple devices
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions

$1,149.00

Our HEX100CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT? extender set offers market-leading features and outstanding value utilizing CSC technology with the video down conversion.

The product extends HDMI, Bi-directional IR & RS-232, and Bi-directional PoH (PoE) up to lengths of 100m (4K to 70m). The Transmitter includes an HDMI loop-out for integrating local displays or cascading to multiple devices. The Receiver features simultaneous analog stereo and digital coax audio breakout.

SKU: HEX100CS-KIT Category:
Brand

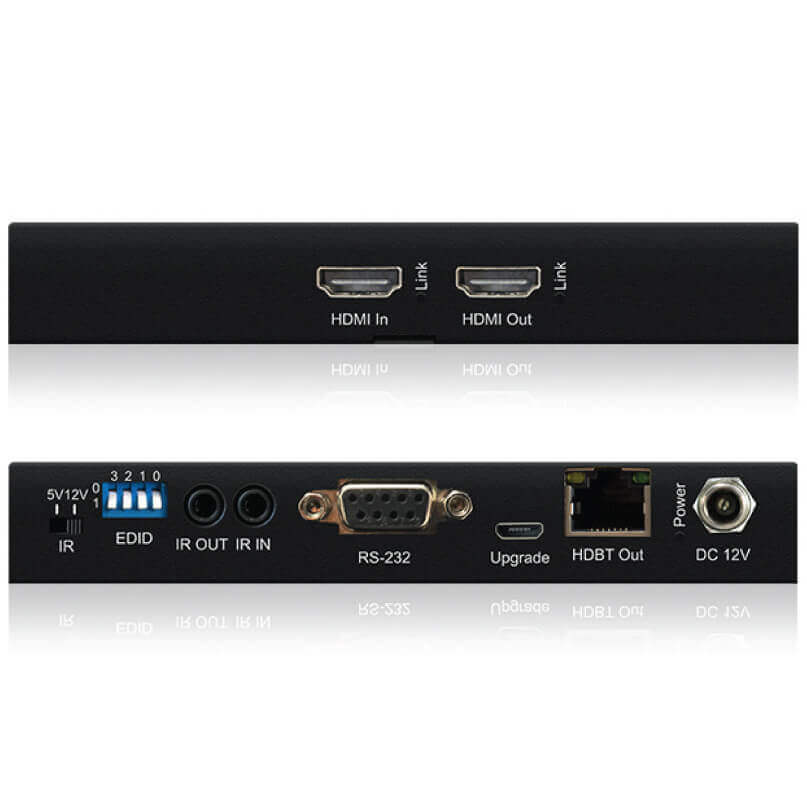

HEX100CS-TX Transmitter
– Video Input Connectors: 1 x HDMI Type A, female
– Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female
– RS-232 serial port: 1 x DB-9 female
– IR Input ports: 1 x 3.5mm stereo jack
– IR Output ports: 1 x 3.5mm mono jack
– EDID DIP switch: 4-pin

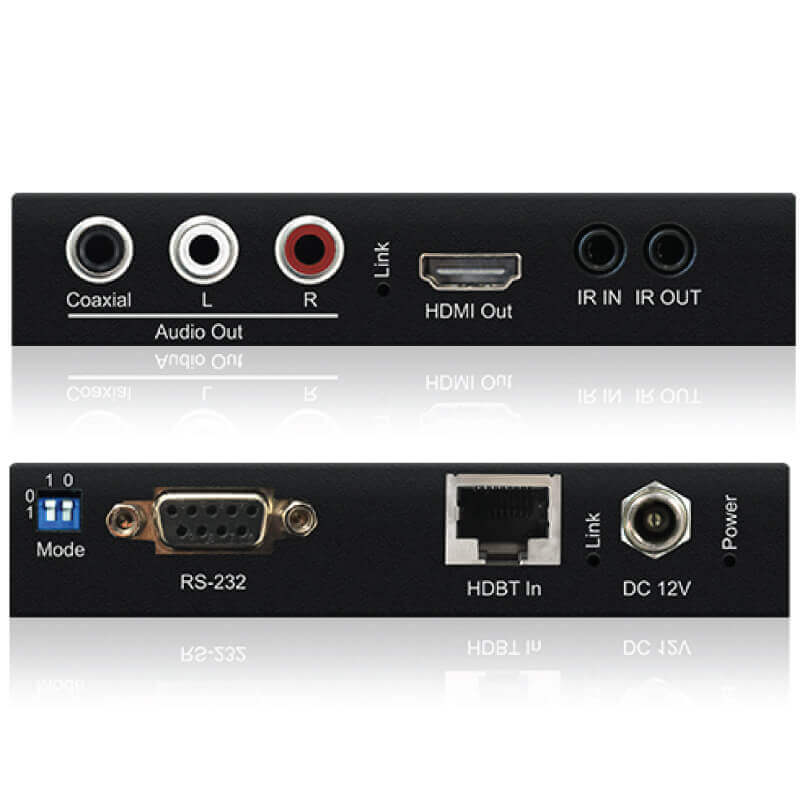

HEX100CS-RX Receiver
– Video Input Connectors: 1 x HDBaseT™ RJ45 connector
– Video Output Connectors: 1 x HDMI Type A, female
– RS-232 serial port: 1 x DB-9 female
– IR Input ports: 1 x 3.5mm stereo jack
– IR Output ports: 1 x 3.5mm mono jack
– Audio Output Connectors: 1 x RCA (SPDIF) & 2 x Analogue RCA (Left / Right)

Power Supply: 12V/2A DC, screw type connector

Power Consumption: 12.7W

Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)

Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)

Receiver Dimensions (W x D x H): 113 x 124 x 22mm (without connections)

Receiver Dimensions (W x D x H): 113 x 138 x 22mm (with connections)

Ind. Extender Weight: 0.35kg (excluding accessories)

Shipping Weight: 1.4kg

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)
